Repair laptop/desktop/xbox/psp motherboard ETA-5830 bga rework station
Features introduce
>3 independent control heaters
1. top and bottom heaters are hot-air heating, the third IR preheating area(350x220mm) is infrared heating, temperature accuracy within ±3℃, the top and bottom heaters can set 8 segments rising temperature and 8 segments activity temperature, it can save 100 groups temperature curves for different BGA chips.
2. the top and bottom heaters can heat PCB from upper and bottom side. And the third IR heater can preheat the PCB board, to avoid PCB from deformation during repair process. The top and bottom heater heat independently;
3. the IR power consumptions of the third IR heater can be adjusted, make PCB board heating evenly, to avoid from deformation;
>multi-functional hommization system
1. Adopt human-machine interface, High-precision K-type thermocouple with close-loop control, automatic temperature compensation system, precise temperature control, the temperature shown on the touch screen, top heater can be moved freely;
2.Adopted all kinds of BGA nozzles, with 360° rotation, easy for installation and replacement, customized is available;
3. There is BGA soldering support shelf to support PCB board;
4.Multi~functional PCB support shelf, can be moved along X axis,with rapid and easy PCB board positioning ,
suitable for all kind of PCB position;
5.powerful cross~flow fan cool the PCB board fast after desoldering and soldering, it can prevent the PCB board from deformation; with vacuum pump and external vacuum suction pen to pick up the chips conveniently.
>Superior safety functions
With CE certification; after desoldering and soldering, there is alarming. when temperature goes out of control;the circuit will automatically power off, it is of double over~temperature protection function. Temperature parameter has a password to avoid fom arbitrary changes, with superior safe protection functions, it can protect PCB board’s components and the machine from damage at any abnormal situation.
Specifications and technical parameters
>power:AC220V±10% 50/60Hz
>Total Power:Max 4500 W
>Heater power:top heater 800 W bottom heater 1200 W IR heater 2400 W
>Electrical materials: Touch screen+PLC Temperature module
>Temperature control: K-type thermocouple (Closed Loop), temperature accuracy within ±3℃
>Positioning: V-groove, PCB support
>PCB size: Max 350×330 mm Min 50×50 mm
>Dimensions:L540×W590×H640 mm
>Weight: 30 kg
ETA is the leading SMT factory solution provider in China,offering professional SMT factory building advice and service.We have 20 year experience about SMT factories,offering full solutions for global clients with our great advantaged sources.Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development. Currently ETA SMT equipment is representative of high quality , has maintained absolute leading technology in the industry.
Over the years the company has been committed to improving technology, quality and perfect service. ETA makes a positive contribution to international standard,the annual total capacity of 1200 sets, passed the ISO9001: 2000, ISO14000, CE, UL, RoHS and other certifications. Full implementation of the IPD process, reliable design and testing throughout the entire product life cycle.ETA’s continued investment in research and development and great contribution has been unanimously recognized in the field. By the end of 2012, ETA has declared more than 30 patents and software copyrights (including four invention patents), and actively involved in a number of national and industry standards. ETA provides more advanced products and fast technical support for global customers, at home and abroad.
Click picture to get more products and information

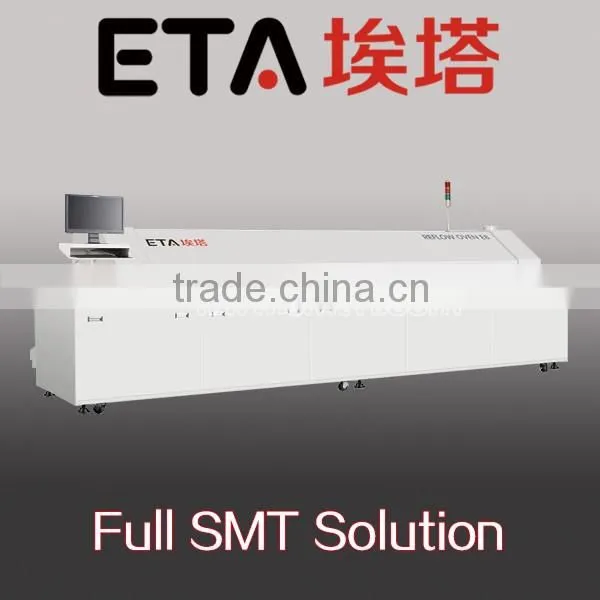

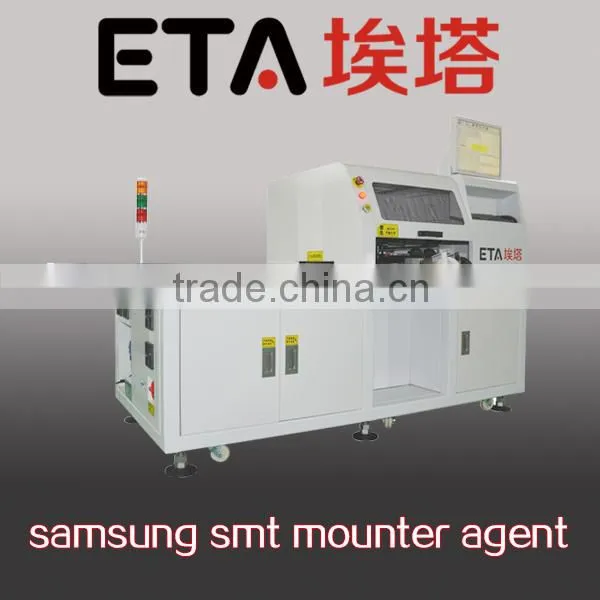

Chip Mounter Reflow oven Semi-auto printer Full-auto printer
Wave soldering machine gule dispensing machine BGA rework station Dip assembly line
After-sales service:
1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production
4. Technical Training: provides professional training from Level 1 to Level 3
5.Technical support:provides 7 * 24 technical support
6.Software Upgrade: offers lifetime free software upgrades for all products
