Product Description

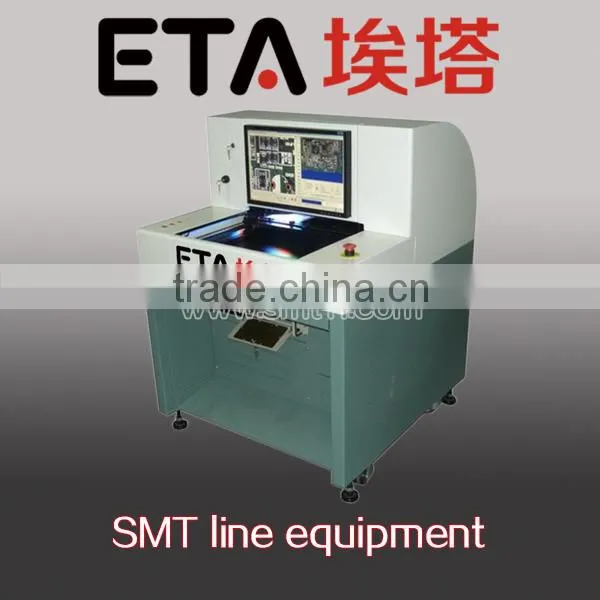

ON-LINE AOI system

Features:
5 Million Pixels Full Color CCD Camera, Meet the Test Needs of 01005 Components, and Also Achieve Higher Inspecting Speed.
Stroboscopic Ring Pagoda RGBW Four Color Ring Light Source.
With Analysis of Error Distribution, DPPM Change and Confirmation of NG Point Functions.
Automatic Generates the Statistical Analysis and Data Reports, Enable the Factory Manager to Get the Process Information at Real Time and Guarantee their Products' Quality.
Have a More Accurate and Comprehensive Feature Extraction Method, Achieved a Higher Detection Rate and Lower False Alarm more stable.

Electronic SMT PCB Assembly with AOI Test

Specification:

Programming mode Automatic writing, manual writing, CAD data import, automatic mapping component library
Detection mode Cover the entire circuit board to optimize detection. Panel form and multi-mark with bad mark function
Test type Solder paste printing coverage, offset printing, open solder, short solder, presence/absence component, offset placement, skew, tombstone, wrong component, black pad contamination, solder pad chipout.
Image recognition Depending on the detection point automatically set its parameters (such as offset, polarity, short circuit, etc.)
SPC statistical function the whole record test data and statistics and analysis of any region can view the production status and quality analysis.
PCB size 50*50mm (Min)-400*400mm (Max), can be customized larger
PCB bending
PCB components height Top side: <30mm; Bottom side: <60mm
PCB transmission Bottom-up fixed, automatic compensation function of the PCB pin deformation, auto-load and unload, automatically adjust the width of the range
X, Y accuracy <10um
Speed 800mm/sec(Max)
Image processing speed 01005 chip<9ms
Camera and lighting system Industrial 2M pixel (1600*1200) color camera, 18um lens, RGB/White high-intensity LED ring light (3 channels)
Drive system AC servo motor with high precision ballscrew
Minimum parts test 0201 chip & 0.3pitch IC
Analysis method Color capabilities, color finder, gray scale and pattern matching supported
Output display 22 inch wide screen (resolution: 1680*1050 with 16:10), HDMI supported
Network communications support
Data transfer tool Support CAD, EXC, TXT and other popular formats
Weight 600KG
Dimension 1000×1020×1400mm
Air pressure

0.5MPa
