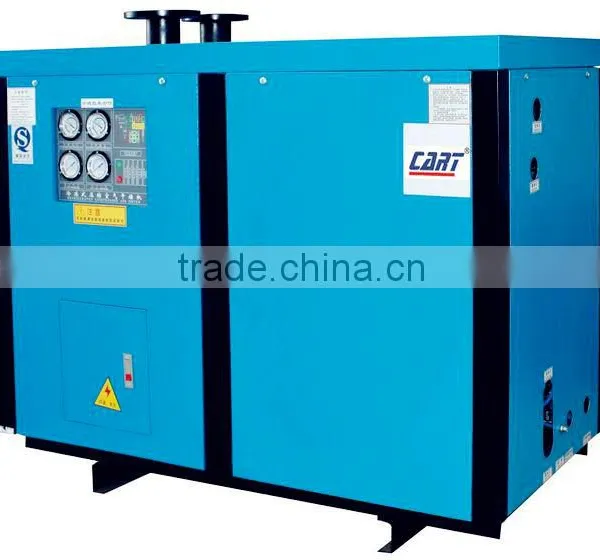

300 Nm³/min Refrigerant Compressed Air Dryer
Inlet temperature:≤80°C(45°C) Inlet pressure: 0.4-1.3Mpa
Cooling method:water cooling Pressure loss: ≤0.03Mpa
Pressure dew point: 2-10°C Cooling water inlet temperature: ≤32°C
Cooling water inlet pressure:0.2~0.4Mpa Refrigerant:R22
The features of the refrigerated compressed air dryer
1.Durable capacity
Durable exhaust pressure dew point
Avoid Ice blocking phenomenon
Avoid moisture enter compressed air pipe
2.Reliable operation
Select good spares, enlarge selection
Simple and reliable design
High efficient refrigerated control system (hot gas by-pass valve)
3.Easy to operate
Direct operate can work on
Single electrical interface
All spares need debug
Auto adjust
Low maintenance time
Long maintenance intervals
It is seldom to exchange spares
4.High efficiency and save energy
Improve the using life of pneumatic tool and equipment and reliability
Decrease pipe road leak and energy consumption
Decrease number of repairs
Decrease stop maintenance times
Improve the final product quality
5.Satisfied your diverse needs
Refrigerated air dryer have some types: air cooling standard(low, high temperature type) ,water cooling standard(low, high temperature type),special type(high temperature ,high pressure ,low pressure,deep cold.Explosion-proof).Handling capacity is from 1.7 m³/min to 500 m³/min; pressure dew point:2-10°C; control method are instrument,electric, PLC and so on. Power supple 220V/1ph/50Hz,380V/3ph/50Hz,110V/1ph/60Hz,440V/3ph/50Hz. The system have stainless steel outer barrel, aluminum outer barrel, it can also produce deep cold refrigerated air dryer, water cooler, cooler. We can customize a special require product.
