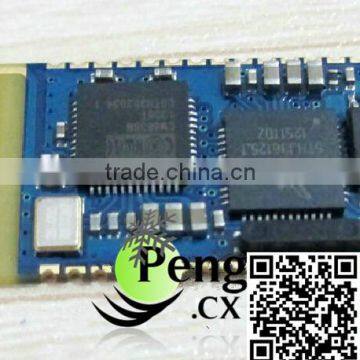

BLK-MD-SPK-E MP3 decoding module of Bluetooth audio

Specifications

Use Bluetooth 2.1+EDR standard, Class 2 Power, compatible with BT3.0 or below version, transmission speed up to 3Mbits/s



Please let us know if you need more datasheet about   BLK-MD-SPK-E . Please inform us directly.



Features:
- Use Bluetooth 2.1+EDR standard, Class 2 Power, compatible with BT3.0 or below version, transmission speed up to 3Mbits/s
- Support L2CAP/A2DP(AVCTP/AVDTP/AVCRP) to receive stereo audio signal, can controll the prev/next operation by protocol
- Support simple matching, do not need to enter the match code, support automatic back function
- Button GPIO or ADC sampling input, self-configuration function and numberkeys
- 16bit DAC output high-quality audio, you can directly drive 40mW @ 32Ωheadphone
- Width operating voltage range (3.5V-5V) supports lithium battery power supply
- Support USB Host, U disk music files can be read
- Support TF card, SD Card, miniSD Card with card read function
- Support AUX, volume adjustable
- Support low-power mode-sniff mode, power saving mode (power saving mode supports audio transmitter wake and external key wake-up)
- Support USB card read function, you can access the SD card or TF card music files through the USB interface
- Support IIC interface, for external FM chip and realize FM function
- Support key switch ON/OFF
- Support infrared interface, could connect external infrared tube and realize infrared receive function
- Support MIC recording
- Support EQ debugging
- Support personalization boot music and connect tone
