Specifications
GSM GPRS modules with GPS/Phone Shield SIM908 EARPHONE gsm gps2.New&Original
3.Best price,Excellent quality
4.In stock,Fast
Product Brief
The characteristics of the product:
The four frequency 850/900/1800/1900MHz
GPRS multi-slot class 10 standard
GPRS mobile station class B standard
Meet GSM phase 2/2+ standard
Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900MHz)
The AT command and control (GSM 7.07, 7.05 and SIMComenhanced AT command set)
SIM application toolkit
Support the voltage range:
GPRS: 3.2V ~ 4.8V
GPS: 3.0V ~ 4.5V
Working temperature: -40 degrees C degrees C ~ +85
Function introduction:
[SMS]
Point to point MO and MT
SMS cell broadcast
The text and the PDU model
[voice]
Three rate
Half rate (HR)
Full rate (FR)
Enhanced full rate (EFR)
The hands-free function
Support echo suppression algorithm
The [GPRS data.
GPRS class 8/10: a maximum of 85.6 Kbps (downlink)
Support PBCCH
Coding schemes CS 1, 2, 3, 4
PPP-stack
The [CSD data.
CSD up to 14.4 kbps
USSD
Non transparent transmission
[GPS]
Receive
The 42 receiver channels
GPS L1 C/A code
High performance STE engine
Sensitivity
Tracking:-160 dBm
Cold starts:-143 dBm
Time-To-First-Fix
Cold start: 30s (typ.)
Hot start: 1s (typ.)
Precision
Accurate positioning: < 2.5 m CEP
Power consumption (GSM idle mode)
Capture: 77mA
Tracking: 76mA
Please let us know if you need datasheet about the produce.And we can provide you directly.

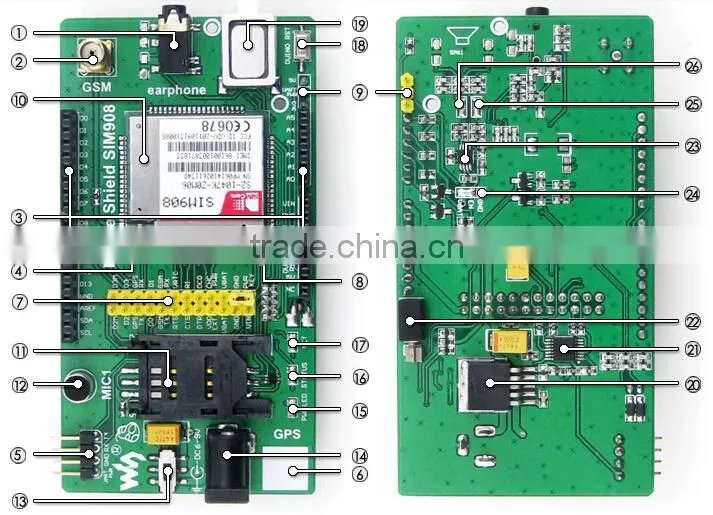

[extended interface]
Headset interface
SIM908 second analog voice channel output
GSM antenna interface
SMA antenna
The Arduino interface
Can access the Arduino motherboard
GSM antenna interface
The UART interface
Can be used for debugging
GPS antenna placement
SIM908 control interface
GPS antenna interface
Selection of power supply interface
Configure external serial port module power supply
[device]
SIM908 chip
SIM card slot
The microphone
SIM908 the first analog voice channel input
The power switch
6V~9V DC power supply interface
The power indicator light
SIM908 status indicator
Often bright said SIM908 normal power supply
SIM908 network indicator
Slow flash said network registration is successful
Arduino reset key
NOKIA original horn
SIM908 the first analog voice channel output
MIC29302 power chip
74HC125 chip
Small vibration motor
NCP2890 power amplifier chip
Amplification of SIM908 the first analog voice channel
[jumper settings
NCP2890 power amplifier chip enable jumper terminal
EN and VBAT shortened, NCP2890 work
EN and GND shortened, NCP2890 don't work
SIM908 analog output is the end of the short end
NCP2890 work, disconnect
NCP2890 does not work, short circuit
SIM908 analog output negative terminal short circuit
NCP2890 work, disconnect
NCP2890 does not work, short circuit
