Energy-saving Industrial 101 psi Permanent Magnet Inverter Silent Compressor

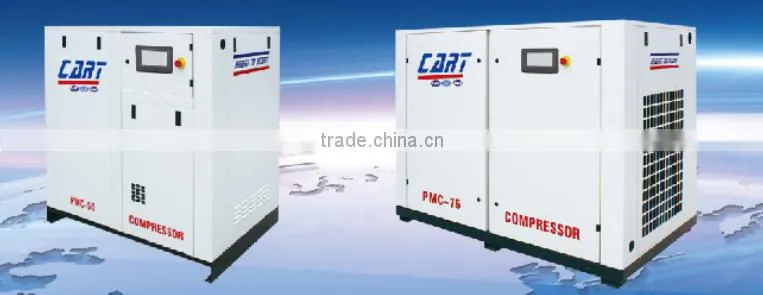

PMC Series Permanent Magent Variable Frequency Screw Air Compressor Technical Data
model |
power (Kw) |
capacity/pressure ((m3/min)/Bar) |
size(mm) |
weight (Kg) |
Outlet |
||||
L |
W |
H |
|||||||
PMC-20A |
15 |
2.6/7 |
2.2/8 |
1.8/10 |
1100 |
850 |
1170 |
600 |
G1″ |
PMC-30A |
22 |
4.4/7 |
3.6/8 |
3.0/10 |
1100 |
850 |
1170 |
620 |
G1″ |
PMC-40A |
30 |
6.0/7 |
5.0/8 |
4.4/10 |
1100 |
850 |
1170 |
620 |
G1-1/2″ |
PMC-50A |
37 |
7.3/7 |
6.4/8 |
5.4/10 |
1280 |
990 |
1400 |
860 |
G1-1/2″ |
PMC-60A |
45 |
9.4/7 |
8.0/8 |
6.8/10 |
1280 |
990 |
1400 |
1360 |
G2″ |
PMC-75A |
55 |
11.3/7 |
10.0/8 |
8.6/10 |
1500 |
1100 |
1500 |
1480 |
G2″ |
PMC-100A |
75 |
15.4/7 |
13.2/8 |
11.6/10 |
1900 |
1300 |
1650 |
1560 |
G2″ |
PMC-125A |
90 |
17.8/7 |
16.0/8 |
13.3/10 |
1900 |
1300 |
1650 |
1890 |
DN65 |
PMC-150A |
110 |
21.9/7 |
20.0/8 |
16.7/10 |
2100 |
1540 |
1900 |
2880 |
DN65 |
PMC-175A |
132 |
25.5/7 |
23.0/8 |
20.1/10 |
2100 |
1540 |
1900 |
2880 |
DN65 |
PMC-220A |
160 |
29.5/7 |
28.5/8 |
25.6/10 |
2300 |
1600 |
2000 |
3080 |
DN80 |
CHARACTERISTICS
1. PMC series screw air end---Permanent magent synchronous direct driven air end
2.Variable frequency control technology---Oustanding vector-controlling technology
3.The world-leading air flow capacity and input power density
4. The microcomputer controller system adopts the closed-loop control
5. One shaft structure
6. Efficient permanent magnetic motor
Adopts NdFeB permanent magnet, no magnet losing under 120℃. Soft starting, no starting shock
7. Prevention of busywork loss
8. Wider range of working frequency, low noise
9. The comparison of costs
As for purchasing air compressor, the traditional cost(purchasing cost = maintenance cost) takes up only 25% of the whole cost whereas the energy-consumption xost reaches 75%
10.Analysis of energy-saving effect
Ordnary wariable frequency air compressor saves around 20%-30% energy in comparison with power frequency air compressor; however, CART permanent magnet wariable frequency air compressor saves as much as 30%-40% energy compared to ordinary power frequency air compressor.
MODEL |
PMC18 |
PMC22 |
PMC37 |
PMC45 |
PMC55 |
PMC75 |
PMC90 |
PMC110 |
PMC132 |
PMC160 |
ENERGY SAVING (kw*h) |
51800 |
61600 |
103600 |
126000 |
154000 |
210000 |
252000 |
308000 |
369600 |
448000 |
(1) For instance, an ordinary 75KW air compressor supposed that working 8000 hours with 0.62 Yuan RMB per kilowatt hour standard, then the whole year's electric fee is 75KW*8000 hours*0.62 Yuan/KW*h, that is 372000 RMB.
(2) Averagely, CART 75KW permanent magnet variable frequency air compressor save around 35% electric fee, in that way, the final electric fee is only 130200 RMB.
(3) Retuen on investment: about one year, checking energy-saving charge on the base of 8000 hours standard per year. The electric-saving performance is as above.
Perfect sales and service management system
Pre-sale services
CART air compressor innovation design not only save maintenance cost, ensure that a low temrature and low system of compressed air temperature, all of the parts good cooling effect, thus the more reliable. Easy to open the door, regular maintenance time, more air filter, oil filter, oil separator is designed to reduce downtime and maintenance costs.
Sale of servies
In order to obtain more customer satisfaction and establish longterm stable cooperative relation with our dedication to each and the dealer provide timely, professional services and technical training, so that you will not have to worry about,
1. Free compressed air system consulting, design, planning and any other services, to help customers to design a reasonable compressed air system, economic, and reliable.
2. Free for users training qualified personnel.
After-sales service
1.We have a national sales network, meet the customers' needs to repair and maintenance service and spare parts.
2. 24 hours service, and actively cooperate with the production needs.
3. Parts delivery, installation, debugging, ensure that users receive professional, comprehensive service.
4. Help the customer to run the whole document, in order to keep the latest machine running condition, regular tracking service.
5. The company of engineering and technical personnel, professional engineers and authorized dealers to provide professinal, rapid, efficient service.
CART is recognized worldwide as the most outstanding air system solutions provider, based on the diverse needs of our customers continued innovation in the field of air compressor system equipment, mining machinery and equipment have established a leading position. With comprehensive strengths in the field of machinery and equipment, Cart has become the industry leader. Currently, our products and solutions have been used in more than 100 countries and regions, serving different industries worldwide
Anqing Cart Compressor Co., Ltd. is the United States (CART GROUP INC.) Authorized the production and marketing of professional manufacturers specialized in producing no oil piston compressor, screw air compressors, sliding vane air compressors and after air-handling equipment.
Cart has the most leading compressor system equipment manufacturing technology and the most remarkable team of experts, also has air system half a century of experience in production and manufacturing equipment, providing quality air system equipment and solutions for global users, the product was widely used in various fields.
In the Asia-Pacific region as a Cart compressor sales and manufacturing base, Anqing Cart Compressor Co., Ltd. to introduce the latest technology and advanced quality management system of Cart group,development and manufacture of high efficiency, high-quality air compressor system equipment.
Cart high-quality products and services not only for the user to save more investment costs and maintenance costs, while improving the effectiveness of the equipment assets to meet the supply needs of different users in different conditions, the user has laid a solid long-term stable development the foundation, therefore, Cart has become the most one respected brands in industrial fields.
Cart company set up hundreds of sales and service organization in the world and have set up offices or agents and spare parts warehouse in more than 20 cities in China, ensure the provision of efficient, high-quality pre-sale , after-sales service.
CART Certificates
CART partner
Q1: Are you factory or trade company?
A1:We are factory.
Q2: What the exactly address of your factory?
A2: Our factory address Industrial Park,High-tech Zone,Daguan District,Anqing City,Anhui Province,China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.We also produse air tanks ,air dryers and air filters just for your need.
Q5: How long will you take to arrange production?
A5:220V 50HZ we can delivery the goods within 10 days. Other electricity or other color we will delivery within 30 days
Q6: Can you accept OEM orders?
A6: Yes, with professional design team, OEM orders are highly welcome.
