BeagleBone Black/BeagleBone BB Black TI
- 2100 Box / Boxes per Month
- shenzhen
Product Details
D/C: | 2014+ | Model Number: | BeagleBone BB Black TI AM3358 Cortex-A8 | Brand Name: | BeagleBone BB |
Place of Origin: | American Samoa |
Product Description
Specifications
1.hot sale BeagleBone Black2.New&Original
3.Best price,Excellent quality
4.In stock,Fast delivery
BeagleBone BB Black TI AM3358 Cortex-A8
[products]

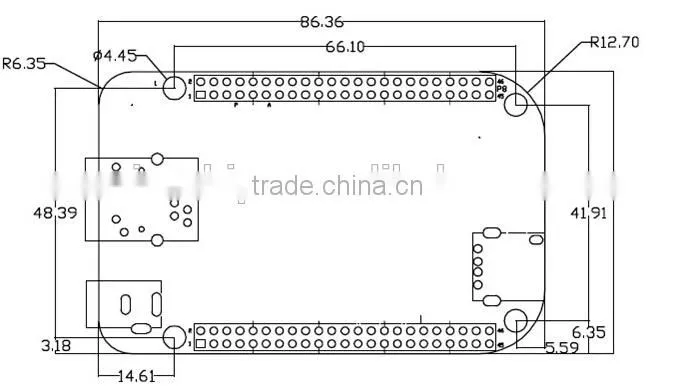

Product size: 86.36 mm × 54.61mm
Operating temperature: 0~70 °C
Humidity: 20% ~ 90% (no condensation)
Input power: 5V/0.35A
BB Black is a AM335x based development kit. The processor is integrated with the ARM Cortex-A8 kernel, and provides rich peripheral interfaces. The extended interface China version of BB-Black including network port, USBHost, USB OTG, TF card interface, serial port, JTAG interface (the default is not welded), HDMI D Type interface, eMMC, ADC, I2C, SPI, PWM and LCDscreen interface.
Application scenarios China version of BB-Black is very wide, to meet the different needs in various fields including gaming peripherals, household and industrial automation, consumer medical devices, printers, intelligent charging system, intelligent vending machine weighing system, education terminal and senior toy, the.
General purpose interface includes 4 sets of general input and outputinterface (GPIO), each group of GPIO module provides 32 general input and output interface dedicated pin, so that general GPIO can be as high as 128(4x32) pin. Programmable real-time unit and industrial communicationsubsystem (PRU-ICSS) consists of two 32 bit RISC kernel (programmable real-time unit, namely PRUs), memory, terminal controller and can support moreperipheral interface and protocol internal peripherals.
POWERVR ® SGX graphics accelerator subsystem for 3D graphics acceleration to support the show and the game effect, the following maincharacteristics of the subsystem:
The Tile-Based architecture, processing capacity of up to 20Mploy/ seconds
Universal and extensible rendering engine is a pixel and vertex shader functionmultithreaded engine
Advanced rendering commands more than Microsoft VS3.0, PS3.0 and OGL2.0 sets
Industry standard API, support Direct3D, OGL-ES 1.1 and Mobile 2, OpenVG 1 and OpenMax
[product parameters]
Product size: 86.36 mm * 54.61mm
Working temperature: 0~70 degrees
Humidity: 20% ~ 90% (condensation)
Input power: 5V/0.35A

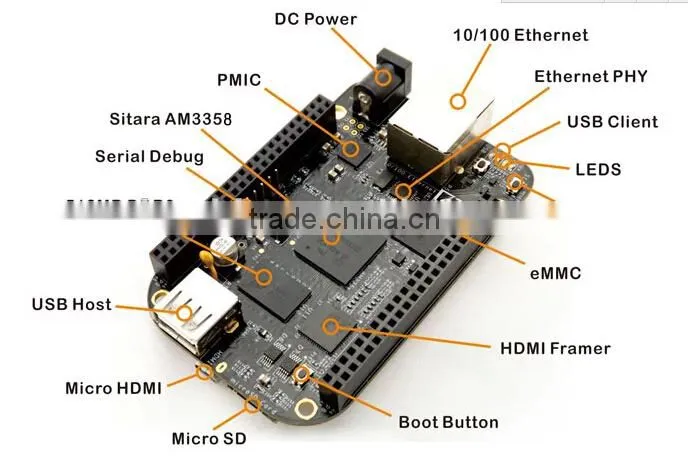

[board interface]
A startup options button
A power button
A reset button
A LED power indicator
Four user defined LED lamp
A HDMI D type interface (16 bit color output, support audio output)
A LCD interface (support 24 bit output, P8 extended interfaceleads)
A 10/100M Ethernet interface (RJ45 connector)
An integrated high speed USB PHY interface OTG 2 (Mini USB B type connector)
An integrated USB PHY 2 high speed HOST interface (USB type A connector)
A TF card interface (SD/MMC compatible)
A 3 wire serial debugging (6-pin 2.54 spacing connector)
A HDMI D type interface
Two expansion interface, can be extended to LCD, UART, eMMC,ADC, I2C, SPI and PWM interface
A JTAG interface (20-pin standard interface, the default is not welded connector)
Processor [AM335x]
Integrated 720-MHz ARM Cortex-A8 kernel
The integration of NEON SIMD co processor
Integrated SGX530 graphics engine
Integrated programmable real-time unit subsystem
Integrated 32KB instruction cache and 32KB cache data, supports parity
Integrated 256KB two level cache support error checking code
[onboard memory]
EMMC Flash memory:B version 2GB
The C version of 4GB (currently sold version)
512MB DDR3 SDRAM memory
Manufacturer Part Number: |
BeagleBone BB Black TI AM3358 Cortex-A8 |
Manufacturer / Brand: | |
Quantity Available: | 2100(contact us to confirm the available quantity) |
Unit Price: | Contact us |
D/C (Date Code): | Generally newest 2014+ |
Lead Time (Delivery Time): | IN STOCK, Fast delivery |
Condition: | NEW AND UNUSED, ORIGINAL FACTORY PACKING |
Package / Case: |
|
Packaging: | Factory sealed packing |
SPQ (Standard Package Quantity): | Contact us |
MOQ: | 1Piece |
Datasheet Download: | Contact us Contact: winwin-ke@hotmail TradeManager:winchips /skype:win-chips |
Factory sealed packing,and sended in the following types: Tube, Tray, Tape and Reel, Bulk packing, Bag, etc. Please kindly confirm with your sales if you need any other assistant or demand.
