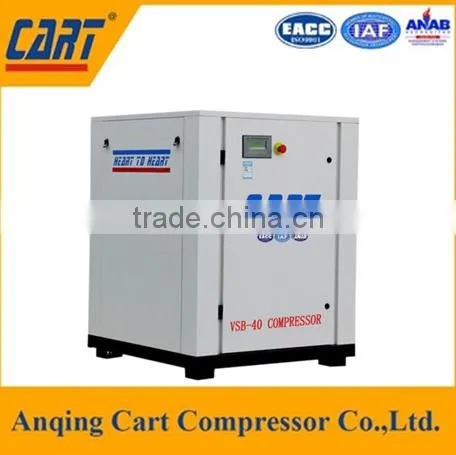

Air screw compressor types varaible frequency inverter air compressor machine


Air screw compressor types varaible frequency inverter air compressor machine

CART frequency conversion use special inverter systems, adopt the newest technology of IGBT4 Industrial-grade chips,  it is reliable ,thermostable and long life. Energy savings have achieved the international advanced level.

VSB series(Direct drive)screw compressor technical data(30kw-75kw)

Frequency screw air compressor energy conservation principle:

Because motor’s speed and air compressor consumed power are first power relationships, reducing the motor’s speed are same as reducing power consumption. Frequency screw air compressor use gas pressure and gas consumption in pressure sensors in real time detection system. By the controller and drive the PID regulator for precise control, without changing the compressor motor torque(the ability to drag load) in the case of changes in the speed of air compressor (the output power),thereby adjusting the system pressure of the compressor and meet output air demand. When the system gas consumption decreases, the compressor provides greater gas consumption in the system, the inverter automatically reduces the compressor’s speed. Otherwise, in order to increase the compressed air, increase the motor’s speed. Keeping the system stable pressure and achieving constant pressure air supply.

Frequency conversion screw air compressor advantages:

4,Improve the gas production efficiency, air production increase about 5%-15%:

Avoid the frequent loading, unloading, stop and save energy.

5,The working years will be extended, from the general 10-15 years to 15-30years.

(1)Variable frequency soft start

(2)flat run

(3)Non-frequency device to prevent electrical contact failure

6,Improve the efficiency of transformer and power grid:

When the common units start or load, Current fluctuations will affect the electricity grid and other equipment, variable frequency compressor will reduce to a minimum, thereby enhancing the effectiveness of the transformer and the power grid.

7,reduce noise:

In routine conditions,  the inverter compressor rate motor speed is 60% to 90%, when the compressor run, effectively reduce the noise . Through field tests showed that, compare with normal air compressor,  the noise of variable frequency compressor decreased by about 2-10 db.

8,high ratio of performance:

CART variable frequency air compressors not only bring energy saving and production efficiency, but also have cost-efficient.

9,high quality:

Adopt well-known brand inverter, industrial-grade components, environmental adaptability, reliability and durability.

Compressor screw parts

•  Standaird power:380V ±10%/50HZ,460V/220V/6KV/10KV and other voltage can be customized.
• Start mode : Variable frequency soft start;
• Working environment temperature:-5°c-45°c
• F.A.D capacity abided by ASMC PTC9 or ISO1217 standard(GB/T3853) Test.
• Transmission mode:Drect drive
• Exhaust pressure below 1.7 Mpa can be customized.
• We have the right to change the appearance&parameters of our products expect informing.

Perfect sales and service management system

1. Overseas third-party support available

2.Sales engineers provide specific reply within 24 hours when the customer has any problem about products until it is solved.

3.Professionally produce air compressor for more than 5 years with best quality. Products quality are certificated by ISO CE

4.Guarantee period is 1 year for the whole machine.

CART is authorized by CART GROUP INC of America, and Anqing Cart Compressor Co.,Ltd has laready become a profeddional air compressor manufacturet for more than five years. With the professional techonlogy and experience, our products and service have owned customers recognition and praise in many countries. With the latest technology and advandced management system, Cart is more professional in producing pil free piston air compressor, screw air compressor ,sliding vane air compressor, diesel portable screw air compressor and air treatment equipment.

.

  CART Certificates

CART partner

 Q1: Are you factory or trade company?

  A1:We are factory.

  Q2: What the exactly address of your factory?

  A2: Our factory address Industrial Park,High-tech Zone,Daguan District,Anqing City,Anhui Province,China.

  Q3: Warranty terms of your machine?

  A3: One year warranty for the machine and technical support according to your needs.

  Q4: Will you provide some spare parts of the machines?

  A4: Yes, of course.We also produse air tanks ,air dryers and air filters just for your need.

  Q5: How long will you take to arrange production?

  A5:220V 50HZ we can delivery the goods within 10 days. Other electricity or other color we will delivery within 30 days

  Q6: Can you accept OEM orders?

  A6: Yes, with professional design team, OEM orders are highly welcome.
