Home > Industrial Equipment & Components > Compressor > Compressor Unit > 110KW 150HP Screw Compressor Air Compressor Machine Prices Supplier's Choice

110KW 150HP Screw Compressor Air Compressor Machine Prices Supplier's Choice

110KW 150HP Screw Compressor Air Compressor Machine Prices Supplier's Choice photo-1

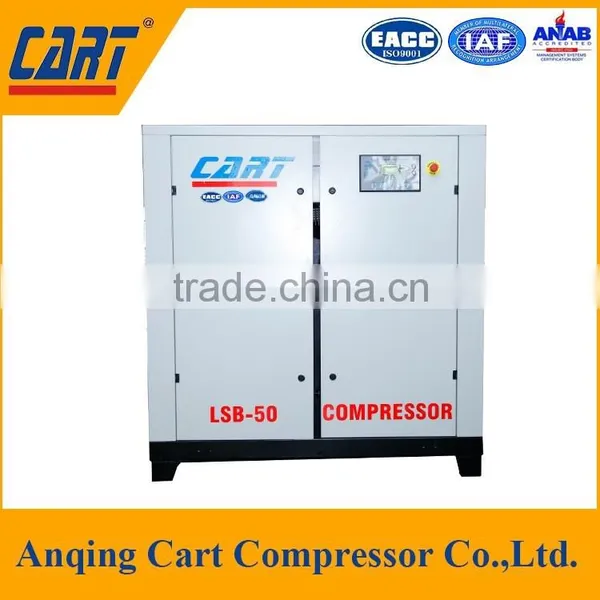

110KW 150HP Screw Compressor Air Compressor Machine Prices Supplier's Choice photo-2

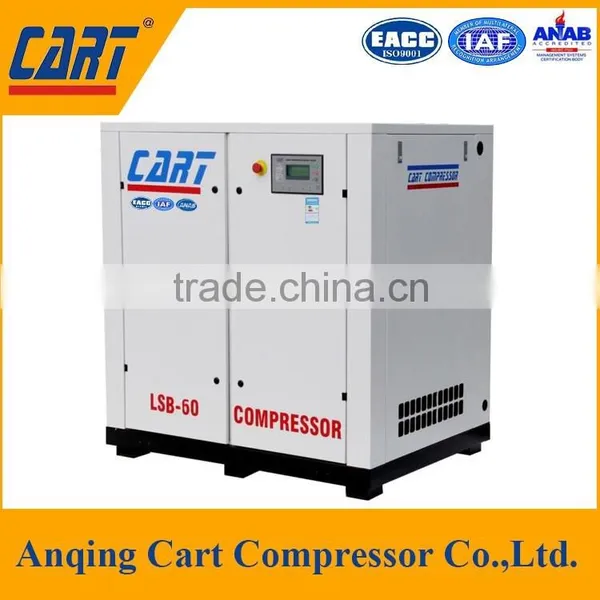

110KW 150HP Screw Compressor Air Compressor Machine Prices Supplier's Choice photo-3

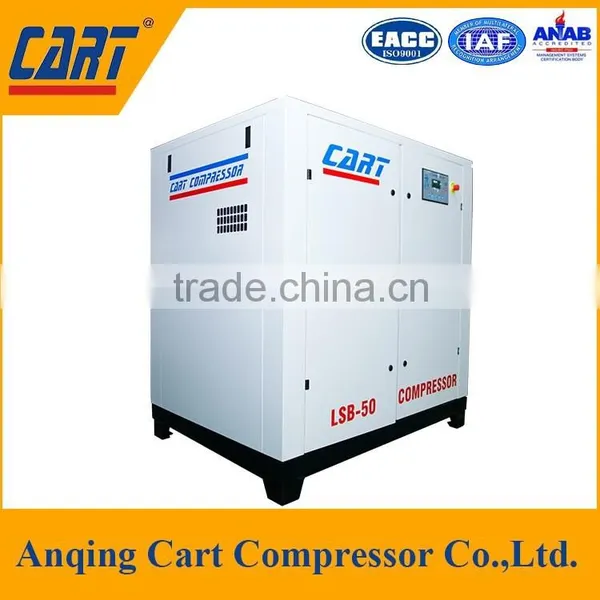

110KW 150HP Screw Compressor Air Compressor Machine Prices Supplier's Choice photo-4
US$ 5500.00 - 5500.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Screw
Configuration Stationary
Power Source AC Power
Lubrication Style Lubricated
Mute No
Place of Origin Anhui, China
Brand Name CART
Model Number MSD-150A/W
Voltage 380V±10% 50HZ
Dimension(L*W*H) 2350*1540*1950mm
Weight 3130kg
Certification ISO9001:2000
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

Pneumatic,construction, rock boringmachine, purging and cool; pneumatic tool and mixing , sand blast, conveying of particle and carpenter's equipment; paint spraying, precision pneumatic elements and instruments, conveying of powder, bearings and tobacco; underwater working , package of medicine, cosmetics, food distribution and can packing; advanced spray, specision instrumnets and elements, electeonic, chip, film, nuclear and aviation industry; food , medical industry, testing indtruments in sterile room etc.

SPECIFICATIONS FOR 55KW 75HP for screw air compressor for sales

machine
machine model:MSD-150A/W
displacement(m3/min)
21.5/20.6/17.8/15.5
Noise level:68±2
puressure(Mpa)
0.7/0.8/1.0/1.3
outlet:DN65
size(L*M*H)mm:
2350*1540*1950mm

Main performance parameters
water air flow(m3/h):10.0
Product Name:
110Kw 150HP screw air compressor
cool air flow(m3/h):27000
package:
Export Standard Wooden Cases
warranty:12 month
delivery time:
7-10days after receiving payment
our advantages
high quality
reasonalbe price
strict quality control
Good after-sales service
professional make for 10 years
Strict delivery time
Streamline production makes each node be well controlled thus to guarantee more reliable quality.
payment:TT, Paypal, etc. Different payment terms for different countries.
We not only provide air systems, but also break the industry monopoly to provide the users with profits

Main Features

1. excellent compressor host
2. high-efficiency motors
3. the unique automatic belt tensioning device design
4 automatically adjust the intake valve
5. a specially designed air cooling system
6. to prevent leakage of the piping connection parts
7. the shock absorber design
8. user-friendly design of safety reasons
9. high oil and gas separation equipment

Certifications
Detailed Images

Machine Parts

Name:Superior performance of the double-screw air-end

Brand: CART

Original: USA

adop the top international level of cart-original third generation asymmetric double screw air end,axial-inlet design improving the efficiency of 5%to15% in comparison with second generation Reliable/Durable SKF bearing and ganged shaft seal,the design life of hearing ups to 8000hours-100000 hours.the design life of air end reaches around 200000 hours

Main Features

Name:High-quality filter

Brand:CART

Original: USA
Machine PartsName: high-quality filteradopt international brand the OEM oil and gas ,oil filter,safe and relaible pressor air export oil content of less than two OPPM,ail filter efficiceny long service life

Machine Parts

Name:high quality and reliable valve
Brand: CART
Original: USA


intake valve,minimum pressure valve,theromstatic valve,safety valve are tens of tfety thousands of reliability
and sarough testing to ensure reliable and durable

Main Features:chinese/English LCD microcomputer controller

Name: chinese/English LCD microcomputer controller
Brand: CART
Original: USA
screw air compressor control system is appied in english and chinese LCD controller,support the remote control and chain control .uncation port for RS 485,Modbus communication protocols,can choose other communcation agreement

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2550(L) * 1740 (W) * 2150(D)
Weight
3180kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
