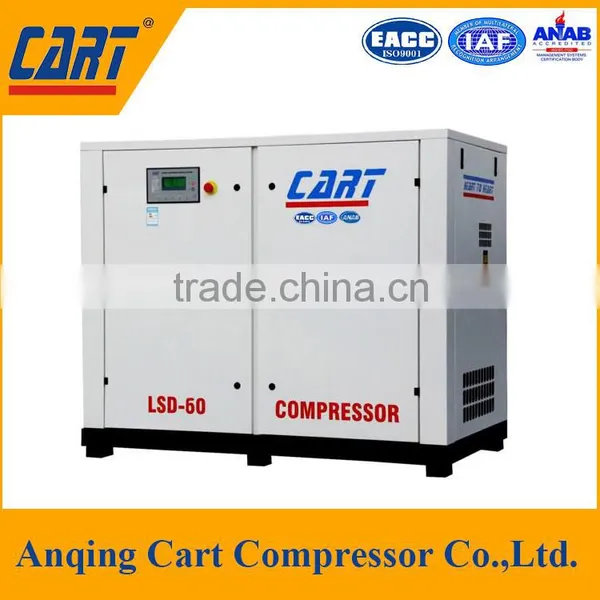

Help CenterLSD-60A High Quality Screw Air Compressor for Electric Industrial
Related Products
-
GSB-50A Factory Directly Provide Belt Drive Screw Air Compressor for SaleUS$ 1,000 - 4,000MOQ: 1 Set -
GSB-50A China Supplier 37KW 50HP Belt Drive Screw Air CompressorUS$ 1,000 - 4,000MOQ: 1 Set
-
GSB-50A 37KW 50HP Low Noise Belt Drive Screw Air CompressorUS$ 1,000 - 4,000MOQ: 1 Set
-
GSB-50A 37KW 50HP High Quality Belt Drive Screw Air CompressorUS$ 1,000 - 4,000MOQ: 1 Set
-
Electric Energy Saving and Efficient Operation of Screw Air CompressorUS$ 1,000 - 3,000MOQ: 1 Set
7.5KW 10HP screw air compressor
Hot sale!!! professional manufacturer& direct factory sale
Model |
LSB-10LA |
LSB-15LA |
LSB-20LA |
LSB-25LA |
LSD-30LA |
m³/min, /bar |
1.5/5 1.7/4 2.1/3 |
2.4/5 2.7/4 3.2/3 |
3.3/5 3.5/4 4.2/3 |
4.1/5 4.2/4 5.5/3 |
4.8/5 6.0/4 7.1/3 |
KW |
7.5 |
11 |
15 |
18.5 |
22 |
Noise |
62±2 |
62±2 |
63±2 |
63±2 |
63±2 |
Outlet Inch |
G1” |
G1” |
G1” |
G1” |
G1” |
Weight |
460 |
460 |
645 |
665 |
710 |
L*W*H(mm) |
550*950*950 |
550*950*950 |
550*950*950 |
550*950*1275 |
1700*1050*1275 |
Note:
1.Standard power supply: 380V ±10%/50HZ,460V/220V/6KV/10KV
other voltage type can be customized
2. A is for air cooling, W is for water cooling
3.7.5A&10A are of direct start, 15A and the above are of star delta start, soft starter can be customized
4.Appropriate Environmental temperature:-5°C-45°C
5.F.A.D capacity measured in accordance with ASMC PTC9 or ISO1217 (GB/T3853)
6. Inlet water temperture for cooling water is below 35 °C,. water pressure is between 0.2Mpa-0.6Mpa; Inlet and outlet water temperature difference for minum water flow is 24 °C; for maxim water flow is 8 °C
7.Transmission: LSB is of belt driven; LSD is of direct driven.
8. The type of discharge pressure below 1.7Mpa can be customized
pls: As our product is constantly being updated, any changes in the parameters or appearance are to be finally explained by our company.
Comprehensive service
Pre-sales
The innovation design of cart air compressor not only save maintenance costs, but also ensure that a low system temperature and low compressed air temperature, make all parts achieve the best cooling effect and long life. Easy to open the door and save routine maintenance time. More air filter, oil filter, oil separator are designed to reduce downtime and maintenance costs.
Sales
In order to achieve satisfactions of more and more customers and establish long-term stable cooperative relations, we and our dealers provide professional service and technical training for every client in time. Feel free to consult us.
1,Free compressed air system consulting, design, planning and any other services; help customers have reasonable, economic, reliable compressed air system.
2,Organize air system training, provide professional person operating machine.
After-sales
1,We have a national sales network to meet the customer’s need which to repair and maintenance service and spare parts.
2,We provide 24 hours service and actively cooperate with the production needs
3,We provide these services:Parts delivery, installation, debugging, ensure that users can obtain professional and perfect service.
4,In order to know more news about the running of machines and regular tracking service, we help the customer establish the whole running documents.
5,Our professional engineers and the engineers of authorized dealers provide professional, rapidly, efficient service.
Air system solutions
Cart not only provides air compressor equipment, but also provides air compressor refrigeration dryers, adsorption dryers, air compressor precision filter, gas tank and related equipment.
1 The most energy-efficient, reliable, optimized air system solution design and construction
2 Special industries and special environment of the air system solution design and construction
3 Compressor power , power system optimization solutions for the design and construction
4 A variety of the central intelligent control and special control solution design and construction
5 The energy recovery system based solutions design and construction
