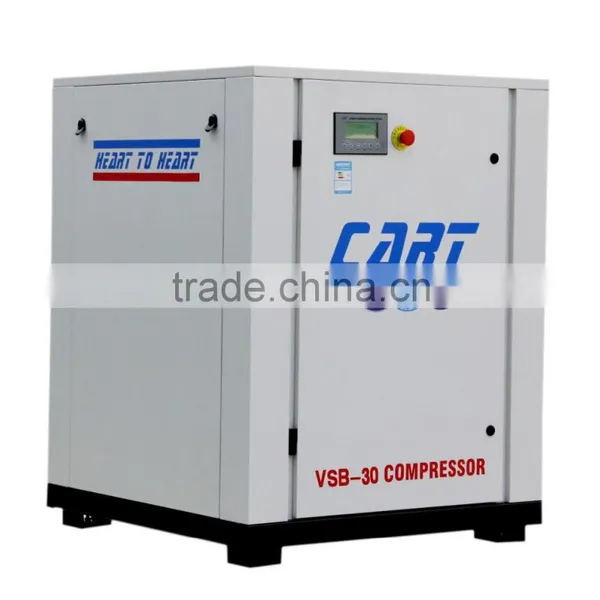

Help CenterInverter Type 22KW 30HP Belt Drive Screw Air Compressor
Related Products
-
LSB-50A the New Generation High Speed Durable Screw Air CompressorUS$ 2000.00 - 2000.00MOQ: 1 Set -
Promotion TOP Brand LSB-60A Screw Air Compressor for SaleUS$ 1000.00 - 1000.00MOQ: 1 Set
-
LSB-60A 45KW/60HP Top Selling High Grade Screw Air CompressorUS$ 1000.00 - 1000.00MOQ: 1 Set
-
LSB-50A 50HP/37KW High Quality Screw Air Compressor Online ShoppingUS$ 2000.00 - 2000.00MOQ: 1 Set
-
LSB-60A 45KW/60HP Reasonable Price Wellknown Screw Air CompressorUS$ 1000.00 - 1000.00MOQ: 1 Set
Energy saving Belt driven 22KW/30HP screw compressor
professional manufacturer& direct factory sale
| Model | VSB-7.5A | VSB-10A | VSB-15A | VSB-20A | VSB-25A | VSB-30A |
| Air flow capacity(m3/min,/Mpa) |
0.85/0.7
0.80/0.8
0.68/1.0
0.62/1.3 |
1.2/0.7
1.15/0.8
1.05/1.0
0.8/1.3 |
1.8/0.7
1.68/0.8
1.5/1.0
1.2/1.3 |
2.4/0.7
2.2/0.8
2.0/1.0
1.7/1.3 |
3.3/0.7
3.1/0.8
2.7/1.0
2.2/1.3 |
3.8/0.7
3.6/0.8
3.2/1.0
2.8/1.3 |
| Power (KW/HP) | 5.5/7.5 | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 |
| Noise dB(A) | 60 ±2 | 61±2 | 62±2 | 62±2 | 63±2 | 63±2 |
| Outlet diameter(inch) | G3/4 | G3/4 | G1" | G1" | G1" | G1" |
| Weight(KG) | 240 | 250 | 320 | 410 | 500 | 550 |
| L*W*H(mm) | 850*850*1050 | 850*850*1050 | 850*1000*1120 | 1250*910*1340 | 1250*910*1340 | 1250*910*1340 |
| cool air flow(m3/h) | 2400 | 2800 | 5400 | 5800 | 8000 | 10000 |
Note:
1.Standard power supply: 380V ±10%/50HZ,460V/220V/6KV/10KV
other voltage type can be customized specifically.;
2.Start mode: variable frequency soft start
3.Appropriate Environmental temperature: -5°C-45°C
4.F.A.D capacity measured in accordance with ASMC PTC9 or ISO1217 (GB/T3853)
5. Transmission: belt drive
6. The type of discharge pressure below 1.7Mpa can be customized
pls: As our product is constantly being updated, any changes in the parameters or appearance are to be finally explained by our company.
Comprehensive service
Pre-sales
The innovation design of cart air compressor not only save maintenance costs, but also ensure that a low system temperature and low compressed air temperature, make all parts achieve the best cooling effect and long life. Easy to open the door and save routine maintenance time. More air filter, oil filter, oil separator are designed to reduce downtime and maintenance costs.
Sales
In order to achieve more satisfactions of customer and establish long-term stable cooperative relations, we and our dealers provide professional service and technical training for everyone in time. So you do not worry.
1,Free compressed air system consulting, design, planning and any other services; help customers have reasonable, economic, reliable compressed air system.
2,Organize air system training, provide professional person operating machine.
After-sales
1,We have a national sales network to meet the customer’s need which to repair and maintenance service and spare parts.
2,We provide 24 hours service and actively cooperate with the production needs
3,We provide these services:Parts delivery, installation, debugging, ensure that users can obtain professional and perfect service.
4,In order to know more news about the running of machines and regular tracking service, we help the customer establish the whole running documents.
5,Our professional engineers and the engineers of authorized dealers provide professional, rapidly, efficient service.
Air system solutions
Cart not only provides air compressor equipment, but also provides air compressor refrigeration dryers, adsorption dryers, air compressor precision filter, gas tank and related equipment.
1 The most energy-efficient, reliable, optimized air system solution design and construction
2 Special industries and special environment of the air system solution design and construction
3 Compressor power , power system optimization solutions for the design and construction
4 A variety of the central intelligent control and special control solution design and construction
5 The energy recovery system based solutions design and construction
