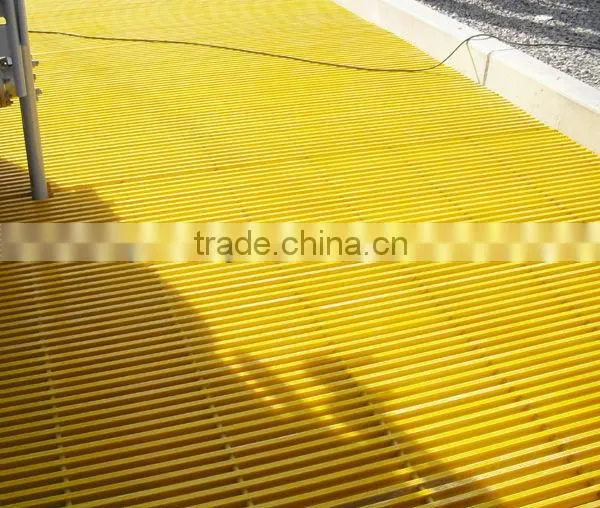

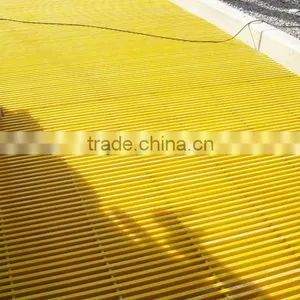

FRP Grate Walkway, for greater span and load bearing

pallets

Specifications

FRP grate walkway
pultruded grating provides twice the stiffness of molded grating, allowing it to span greater distances



FRP Grate Walkway, for greater span and load bearing





The 65% glass to 35% resin ratio of pultruded grating provides twice the stiffness of molded grating, allowing it to span greater distances. Pultruded grating is best suited to pedestrian walkways, platforms, and other applications where wide support spans, close load bar spacing, or ADA compliance is required





long-term durability, offers the strength of steel at a fraction of the weight, plus it won’t corrode, spark or conduct electricity. Because it weighs less, it’s easier to install. And the color is molded all the way through, so no painting is required.







FRP grating, pultruded frp grating, fiberglass grating, frp pultrusion grating, trench grating, drain grating, grating walkway, platform grating

1-25mm,38mm, 40mm, 50mm,58mm,65mm high grating are available;

2-Easy to install;

3-Can be cut at any lengths you need; open area is decided by customer

4-Grating clamps are available.



Yalong fiberglass grating specification list:



Item	high (inches)	top wide (mm)	bottom wide (mm)	top space wide (mm)	theoretical weight (KG/M2)
25mm I	1	30	30	13	13
25mm I	1	30	30	30	10
25mm I	1	15	15	10	17
25mm I	1	15	15	23	11
38mm I	1.5	15	15	10	26
38mm I	1.5	15	15	15	22
38mm I	1.5	15	15	23	18
40mm I	1.6	40	20	27	19
40mm I	1.6	40	20	40	17
40mm I	1.6	40	20	60	14
40mm I	1.6	30	30	20	14
40mm I	1.6	30	30	30	12
40mm I	1.6	30	30	45	10
58mm I	2.2	15	15	10	32
58mm I	2.2	15	15	15	27
58mm I	2.2	15	15	23	22
65mm I	2.5	30	30	20	17
65mm I	2.5	30	30	30	15
60mm I	2.5	30	30	45	12



Pultruded FRP Grate advantages

• Corrosion Resistant.
• High Strength-to-Weight Ratio.
• Long Service Life.
• Fire Retardant.
• Slip & Impact Resistant.
• Nonconductive.
• Easy to Install & Fabricate.

FRP grating Applications:
Bridge walkways
Platforms
Trench Covers



Walkways
Pedestrian Ramps
Decks and Patios



electric substation insulated frp grating floor, great load bearing





Chemical plant anti-corrosion frp grating trench cover



Exterior wall decoration frp grating





Fiberglass grating applications
