Industrial FRP Fiberglass Reinforced Plastic Safety Grate
- 1000 Square Meter / Square Meters per Month
- Qingdao
- T/T Credit Card
- High strength FRP pultruded grating, fiber glass grating walkway(frp grating manufacturer)
- Pultruded FRP Fiberglass I Bar Grating
- Fibre Reinforced Plastic Grating, FRP Grating, fibreglass reinforced plastic grating
- Fibre Reinforced Plastic (FRP) Floor Grid
- Great load bearing GRP Pultruded Grating, FRP GRP Grating
- High strength GRP Floor Grating, grp grating
Product Details
Place of Origin: | Henan, China | Brand Name: | yalong | Model Number: | height 25mm to 70mm |
Application: | walkway,trench cover,platform,decks, patios,Pedestrian Ramps, carwash, Offshore Installations, chemical industries, roadway | Surface Treatment: | as customer require | Technique: | pultruded frp grating |
Dimensions: | height 25mm to 70mm |
Packaging Details
In bulks,woven bags,wooden cases,wood pallets,iron pallets,containers,which suitable for the frp grating.
Product Description
Specifications
FRP Fiberglass Reinforced Grating1.Corrosion Resistant
2.High Strength,light weight
3.Non-conductiove
4.Safe enough

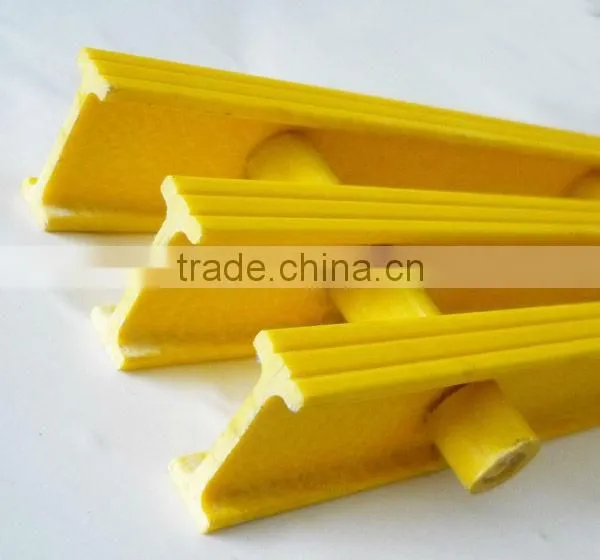

Industrial FRP Fiberglass Reinforced Plastic Safety Grate
Pultruded FRP Fiberglass Reinforced Plastic Grating is built with a much stronger process, and can carry a far superior load, and handle much greater impacts than molded grate.
long-term durability, offers the strength of steel at a fraction of the weight, plus it won’t corrode, spark or conduct electricity. Because it weighs less, it’s easier to install. And the color is molded all the way through, so no painting is required.
Advantages of FRP Fiberglass Reinforced Plastic Grate
1. Corrosion Resistant.
2. High Strength-to-Weight Ratio.
3. Long Service Life.
4. Fire Retardant.
5. Slip & Impact Resistant.
6. Nonconductive.
7. Easy to Install & Fabricate.
Applications of FRP Fiberglass Reinforced Plastic Grate:
1. Bridge walkways
2. Platforms
3. Trench Covers
4. Walkways
5. Pedestrian Ramps
6. Decks and Patios
Yalong frp fiberglass reinforced grate specification list:
Item | high (inches) | top wide (mm) | bottom wide (mm) | top space wide (mm) | theoretical weight (KG/M2) |
25mm I | 1 | 30 | 30 | 13 | 13 |
25mm I | 1 | 30 | 30 | 30 | 10 |
25mm I | 1 | 15 | 15 | 10 | 17 |
25mm I | 1 | 15 | 15 | 23 | 11 |

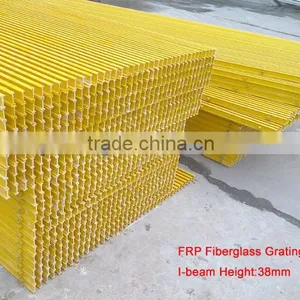

38mm I | 1.5 | 15 | 15 | 10 | 26 |
38mm I | 1.5 | 15 | 15 | 15 | 22 |
38mm I | 1.5 | 15 | 15 | 23 | 18 |
40mm I | 1.6 | 40 | 20 | 27 | 19 |
40mm I | 1.6 | 40 | 20 | 40 | 17 |
40mm I | 1.6 | 40 | 20 | 60 | 14 |
40mm I | 1.6 | 30 | 30 | 20 | 14 |
40mm I | 1.6 | 30 | 30 | 30 | 12 |
40mm I | 1.6 | 30 | 30 | 45 | 10 |
58mm I | 2.2 | 15 | 15 | 10 | 32 |
58mm I | 2.2 | 15 | 15 | 15 | 27 |
58mm I | 2.2 | 15 | 15 | 23 | 22 |
65mm I | 2.5 | 30 | 30 | 20 | 17 |
65mm I | 2.5 | 30 | 30 | 30 | 15 |
60mm I | 2.5 | 30 | 30 | 45 | 12 |

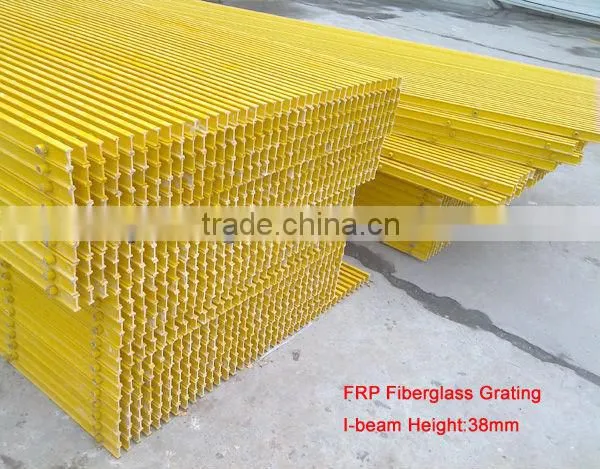

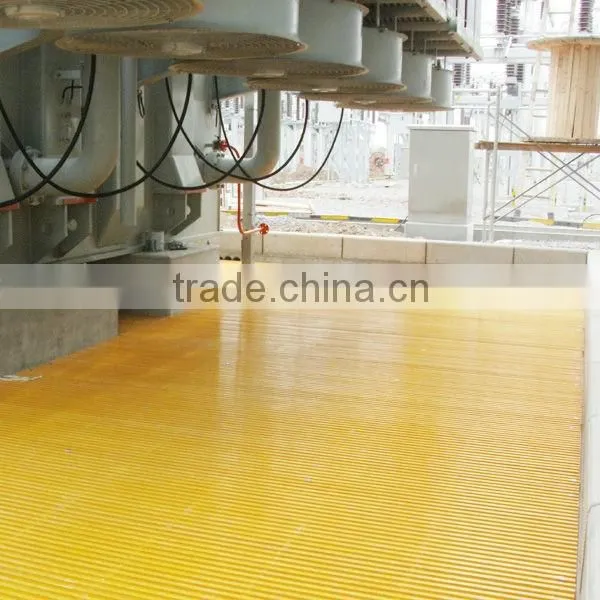

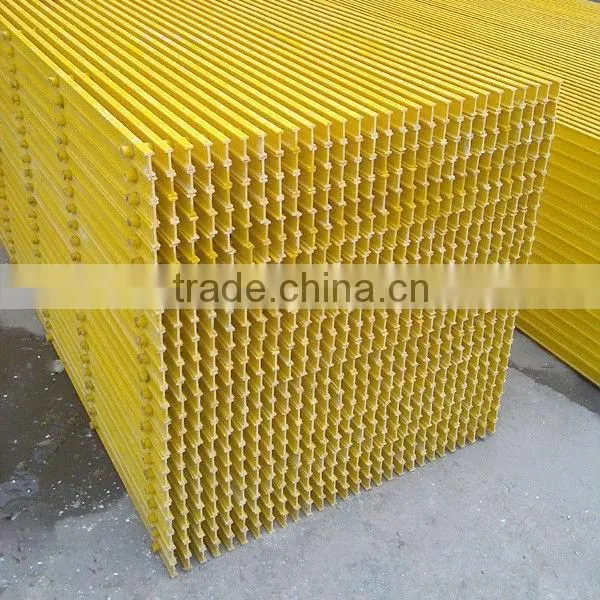

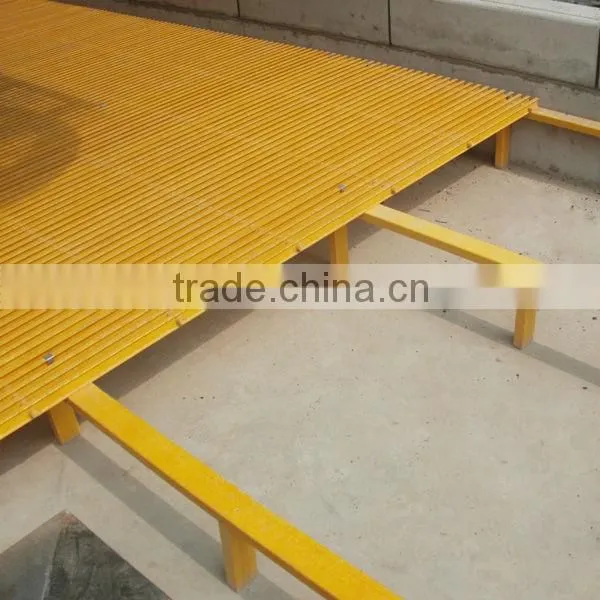

Product Photo

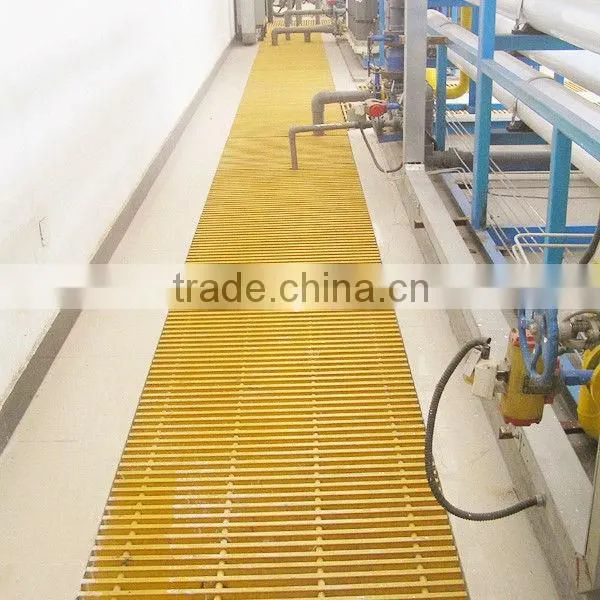

Chemical Plant Walkway

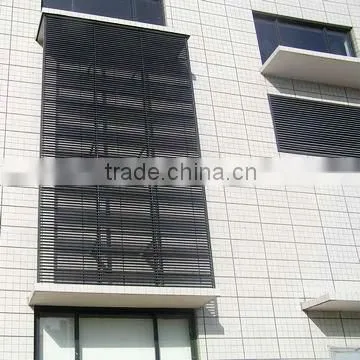

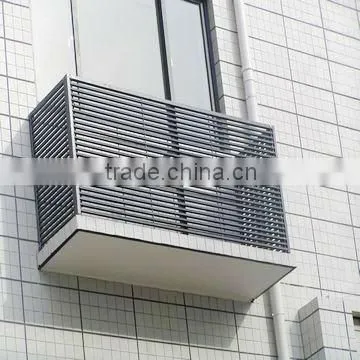

Exterior wall decoration grating
Package:
Plywood case/ wood pallet/ container.
According to the frp fiberglass grate sizes, quantities and customers’ request.
Shipping:
Usually, we ship the goods from Qingdao and Tianjin Port.
If have any need, we also can send the goods to other ports or delivery places.
Sample Service:
FRP fiberglass reinforced plastic safety grate sample is available.
Custom Service:
Colors are on your request. Our regular colors include red, white, black, yellow, green, blue ect. we can offer any color you request. Unit length are also on your request, if it’s easy for shipping.
Need technical/design help or more information, please do not hesitate to contact us also. Our technical department will serve you well.
Yalong is one of China’s largest producers of FRP pultruded products. Yalong is also a joint venture company with the Pultrex Company in the United Kingdom. Our company operates ISO 9001:2008 certified pultrusion manufacturing facilities with 5 machines and 8 pultrusion lines. Our company locates in the capital of Henan province, and has convenient transport facilities.
Yalong has staff registered professional engineers experienced in the design of FRP pultrusion products for custom design requirements. Yalong has extensive experience in production procedures, joint design and analysis, combined with the use of our company’s FRP products. Superior products, cost-effective design and structural integrity will be provided. Clearly, straight forward drawings of products are also provided to the customers for approval before the production begins (unless customer drawings are provided).
Company Profile
Zhengzhou Yalong Pulterx composites Co., Ltd. was established in September 1994 and became a member of China Fiber Reinforced Plastics (FRP) association in April 1995, was recognized as a high-tech enterprise in Zhengzhou.
Yalong took part in many important construction project in China, for example, China western area Aluminium smelter plant construction, Northeast power plant cooling tower anti-freeze project, the biggest nylon"66"project in Ping Ding Shan, etc.
Yalong products recommended by the Standardization Committee of China Construction Department, meanwhile, selected in "Anti-corrosion structure in construction "J333(BII)" Selected national standard design drawings", won the third term Scientific and Technical Advance Prize of Henan Province.
We produce different FRP profiles with different resin such as: polyester, polyethylene, epoxy, and phenolic.
FRP fiberglass profiles also could be assembled to different fiberglass product according to customer requirement, such as:
Fiberglass window and shutter
Pultruded Fiberglass Grating
Fiberglass guardrail handrail fence
Fiberglass ladders and stairs
Cooling tower FRP components
filler supports, anti-freeze board, grating walkway
Fiberglass Structure and support
Yalong have great quality control from raw materials to finished product, also offer best after sale service.
20 years producing experience ensure top class quality, we also welcome OEM and ODM, welcome contact us freely.
