Multispiral Hydraulic Hose
Consists of an inner tube, middle layer, tow ,four or six spiral wire reinforcements and cover, inner tube is to transmit liquid under pressure and protect steel wire against corrosion while cover is to protect wire against damage. Wire layer (Φ0.3-2.0 reinforcement) is the structure materials that providing reinforcement.
Application
High pressure wire reinforcement hydraulic hose manily usde in mine hydraulic support,oil exploration, suitable to engineer constuction, crane transport, forging metallurgy,mining equipment,ships,injection molding machiniery, agricultural machinery various machine tools,and carry hydraulic fluids for industry department mechanization and automatic hydraulic systerms, including petroleum base fluids which under specific pressure and temperature(e.g. Mineral oil,soluble oil, fuels,lubrication),water based fluids(e.g. Emulsion, oil- water emulsion,water),air and fluids,in industry department mechanization and automatic standard,DIN 2003,EN 856,SAEJ517
Working temperature: -40℃ to 100 ℃
Product Specification range:6.3 mm to 51 mm
Types
4SP-four wire spiral middle pressure hose
4SH-four wire spiral high pressure hose
R12-Four wire spiral high temperature and middle pressure hose in abused condition
R13-Multiple wire spiral temperature and high pressure hose in abused condition
R15-Multiple wire spiral high pressure high temperatue and super high pressure hose in abused condtion
Structure
Hose consists of tube,reinforcement ,four or multiple wire spiral reinforcement and cover

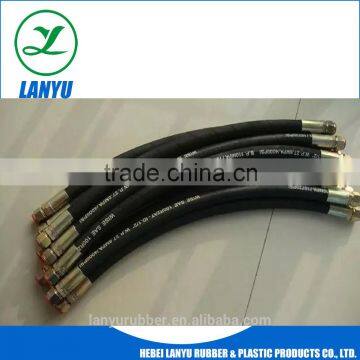

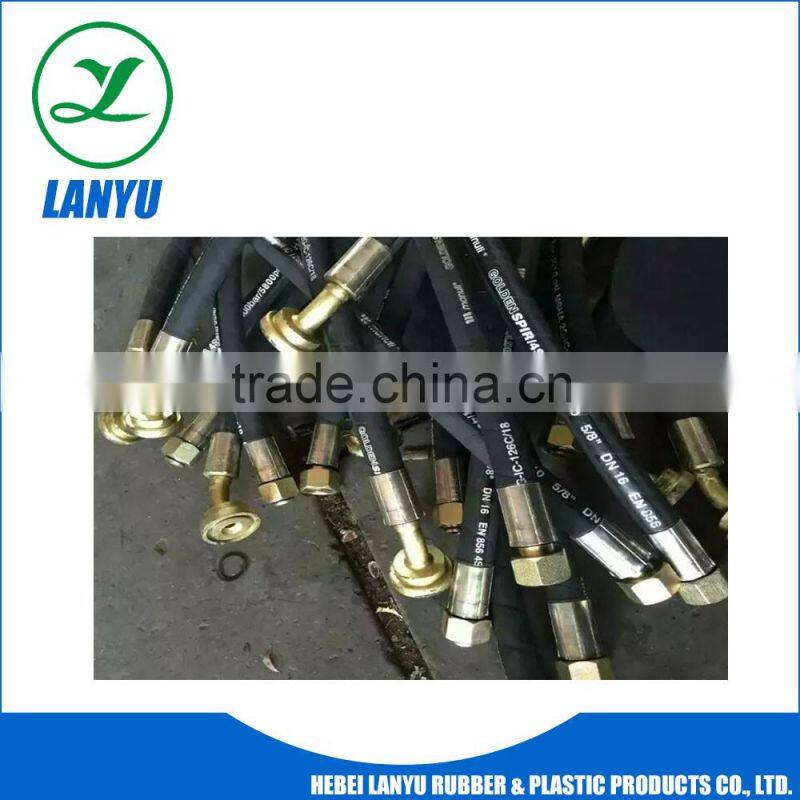

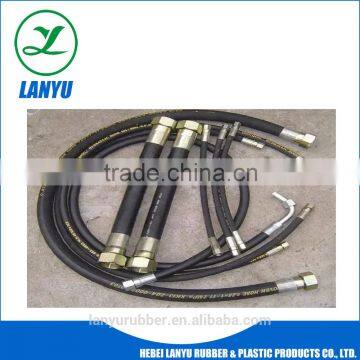

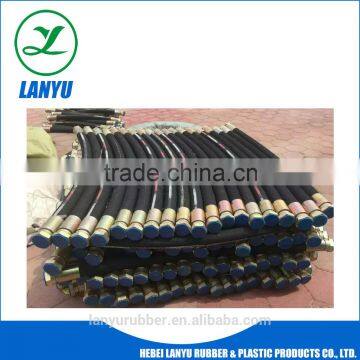

EN 856 4SP multispiral hydraulic hose
Inner tube: oil resistant synthetic rubber
Reinforcement: four layers of high tensile steel wire
Cover:abrasion and weather resistant synthetic rubber
Temperature range: -40℃ to +100 ℃
DN |
Hose ID |
Wire OD |
Hose OD |
Working pressue |
Burst Pressure |
Minimum Bend Radius |
Weight |
|||
|
inch |
mm |
mm |
mm |
MPa |
Psi |
MPa |
Psi |
mm |
Kg/m |
10 |
3/8 |
9.5 |
17.5 |
21.4 |
44.5 |
6450 |
180 |
26000 |
180 |
0.78 |
13 |
1/2 |
12.7 |
20.2 |
24.0 |
41.5 |
6000 |
166 |
24000 |
230 |
0.89 |
16 |
5/8 |
15.9 |
23.8 |
28.2 |
35.0 |
5000 |
140 |
20000 |
250 |
1.11 |
19 |
3/4 |
19.0 |
28.2 |
32.2 |
35.0 |
5000 |
140 |
20000 |
300 |
1.59 |
25 |
1 |
25.4 |
35.5 |
39.7 |
28.0 |
4000 |
112 |
16000 |
340 |
2.02 |
32 |
1-1/4 |
31.8 |
46.0 |
50.8 |
21.0 |
3000 |
84 |
12000 |
460 |
3.32 |
38 |
1-1/2 |
38.1 |
52.4 |
57.7 |
18.5 |
2700 |
74 |
10800 |
560 |
3.7 |
51 |
2 |
50.8 |
65.3 |
69.6 |
16.5 |
2400 |
66 |
9600 |
660 |
5.47 |
1. High quality custom molded High quality waterproof rubber o ring with competitive prices.
2. Direct factory price.
3. Professional technical services.
4. We also make High quality waterproof rubber o ring by customer`s size,drawings or samples.
5. Different color is available.
6.Sample order & smaller quantity
7. Excellent after-sale service.
FAQ
1.What is the payment term?
In general,30% T/T deposit in advance,70% balance payment scan copy of shipping documents within 7 workday.If the quantity and amount is small,we suggest 100% deposit in advance.
2.Can we produce goods with special specification?
First of all ,we need to know the specification in details,then we need to check with our technology department,we will give customer satisfying reply as soon as possible.
3.Can we delivery goods on time ?
Yes,If there is the special case of force majeure, we will inform the clients in advance.
4.What is the port of loading ?
In general,Tianjin/Qingdao/Ningbo ,other ports as customer request.
5. What is the warrantee period?
There is a 1 year warranty from the date of EX-factory.
If you are interested in our products, please do not hesitate to contact
with us, we will offer our price to you as soon as possible.
