Specifications
DONGFENG 10 tons double axles truck mounted crane factory directly sales1,a professional manufacturer
2 superior quality go

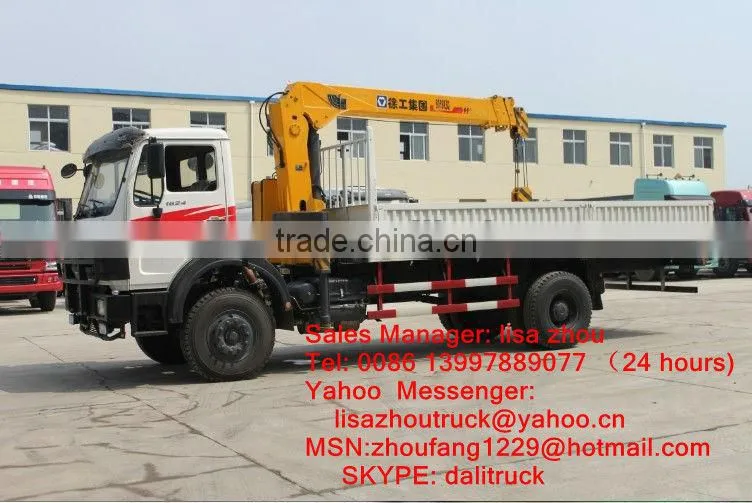

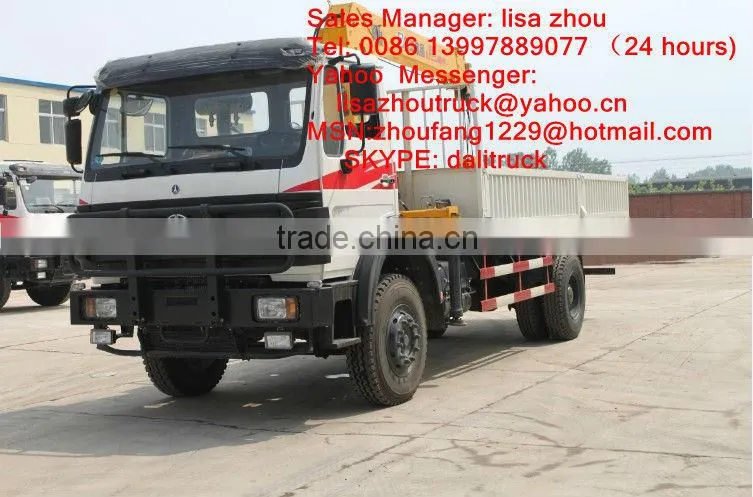

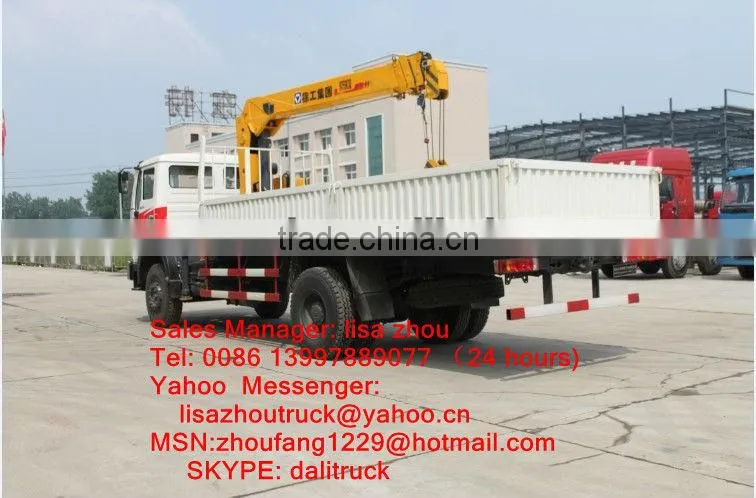

North Benz 5 Ton truck mounted crane factory directly sales
North Benz 5 Ton truck mounted crane factory directly sales
Technical specification
Truck model |
DLQ |
Chassis model |
ND1160W241D |
||
|
Weight parameter (kg) |
Payload |
15000kg |
Outline size (mm) |
8800X2470X3250 |
|
Curb Mass |
8000kg |
Container(m3) |
8m3-10m3 |
||
Total Mass |
23000kg |
Wheelbase (mm) |
4800 |
||
Engine |
Engine Model |
WD615.56 |
Displaceme(L) |
9.726L |
|
Power(kw) |
193 |
Horse power(hp) |
262hp |
||
|
Engine Manufacture |
Weichai power |
Fuel type |
Diesel oil |
||
Engine type |
Water-cooling,supercharged 6-cylinder inner-cooling diesel engine |
||||
Chassis description |
Max speed (km/h) |
85 |
Track span (mm) |
Front tread |
1940 |
Drive type |
4x2 |
Rear tread |
1860 |
||
Wheelbase(mm) |
4800 |
Reaching out of vehicle (mm) |
Front overhang |
1245 |
|
Front axle(T) |
5T |
Rear Overhang |
1405 |
||
Rear axle(T) |
10T |
Driving angle (°) |
Approach angle |
34° |
|
Leaf of spring |
9/11+8 |
Departure angle |
20° |
||
Tire specification |
12.00-20 |
Air-conditioner |
Choose to fix |
||
Steering gear |
Dual-armed steering wheel,powering steering,6 gear mechanical drive |
||||
Clutch |
Diaphragm clutch,hydraulic remote control,pneumatic serveo |
||||
Transmission |
6 gear mechanical drive transmission |
||||
Breaking system |
Split air braking system,spring breaking,exhaust breaking |
||||
Cab description |
Non-longheaded one and half row cab,whole metal enclosed,reversible cab, With ergonomic mechanical damping suspension seat,choose to fix CD palyer or radio player |
||||
Special function of Crane
|
Special function Of Crane |
Crane model |
SQ5SK2Q/SQ5SK3Q |
Max Lifting Capacity(kg) |
5000 |
|
Max Lifting Moment(T.M) |
12.5 |
|
Recommend Power(KW) |
18 |
|
|
Max Oil Flow of Hydraulic System(L/Min) |
32 |
|
Max Pressure of Hydraulic System(Mpa) |
18 |
|
Oil Tank Capacity(L) |
90 |
|
Rotation Angle |
360 |
|
Crane Weight(kg) |
2074/2170 |
|
Installation Space(mm) |
900 |
