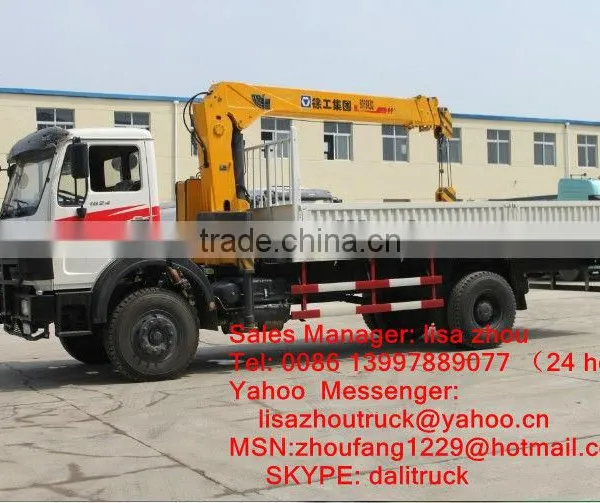

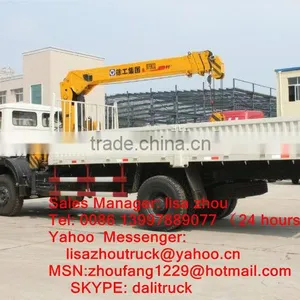

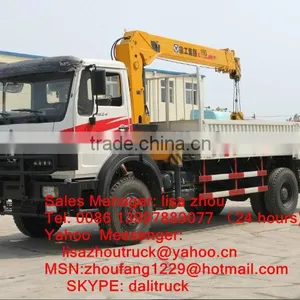

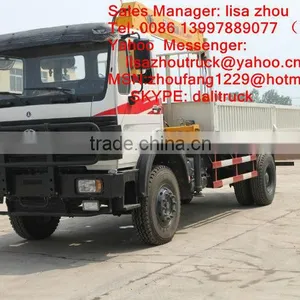

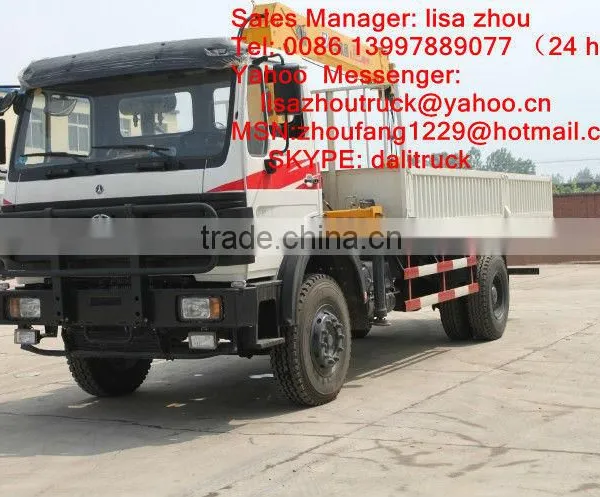

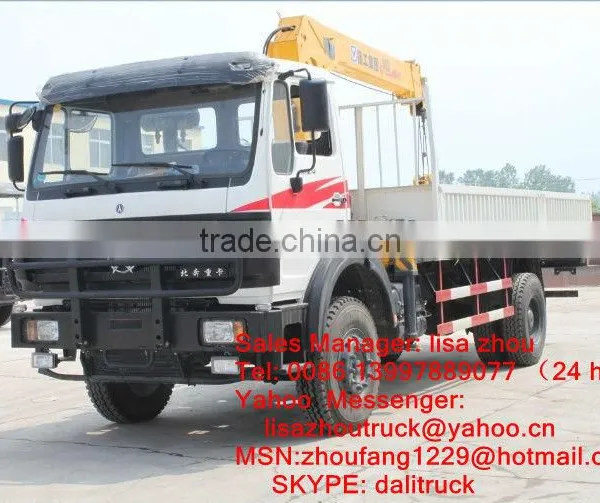

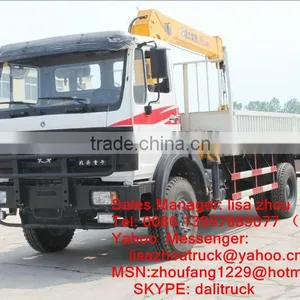

North Benz 5 Ton Truck Mounted Crane Factory Directly Sales

US$ 34,500 - 45,800 MOQ: 1 Set

Key Specifications

Condition:

New

Capacity (Load):

1 - 10t

Drive Wheel:

4x2

Hubei Haotian Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any ports in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) 1 - 10t

Drive Wheel 4x2

Horsepower 150 - 250hp

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Engine Capacity 4 - 6L

Size 8800*2470*3250

Gross Vehicle Weight 15000

Place of Origin Hubei, China

Brand Name DLQ

Model Number DLQ

Specifications

North Benz 5 Ton truck mounted crane factory directly sales
1,a professional manufacturer
2 superior quality good price

North Benz 5 Ton truck mounted crane factory directly sales

Technical specification

Truck model	DLQ		Chassis model	ND1160W241D
Weight parameter (kg)	Payload	15000kg	Outline size (mm)	8800X2470X3250
	Curb Mass	8000kg	Container(m3)	8m3-10m3
	Total Mass	23000kg	Wheelbase (mm)	4800
Engine	Engine Model	WD615.56	Displaceme(L)	9.726L
	Power(kw)	193	Horse power(hp)	262hp
	Engine Manufacture	Weichai power	Fuel type	Diesel oil
	Engine type	Water-cooling,supercharged 6-cylinder inner-cooling diesel engine
Chassis description	Max speed (km/h)	85	Track span (mm)	Front tread	1940
	Drive type	4x2	Track span (mm)	Rear tread	1860
	Wheelbase(mm)	4800	Reaching out of vehicle (mm)	Front overhang	1245
	Front axle(T)	5T	Reaching out of vehicle (mm)	Rear Overhang	1405
	Rear axle(T)	10T	Driving angle (°)	Approach angle	34°
	Leaf of spring	9/11+8	Driving angle (°)	Departure angle	20°
	Tire specification	12.00-20	Air-conditioner	Choose to fix
	Steering gear	Dual-armed steering wheel,powering steering,6 gear mechanical drive
	Clutch	Diaphragm clutch,hydraulic remote control,pneumatic serveo
	Transmission	6 gear mechanical drive transmission
	Breaking system	Split air braking system,spring breaking,exhaust breaking
Cab description	Non-longheaded one and half row cab,whole metal enclosed,reversible cab, With ergonomic mechanical damping suspension seat,choose to fix CD palyer or radio player

Special function of Crane

Special function Of Crane	Crane model	SQ5SK2Q/SQ5SK3Q
	Max Lifting Capacity(kg)	5000
	Max Lifting Moment(T.M)	12.5
	Recommend Power(KW)	18
	Max Oil Flow of Hydraulic System(L/Min)	32
	Max Pressure of Hydraulic System(Mpa)	18
	Oil Tank Capacity(L)	90
	Rotation Angle	360
	Crane Weight(kg)	2074/2170
	Installation Space(mm)	900
