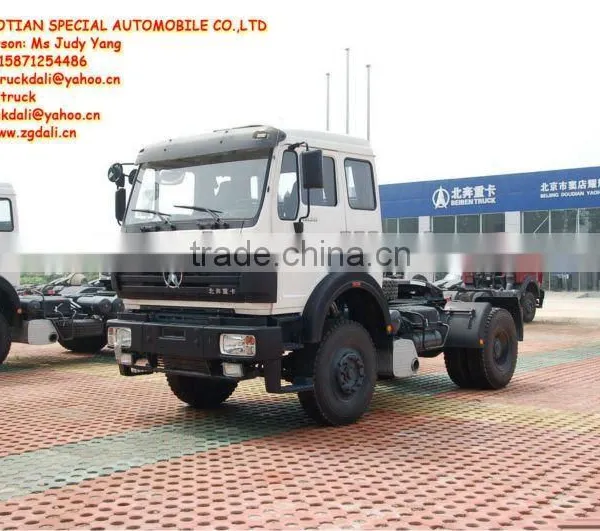

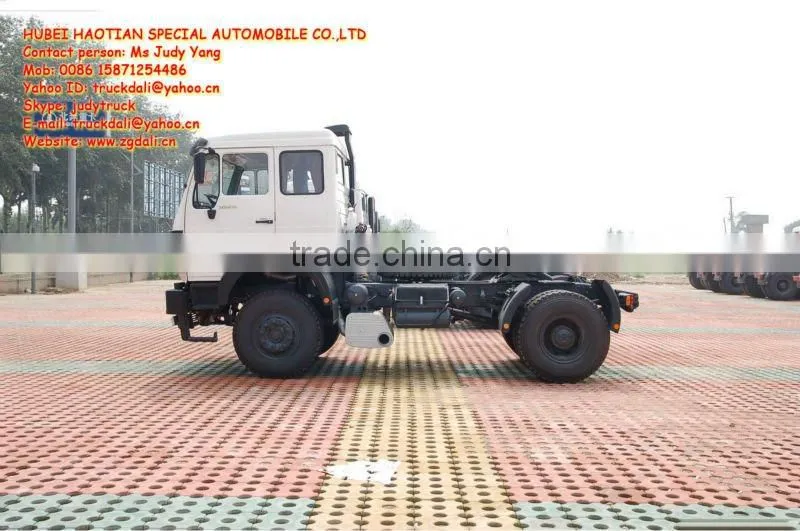

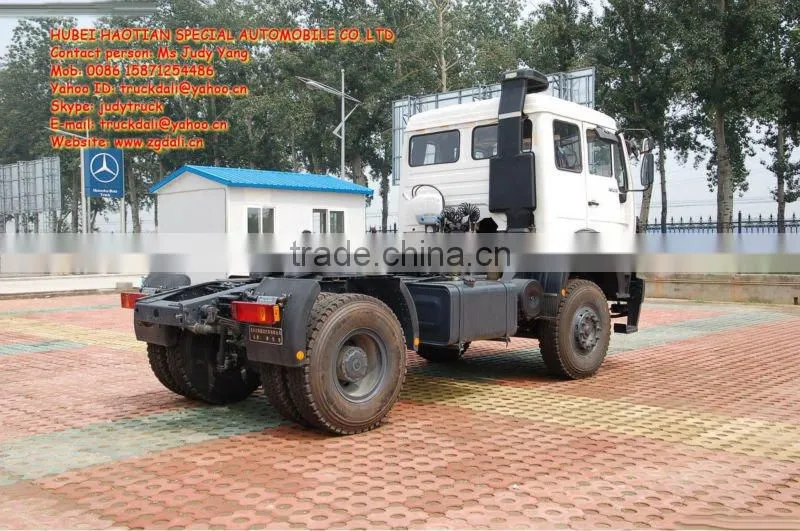

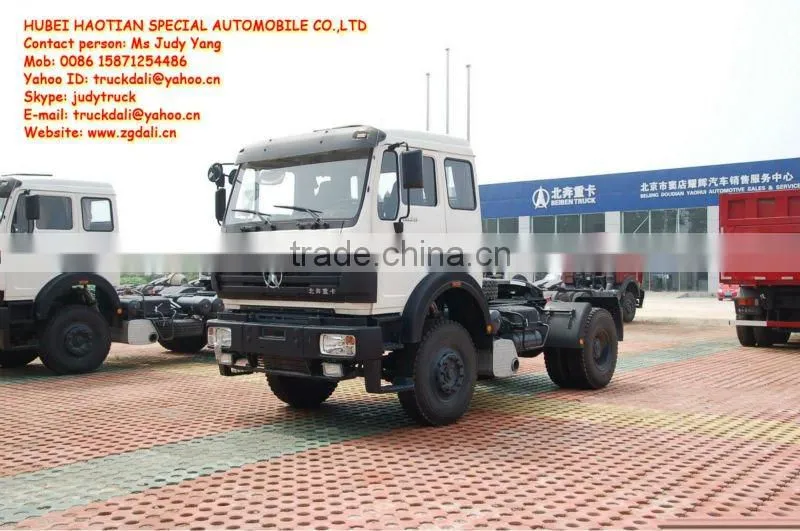

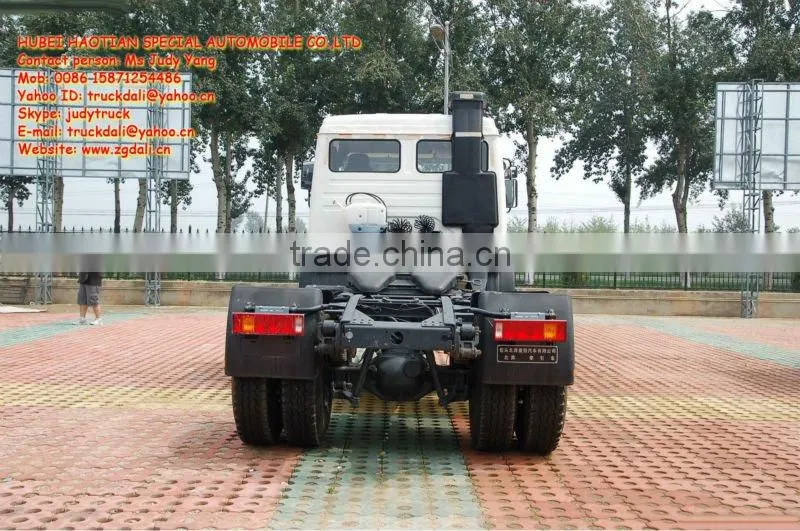

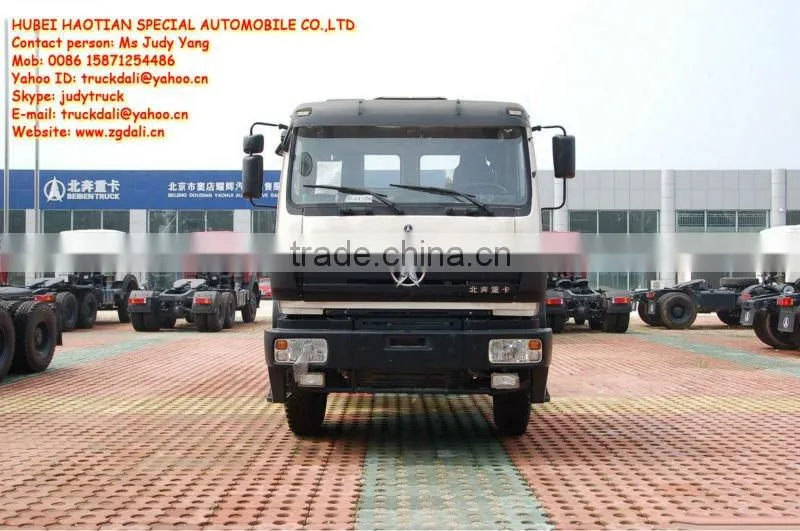

4X2 Beiben Tractor Truck Crane

Name: 4X2 Beiben Tractor Truck Crane
Brand: Beiben
SKU: 106106319

US$ 36,000 - 88,000 MOQ: 2 Units

Key Specifications

Condition:

New

Horsepower:

251 - 350hp

Drive Wheel:

4x2

Hubei Haotian Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Horsepower 251 - 350hp

Drive Wheel 4x2

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Brand Name Beiben

Size 6300x2495x3260

Gross Vehicle Weight 31000

Specifications

4X2 Beiben Tractor Truck Crane
1.Brand:Beiben 4X2
2.Towing wight: 40 Ton
3.Engine:290hp 336hp
4.crane lifting capacity:5T

4X2 Beiben Tractor Truck Crane

Detailed Product Description
4X2 NORTH BENZ TRUCK TRACTOR

Traction type: 4X2
Engine: WD10 290/336HP
Transmission: Fuller
We are mounted a 3ton 6.3T xcmg on this tractor

4X2 Beiben Tractor Truck Crane

4X2 Beiben Tractor Truck Crane
Model	ND4181A35J
Driving type	LHD (Right Hand Drive is optional)
Driver's cab	Long cabin, single sleeper, A/C
Engine	Maker: WEICHAI
	Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling
	Engine model: WP10 series EURO II/EUROIII emission standard
	Maximum output: 290/336HP @2200 rpm
	Number of cylinder:6
	Displacement: 9.726L
Clutch	430mm, hydraulically operating with air assistance
Transmission	FULLER Brand transmission.
Front Axle	Benz front axle 7.5 tons
Rear Axle	Benz 13T double reduction drive axle
Steering	TAS85
Steering	Option: ZF8098, hydraulic steering with power assistance
Wheel & Types	Tyres: 315/80R22.5
	Optional: 12R22.5//12.00R20
	Radial tire and tubeless tire is optional
Electrics	Operating voltage: 24V, negative grounded
Dimensions in mm	Wheel base: 3500
Dimensions in mm	Overall size: 6300×2495×3260
Weight in kg	Kerb weight 5800
Weight in kg	Permissible trailing capacity 18000
Performance	Maximum driving speed(km/h) 90
The manufacture reserves the right of technical alteration/change for better improvement prior notice
