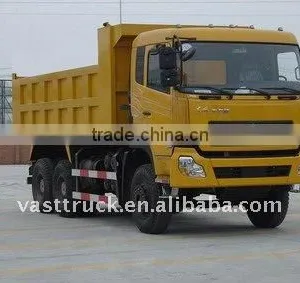

20-30T Dongfeng 6x4 Dump Truck

Name: 20-30T Dongfeng 6x4 Dump Truck
Brand: Dongfeng
SKU: 106097595
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

21 - 30t

Horsepower:

251 - 350hp

Hubei Haotian Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 21 - 30t

Horsepower 251 - 350hp

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Gross Vehicle Weight 25000

Place of Origin Hubei, China

Brand Name Dongfeng

Model Number DLQ3250

Dimensions (L x W x H) (mm) 8700,8900,9100,9300,9400,9500x2500x3250,3450

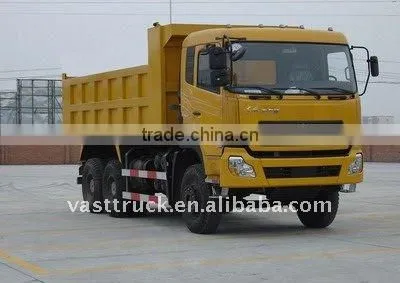

Dongfeng 6x4 Dump truck

Dongfeng Tianlong 6x4 dump truck (20-30T)
Model	DLQ3250	Dimension	8700,8900,9100,9300,9400,9500 ×2500×3250,3450(mm)
Chassis type	DFL3250	Cargo body size	5600,6000,6400,6600,6800,7000 ×2300×950, 900, 850, 800, 800, 750, 750 (mm)
Total mass	25000 (kg)	Approach / departure angle	30/19,30/17,30/15(°)
Rated payload	14000 (kg)	F/R suspension	1500/1600,1500/1800,1500/2000 (mm)
Kerb weight	11130 (kg)	Maximum speed	85(km/h)
Engine	dCi340-30/dCi290-30/ISLe340 30/ISLe315 30/ISLe290 30/YC6M340-30/YC6M290-30
Displacement	11120/11120/8900/8900/ 8900/9839/9839(ml)	Power	250/213/250/232/213/250/215 (kw)
Manufacturer	Dongfeng Cummins Engine Co., Ltd., Guangxi Yuchai Power Co., Ltd.
Emission standard	GB3847-2005,GB17691-2005 EURO3
Number of the axles	3	Front tread	2040 (mm)
Wheel base	4250+1350,4600+1350 (mm)	Rear tread	1850/1850 (mm)
Number of the tires	10	Tire type	11.00-20,11.00R20,12.00-20, 12.00R20
Fuel type	Diesel	Number of the springs	9/13,9/10,10/13
Axle load	4250+1350,4600+1350	Cab Passengers	3,2
