Dongfeng 4x2 Dump Truck

Name: Dongfeng 4x2 Dump Truck
Brand: Dongfeng
SKU: 106097623
Availability: InStock

US$ 30,000 - 45,000 MOQ: 1 Unit

Key Specifications

Drive Wheel:

4x2

Capacity (Load):

11 - 20t

Horsepower:

150 - 250hp

Hubei Haotian Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 4x2

Capacity (Load) 11 - 20t

Horsepower 150 - 250hp

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Engine Capacity 4 - 6L

Gross Vehicle Weight 11800

Place of Origin Hubei, China

Brand Name Dongfeng

Model Number DLQ3120

Dimensions (L x W x H) (mm) 8000x2480x2980

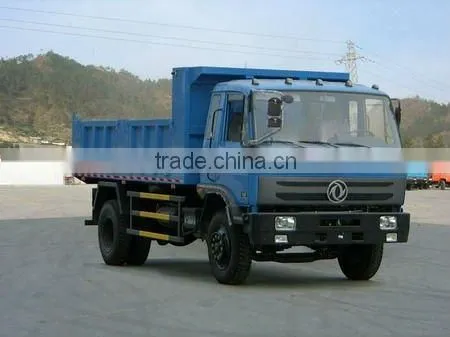

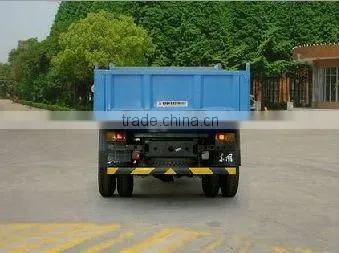

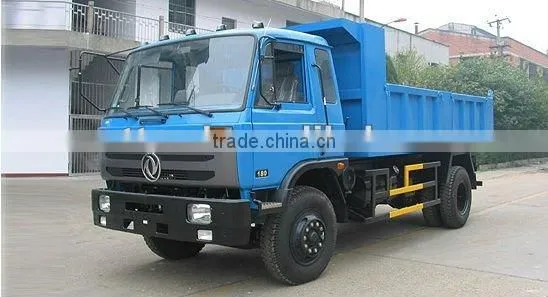

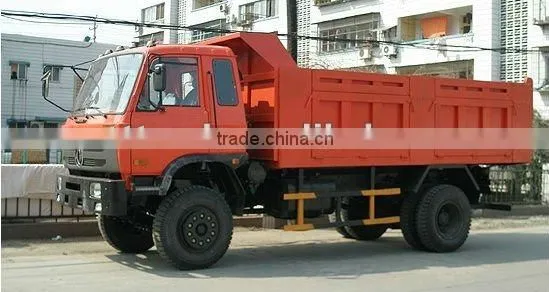

Dongfeng 4x2 dump truck

Dongfeng 4x2 dump truck (10T-18T)
Model	DLQ3120	Dimension	7300,7600,7700,8000×2480×2980 (mm)
Chassis type	EQ3120	Cargo body size	5000,5300,5400,5700×2274×800 (mm)
Total mass	11800 (kg)	Approach / departure angle	30/26,30/24 (°)
Rated payload	5100,5000,4900 (kg)	F/R suspension	1250/1550,1250/1850 (mm)
Kerb weight	6505,6605,6705 (kg)	Maximum speed	85 (km/h)
Engine	ISDe185 30 YC6J180-30 YC4E180-30 ISDe210 30 YC6J190-30 YC6J200-30
Displacement	6700 6500 4260 6700 6500 6500 (ml)	Power	136 132 132 155 140 147 (kw)
Manufacturer	Dongfeng Cummins Engine Co., Ltd.
	Guangxi Yuchai Machinery Co., Ltd.
	Guangxi Yuchai Machinery Co., Ltd.
	Dongfeng Cummins Engine Co., Ltd.
	Guangxi Yuchai Machinery Co., Ltd.
	Guangxi Yuchai Machinery Co., Ltd.
Emission standard	GB3847-2005,GB17691-2005 EURO III
Number of the axles	2	Front tread	1940 (mm)
Wheel base	4500,4700 (mm)	Rear tread	1860 (mm)
Number of the tires	6	Tire type	10.00-20
Fuel type	Diesel	Number of the springs	8/10+8
Axle load	4100/7700 (kg)	Cab Passengers	3
Remark	The dump mode is rear dump.
