Specifications
pneumatic ball valve1.High quality and inexpensive,fast delivery
2.ISO9001, CE certificate,ATEX/CE/MD/CQC

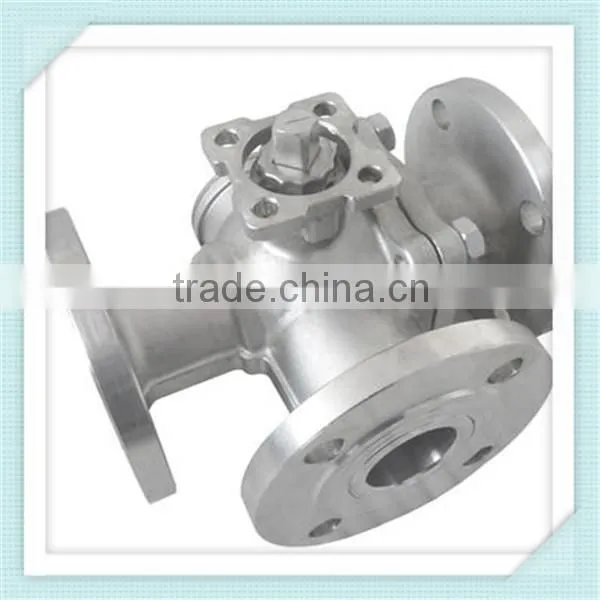

zhitai high quality flanged ball valve / Zhitai Flanged Ball Valve with Pneumatic Actuator / Zhitai 3 Way Flanged End Ball Valve
L type three way ball valve is used for pipelines to switch the flow direction, being able to switch on two flow lines perpendicular with each other. T type three way ball valve May be used to divide, combine or switch the flow direction. T type ball passage is able to switch on three flow lines or switch on two of the three flow lines. T type ball valve may realize two, three or four seats of the functions; however, the specific valve design must draw a distinction between them to realize different function.
Features
1. One piece/three pieces body design
2. L type(3-way and 2 ports)/T type(3-way and 3 ports)
3. Floating ball or trunnion ball
4. Low torque design
Standard
Design and manufacture to BS 5351, API 608
Face to face to API 6D or ASME B 16.10
Flange Ends to B 16.5
Test and Inspection to API 6D or API 598
IF YOU NEED THE CERTIFICATE AND MORE DETAILED INFORMATION ABOUT PNEUMATIC PRODUCTS, PLEASE FEEL FREE TO CONTACT WITH US.
