Pneumatic Butterfly Valve Lining PTFE or PFA With Rack and Pinion Type Pneumatic Actuators,double Action and Spring Return

Pneumatic Butterfly Valve Lining PTFE or PFA With Rack and Pinion Type Pneumatic Actuators,double Action and Spring Return thumbnail-1
Pneumatic Butterfly Valve Lining PTFE or PFA With Rack and Pinion Type Pneumatic Actuators,double Action and Spring Return photo-1
US$ 5 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Zhejiang Zhitai Self-Control Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Butterfly
Pressure Medium Pressure
Power Pneumatic
Material Stainless Steel
Temperature of Media Normal Temperature
Media Water
Port Size DN50-DN800, 2"-32"
Place of Origin Zhejiang, China
Model Number ZTD671(3)H(F,Y)
Brand Name ZT

Specifications

1.CE,ISO9001,ATEX passed
2.rack and pinion type pneumatic actuator

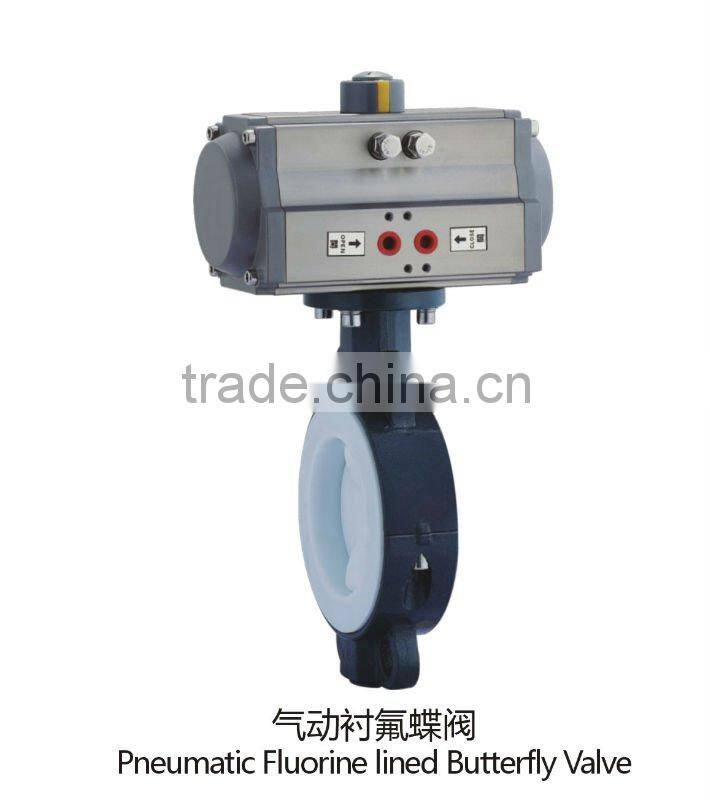

3.lined teflon,PFA
4.body:carbon steel,stainless steel

Pneumatic butterfly valve







Pneumatic actuator

1. The design of rack and pinion double-piston

2.The extruded high-quality aluminum alloy cylinder ,its longer service life and low friction coefficient.

3.Unibody design ,double acting and single acting have the same cylinder and end cap.

4.Four adjusting screws can make the actuator more accurate .

5.Position indicator consistent with VID/VIE3845,NAMUR standards.

6.The gas source interface in line with NRMAR standard.

7.All fasteners are made of stainless steel ,to enable long-term corrosion resistance.

8.The connection parts are in line with new international standards ISO5211 and DIN3337(F03-F25).

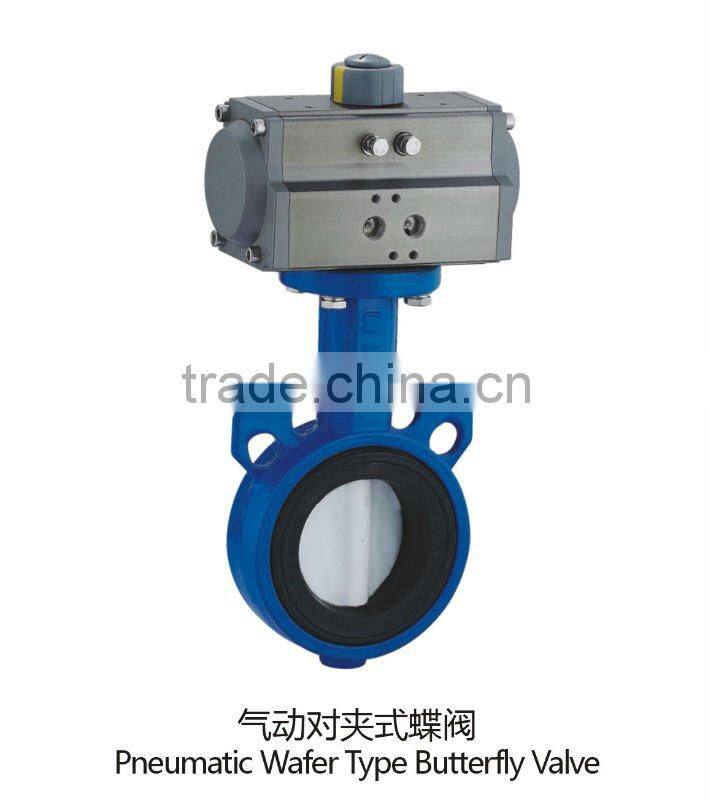

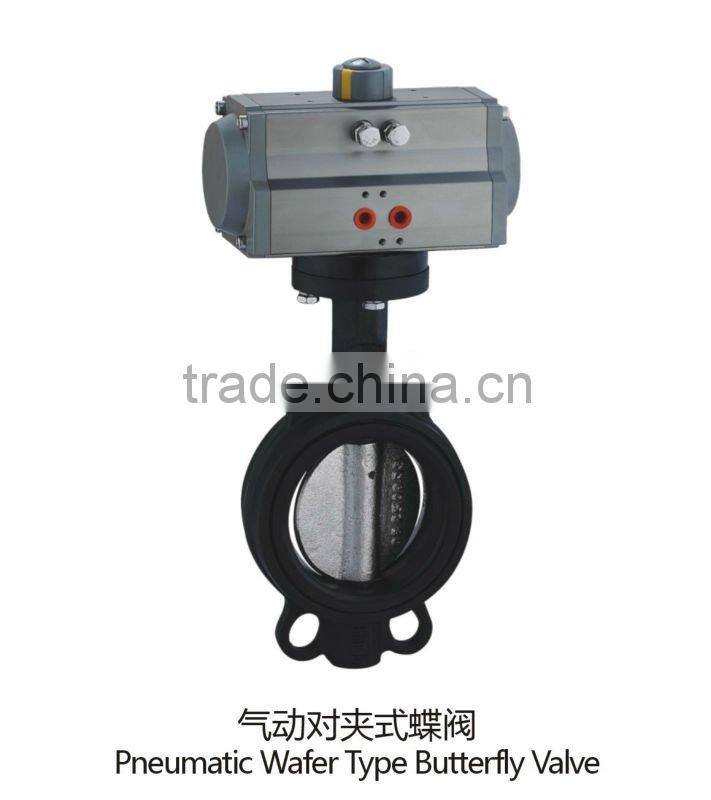

Butterfly valve

Model : ZTD67(4)1X (F, F4, J )

Bore: DN20-1200mm

Pressure: 0.6, 1.0, 1.6, 2.5 Mpa: 150Lb, 300Lb

Connecting: wafer ,flange

Dimension standard: GB, ANSI

Body material: Cast iron, Carbon steel(WCB), Stainless steel(CF8, CF8M)

Seat material: X, PTFE

Mode of action: double-acting, single-acting (spring reposition)

Control: Switch , Adjust .

Selection of Accessories: solenoid valve, locator, limit switch, F.R..L. Combination unit.

                     Manua Device.pneumatic butterfly valve lining PTFE or PFA with rack and pinion type pneumatic actuators,double action and spring returnpneumatic butterfly valve lining PTFE or PFA with rack and pinion type pneumatic actuators,double action and spring returnpneumatic butterfly valve lining PTFE or PFA with rack and pinion type pneumatic actuators,double action and spring return
