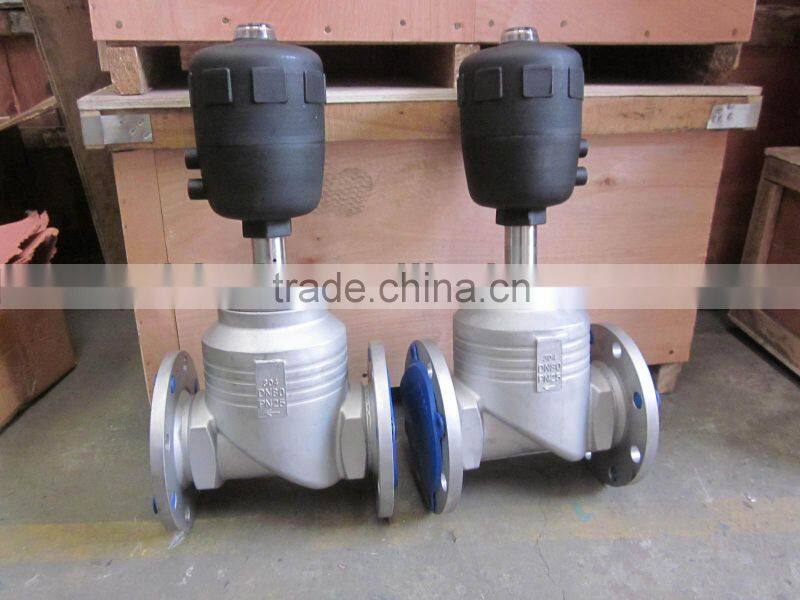

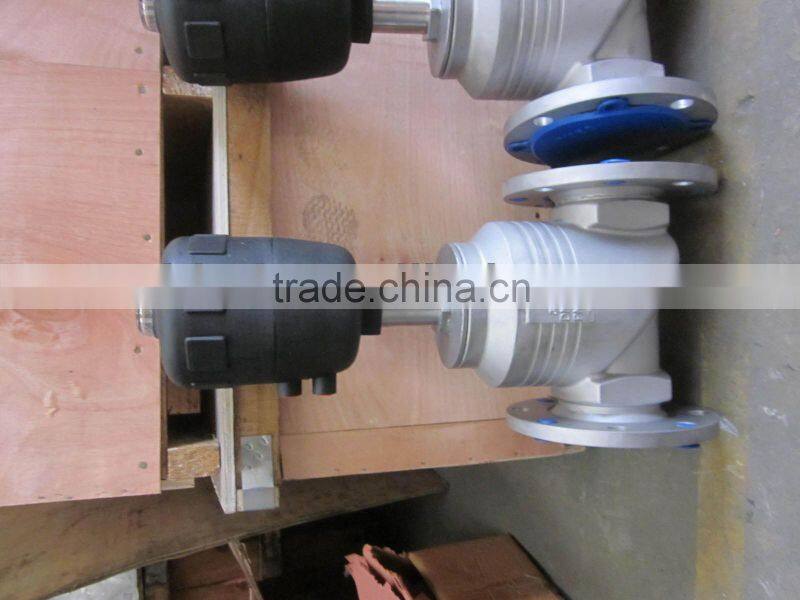

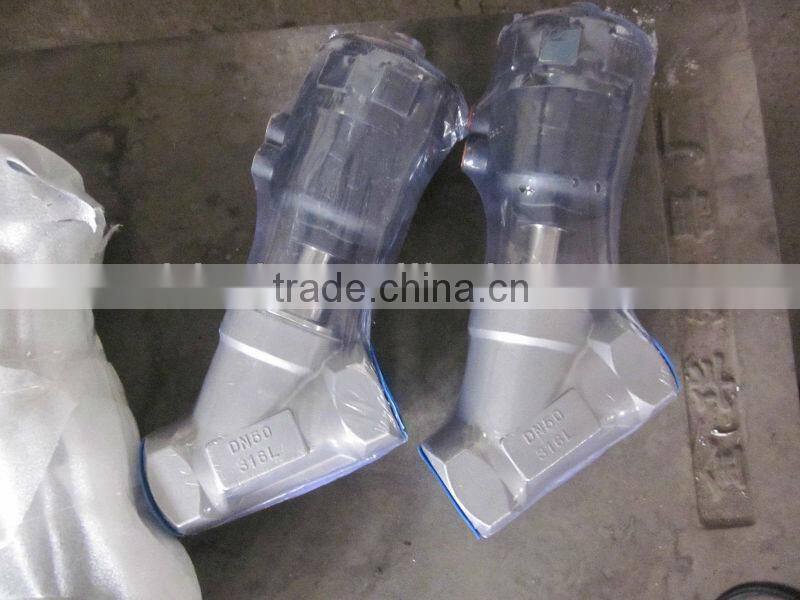

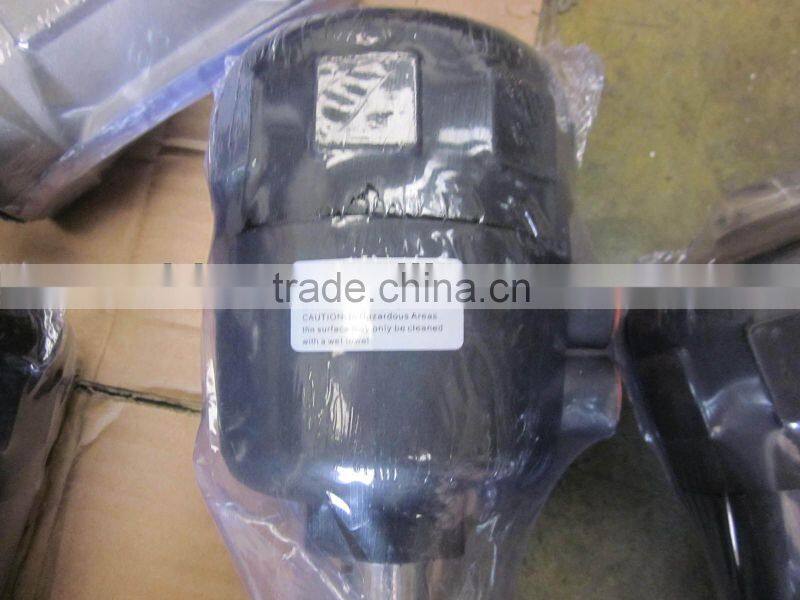

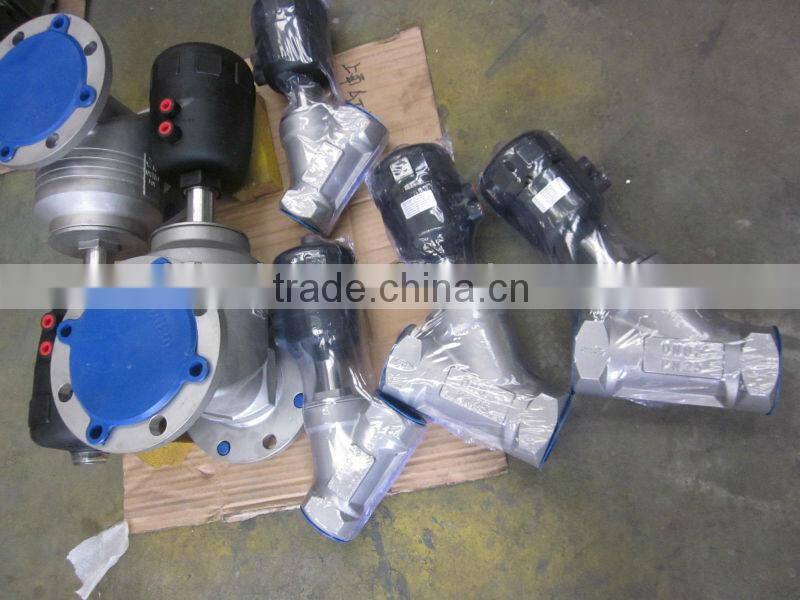

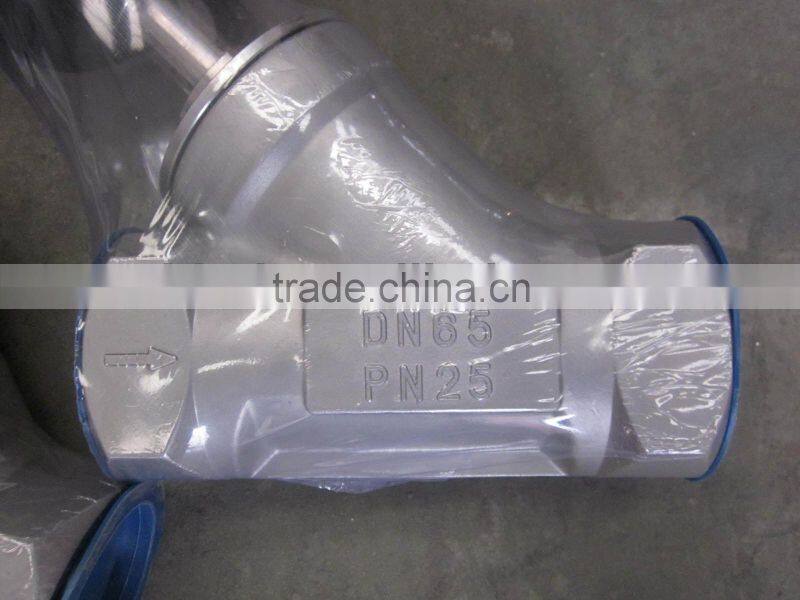

Help CenterPneumatic Angle Seat Valve
US$ 20 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Angle
Pressure:
Other, low, medium, high pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
NB/SH
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pneumatic Actuator,Rack Pinion Type.rotary Quarter Turn,Double Acting And Spring ReturnUS$ 20 - 5,000MOQ: 1 Unit -
AW Series Pneumatic Actuator With High Pressure Butterfly ValveUS$ 10 - 5,000MOQ: 1 Set
-
AW Series Pneumatic Butterfly ValvesUS$ 10 - 5,000MOQ: 1 Set
-
Flanged Ball Valve With Pneumatic ActuatorUS$ 10 - 5,000MOQ: 1 Set
-
AT SERIES Pneumatic Actuator With Flanged Ball ValveUS$ 10 - 5,000MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Angle
Pressure
Other, low, medium, high pressure
Power
Pneumatic
Material
Stainless Steel
Temperature of Media
Other, normal, high, low temperature
Media
Other, gas, oil, water, acid
Port Size
1/2"-3"
Place of Origin
Zhejiang, China
Model Number
ZT2000L
Brand Name
ZHITAI
Specifications
angle seat control valveSize:1/2"~3"
pneumatic/Electric type
Material :stainless steel
Best price and quality
|
Pneumatic Angle Seat Valve Body material: S.S316/S.S304 Actuator material: engineering plastic Seat seal: PTFE/FPM Stem seal: PTFE/FPM Piston seal: FPM/NBR Technical parameter Connection size: DN10—DN50 Thread: 3/8" - 2" Applicable medium: water, neutral gas or liquid, alcohol, oil, organic solvent, steam. |
Temperature of medium: PTFE:-10℃—+180℃ FPM:-10℃ - +100℃ Viscidity: Max600mm2/s Downstream installing/Upstream installing Controlling medium: air/neutral gas Controlling pressure: 0.3 - 0.8MPa Working pressure: 0 - 1.6MPa Please write down the model number based on the explanation on page one |
| Outline Dimension (mm) | |||||||
|---|---|---|---|---|---|---|---|
| DN | G | L | L1 | SW | H | D | Actuator |
| 10 | 3/8" | 55 | 17 | 21 | 120 | 54 | 50 |
| 15 | 1/2" | 70 | 21 | 26.5 | 135 | 63 | 50 |
| 20 | 3/4" | 76 | 23 | 32 | 145 | 63 | 50 |
| 25 | 1" | 90 | 25 | 40 | 155 | 63 | 50 |
| 32 | 1-1/4" | 116 | 32 | 50 | 200 | 81 | 63 |
| 40 | 1-1/2" | 116 | 32 | 55.5 | 230 | 96 | 80 |
| 50 | 2" | 138 | 40 | 68.5 | 250 | 96 | 80 |
| List of Parts | ||
|---|---|---|
| 1.1body | 3.1screw connector | 5.5piston |
| 1.2cylinder | 3.2V sealing | 5.6flange |
| 1.3cylinder head | 3.3seal ring | 5.7seal ring |
| 1.4observation window | 3.4gasket | 5.8gasket |
| 2.1bolt | 3.5spring | 5.9hexagon nut |
| 2.2orifice plate seal | 4.1connecting nut | 5.10spring |
| 2.3seal disc | 4.2seal ring | 5.11position indicator |
| 2.4desc | 4.3lock nut | |
| 2.5stem | 4.4leaf spring | |
