Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Knitting Machine > Medium Staple Double Needle Warp Knitting Machine

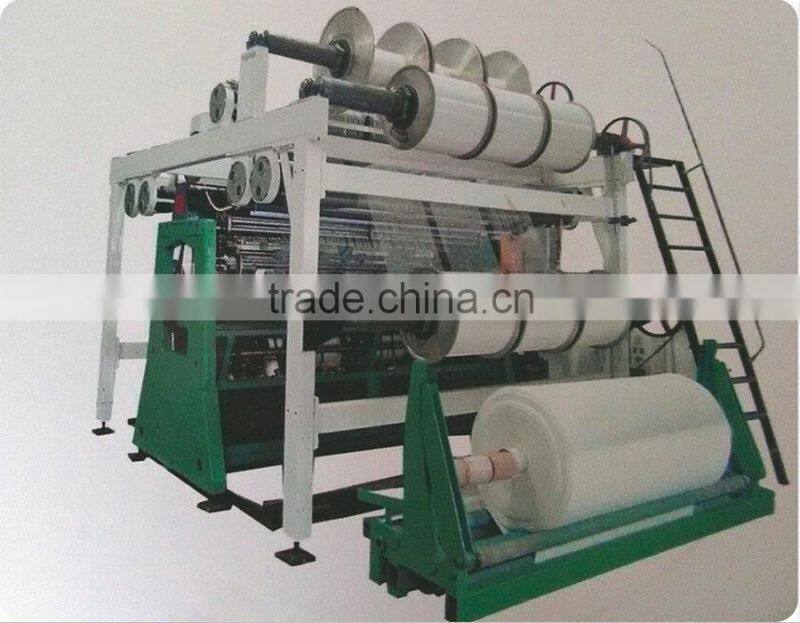

Medium Staple Double Needle Warp Knitting Machine

Name: Medium Staple Double Needle Warp Knitting Machine
Brand: C.H warping
SKU: 106068779
Availability: InStock

Medium Staple Double Needle Warp Knitting Machine thumbnail-1

Medium Staple Double Needle Warp Knitting Machine photo-1

US$ 80,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Product Type:

Other, Household Decorative Fabric

Type:

Terry

Contact Supplier Request Quote Chat Now

Changzhou Changhan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Product Type Other, Household Decorative Fabric

Type Terry

Production Capacity 100

Place of Origin Jiangsu, China

Brand Name C.H warping

Model Number CH5-288

Knitting Style Warp

Knitting Method Double

Computerized Yes

Dimension(L*W*H) 4000*5600*3300

After-sales Service Provided Engineers available to service machinery overseas

Product applications:

Dress knitting

Toy plush

Home textiles

Decoration for cloth and other fabrics.

CH5-288 Medium Staple Double Needle Warp Knitting Machine

Technical Parameters:

Model	Working Width	Overview Dimension	Device Number			Designed Speed
CH5-288-84	84 inches	400056003300	E16	E18	E22	600
CH5-288-100	100 inches	440056003300	E16	E18	E22	600
CH5-288-110	110 inches	480056003300	E16	E18	E22	600
CH5-288-138	138 inches	550056003300	E16	E18	E22	600

Wide working width and other machine gauge would be provided as needed.

♦ Guide Bars:5(6) (4 of them are ground bars, and 1 (2) is pile bar)

♦Knitting yarn feeding devices: 5(6) guide bars adopt two-roller active let-off system, and support respective motion with 5 groups of feeding boxes. Changing gears can offer maximum and minimum yarn feeding; the yarn tension is controlled by the tension springs.

♦Warp beam dimension: 21’’ (the beam for pile yarn could be changed to 42’’ as required by clients)

Maximum diameter of batching: 1270mm

♦Stitch-forming device: composed of two latch-needle bar, two knock-over bars, and two sinker bars as well as 1(2) pile guide bar and 4 ground guide bars .

♦Machine frame: Composed of base machine, left and right wall, beam, middle wall and other parts, base machine adopts box-like structure and is filled with lubricating oil. Stitch forming parts, pattern mechanism, etc. all is installed on the machine frame.

♦Take-up device: four-roller system with one driving gear box composes the take-up device, and different stitch density is controlled by changing gears too.
