Home > Industrial Equipment & Components > Refrigeration Equipment > Industrial Cooling System > Heat Pipe PWM Controller Intel AMD Motherboard 12cm 12V DC Fin Fan CPU Cooler

Heat Pipe PWM Controller Intel AMD Motherboard 12cm 12V DC Fin Fan CPU Cooler

Name: Heat Pipe PWM Controller Intel AMD Motherboard 12cm 12V DC Fin Fan CPU Cooler
Brand: TITAN
SKU: 106053263
Availability: InStock

Heat Pipe PWM Controller Intel AMD Motherboard 12cm 12V DC Fin Fan CPU Cooler thumbnail-1

Heat Pipe PWM Controller Intel AMD Motherboard 12cm 12V DC Fin Fan CPU Cooler photo-1

US$ 27.1 - 33.1 MOQ: 200 Pieces

Key Specifications

Get Latest Price

Application:

Other, CPU cooler

Type:

Heatpipe

Heatsink Material:

Other, Copper & Aluminum

Contact Supplier Request Quote Chat Now

Titan Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application Other, CPU cooler

Type Heatpipe

Heatsink Material Other, Copper & Aluminum

Brand Name TITAN

Model Number TTC-NK85TZ series

Place of Origin Guangdong, China

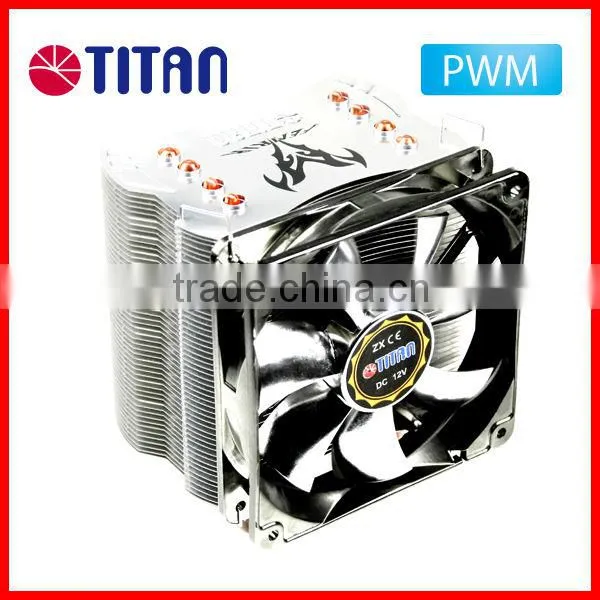

< TTC-NK85TZ series > ( TTC-NK85TZ & TTC-NK85TZ/V2 & TTC-NK85TZ/CS(RB) )

The name of Titan's newly launched CPU cooler, Fenrir, is derived form the giant wolf of Norse mythology.
Fenrir-TTC-NK85TZ has many rich characteristics; comparing with the original heat pipe size at 6mm, Fenrir possesses 4 larger 8 mm diameter copper heat pipes with the direct touch design to maximize the overclocking performance up to 160W and succeed in offering the best cooling performance. To perfect the heat conductive efficiency, the free sample of Royal Grease (0.032C/W) is attached to each package. The 12cm giant fan with built-in PWM speed control technology will operate automatically to solve overheating problems and provide a silent environment.
The Fenrir, especially suitable for Intel LGA1366 and LGA 1156 (TTC-NK85TZ/V2) is absolutely the best thermal solution for your computer!

Features

Universal design: compatible with Intel LGA 775/1156/1366 and AMD K8/AM2 /AM3
PWM intelligent controller: automatically adjust fan to provide wonderful balance between performance and rumble generated from CPU
12cm large fan : cover whole area for system cooling + Superior silent performance at 17dBA only
Heat Pipe Direct Touch: provide the maximum heat conductivity and draw heat away immediately
Unique fin design: reduce air resistance to enhance cooling performance

CPU Support

Support	TTC-NK85TZ	TTC-NK85TZ/V2

AMD Socket AM2+/AM2/AM3/940/939/754	Support !!	Support !!
Intel Socket 775	Support !!	Support !!
Intel Socket 1366	Support !!	Support !!
Intel Socket 1156		Support !!

- For AMD Socket AM2+/AM2/AM3/940/939/754/K8 -

Duo Core AMD Opteron up to1224SE/1356
Athlon64 up to4000+/LE-1660
Athlon64 FX up toFX-62
Athlon64 X2 up to7850/BE-2400/5050e
AMD Phenom X 3 up to8850/8450e
AMD Phenom X 4 up to9950/9450e
Sempron up to 140/LE-1300
AMD Business Class- AMD Athlon Processors 1640B

AMD Athlon II X4 up to 605e/630
AMD Athlon II X3 up to 435/405e
AMD Athlon II X2 up to 250/B24
AMD Phenom II X2 up to 550/B55
AMD Phenom II X3 up to 720/B75/705e
AMD Phenom II X4 up to 965/B95/905e
AMD Business Class- AMD Phenom X4 Quad-Core Processors up to 9750B
AMD Business Class- AMD Phenom X3 Triple-Core Processors up to 8750B
AMD Business Class- AMD Athlon X2 Dual-Core Processors up to 5600B

- For Intel LGA 775 -
Core2 Duo up toE8600
Core2 Extreme up toQX9770 /X6800
Core2 Quad up toQ9650
Pentium D up to960
Pentium Dual Core up toE6500/E6500K
Pentium Extreme up to965
Pentium 4 up to672
Pentium 4 Extreme up to3.73G Hz
Celeron up to365/E3300

- For Intel LGA 1366 -
Core i7 Processor Extreme Edition up toi7-975
Core i7 Processor up to i7-920i7-950

- For Intel LGA 1156 -
Core i7 i7-860~i7-870/i7-860S
Core i5 up to i5-750S
Core i3 i3-530~i3-540

Specification

Outline Dimension
Fan Dimension
Rated Voltage
Rated Current
Power Consumption
Rated Speed
Airflow
Static Pressure
Noise Level
Bearing Type
Life Time

124 x 107 x 156 mm
120 x 120 x 25 mm
12V DC
0.32 A
3.84 W
800 ~ 2150 ± 10% RPM
33.20 ~ 78.41 CFM
0.02 ~ 0.11 Inch H2O
< 17.2 ~ < 39 dBA

Sleeve / One Ball / Two Ball / Z-AXIS
25,000 / 35,000 / 50,000 / 60,000 Hours

Best Choice
