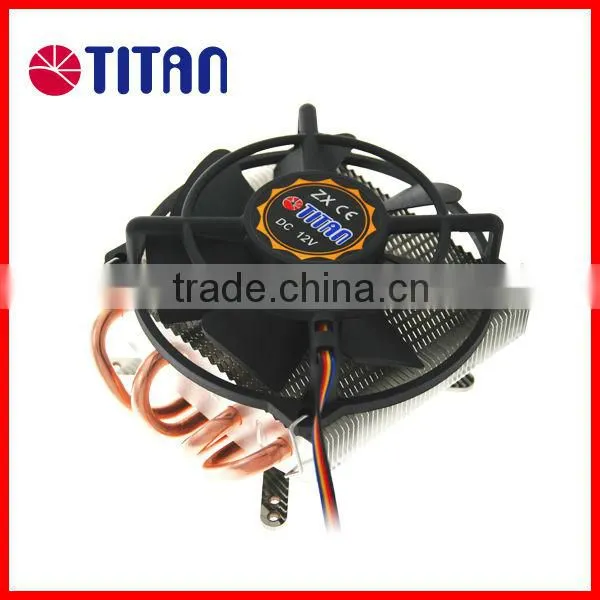

< TTC-NK97TZ series > (TTC-NK97TZ/N & TTC-NK97TZ/NPW)
Are you looking for an excellent low profile heat sink for replacing or building up your Home Theater PC Titan launches low profile cooler series-TTC-NK97 series for upgrading users HTPC systems. These CPU coolers rich in many attractive characteristics such as PWM intelligent fan controller, heatpipe direct contact technology, and its high compatibility, especially applicable for latest Intel Core i7. The height of the cooler is only 6.5cm which is perfect for the small HTPC cases. The unique aluminum fin design combines with 4 x 6mm heatpipes could effectively gather thermal currents and yield sufficient cooling capacity. Moreover, the 10 cm frameless fan designed with suspended concept optimizes heat dissipation, offering a silent operation.
Features
- Low profile design: suitable for the case of Home Theater Personal Computer (HTPC).
- 4x6mm pure copper pipes combine with heatpipe direct contact technology: effectively reduce thermal resistance and enhance heat conduction
- A 10cm noiseless fan with suspension feature: perfect air acceleration and heat
dissipation - Compatibility: Intel LGA 1366 & LGA 775 platforms
- TTC-NK97TZ/NPW: PWM intelligent fan controller: automatically adjusts fan speed, providing a low noise operation
CPU Support
- For INTEL LGA 1366 -
Core i7 Processor Extreme Edition up toi7-975
Core i7 Processor up to i7-920i7-940
- For Intel LGA 775 -
Core2 Duo up toE8600
Core2 Extreme up toQX9770 /X6800
Core2 Quad up toQ9650
Pentium D up to960
Pentium Dual Core up toE5200
Pentium Extreme up to965
Pentium 4 up to672
Pentium 4 Extreme up to3.73G Hz
Celeron up to365/E3300
Specification
-TTC-NK97TZ/N- |
118 x 110 x 67 mm 100 x 100 x 25 mm 12V DC 0.14 A 1.68 W 1500±10%RPM 46.58 CFM 0.05 InchH2O <29 dBA Sleeve / One Ball & One Sleeve / Two Ball / Z-AXIS 25,000 / 35,000 / 50,000 / 60,000 Hours 118 x 110 x 67 mm 100 x 100 x 25 mm 12V DC 0.14 A 1.68 W 800±25% ~ 1500±10%RPM 24.84~46.58 CFM 0.01~0.05 InchH2O <15.3~<29 dBA Sleeve / One Ball & One Sleeve / Two Ball / Z-AXIS 25,000 / 35,000 / 50,000 / 60,000 Hours |
