Application Computer Case
Type Fan
Heatsink Material Other, Copper & Aluminum
Brand Name TITAN
Model Number TTC-NC75TZ/PW(RB)
Place of Origin Taiwan, China

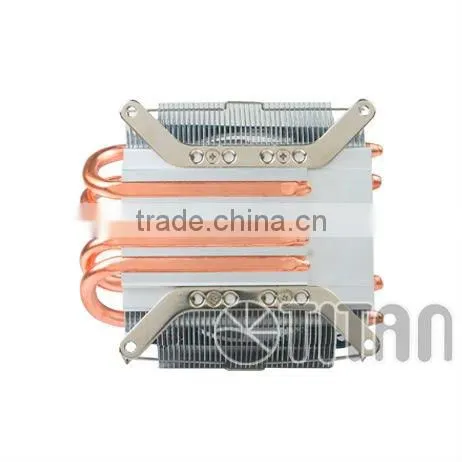

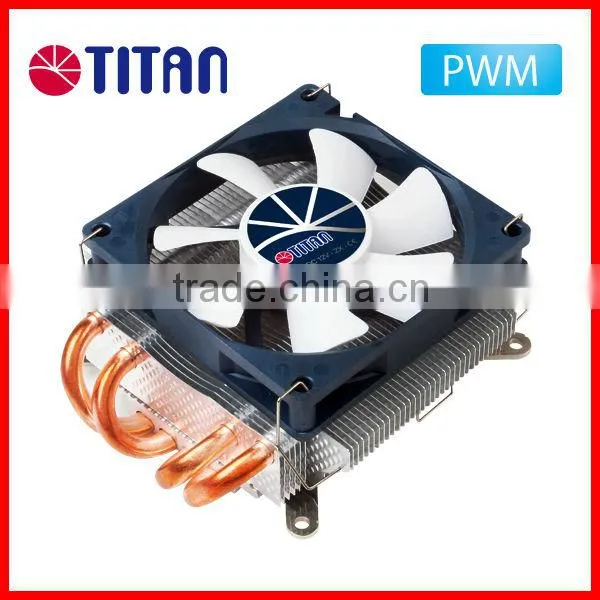

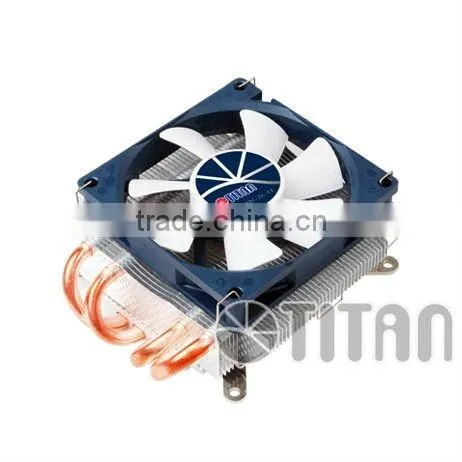

Low profile intel LGA 2011 PWM heat pipe 1U 2U 130W cpu cooler



 -  TTC-NC75TZ/PW(RB) -



Titan launches the low profile CPU cooler-TTC-NC75TZ/PW(RB), 46mm low height design with four 6mm heat pipes and direct contact tech for maximum heat conductivity and supporting TDP 130W. The 46mm low height design makes an ideal cooling for various slim HTPC cases. The PWM intelligent fan controller for a quiet operation. Fully compatible with Intel LGA 2011 and most Intel/AMD systems.





 Features

1.  1.5U low height design for slim type cases.

2.  Four 6mm heat pipes with direct contact tech maximize heat conductivity.

3.  PWM smart fan automatically adjusts the fan speed for a silent operation.

4.   Compatible with Intel LGA 2011/1366/LGA1156/LGA1155/LGA775 and AMD Socket AM3/AM3+/AM2/AM2+/FM1/K8









 CPU Support



For AMD K8/AM2/AM2+/AM3/AM3+/FM1

For Intel LGA 775/1155/1156/1366/2011





 Specification





[TTC-NC65TX(RB)]

Outline Dimension
Fan Dimension
Rated Voltage
Rated Current
Power Consumption
Rated Speed
Airflow
Static Pressure
Noise Level
Connector
Bearing Type
Life Time

106 x 95 x 46 mm

80 x 80 x 15 mm

12V DC

0.45 A

5.4W

1500±25%~3500±10%RPM

14.84~37.1 CFM

0.03~0.15 InchH2O

< 13.8~<35dBA

4-PIN PWM function

Z-axis Bearing

60,000 Hours
