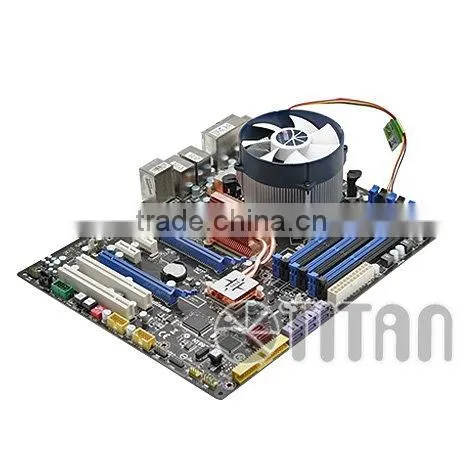

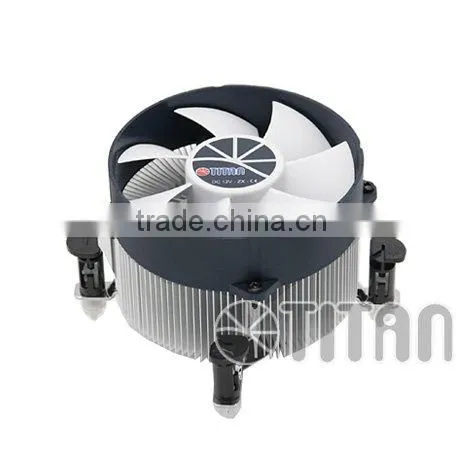

< TTC-NA02TZ series > ( TTC-NA02TZ/R & TTC-NA02TZ/RPW & TTC-NA02TZ/RPW/CU30 )
The Cooling expert, Titan introduces a new CPU cooler which is compatible with coming Intel LGA 1156 socket, the Core i5 platform. The unique radial aluminum fins and noiseless fans both effectively offer optimal heat dissipation. The maximum cooling capacity of TTC-NA02TZ/R that comprises 112 fins achieves 130 Watts. The push-pin clip enables an uncomplicated installation to users. Easy upgrade is not just only a dream!
Features
- Particular radial aluminum fin design perfectly enhances heat dissipation
- Easy installation with push-pin clip

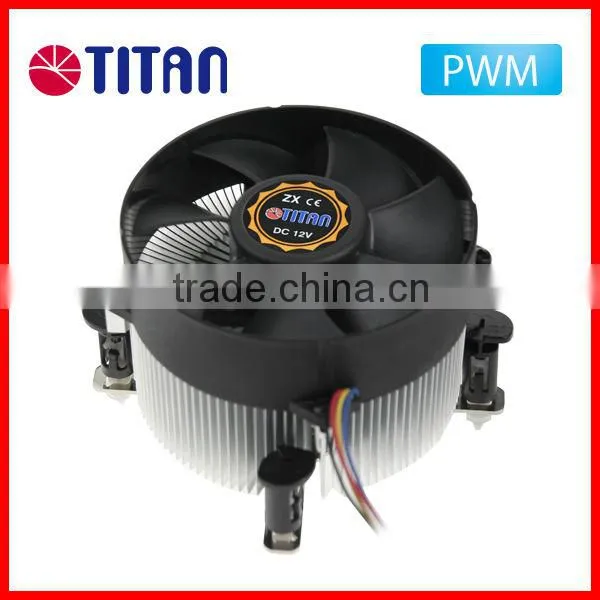

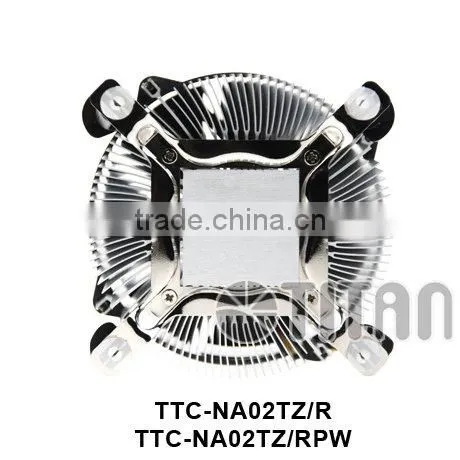

- TTC-NA02TZ/R : Low noise fan for silent operation and high cooling performance

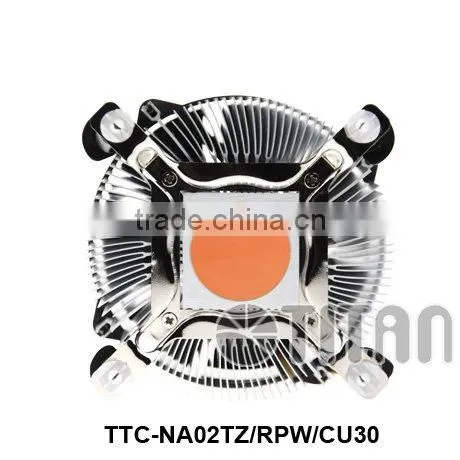

TTC-NA02TZ/RPW: PWM silent fan for a effective cooling and minimum noise TTC-NA02TZ/RPW/CU30: A copper base (30mm) accelerates heat conductivity - Compatible with Intel Core i5 (LGA1156)
CPU Support
- For Intel LGA 1156 -
Core i7 i7-860~i7-870/i7-860S
Core i5 up to i5-750S
Core i3 i3-530~i3-560
Specification
- TTC-NA02TZ/R - |
96 x 96 x 66 mm 95 x 95 x 25 mm 12V DC 0.24 A 2.88 W 2200 ± 10% RPM 40.1 CFM 0.108 InchH2O <27dBA Sleeve / One Ball & One Sleeve / Two Ball / Z-AXIS 25,000 / 35,000 / 50,000 / 60,000 Hours 130W 95 x 95 x 66 mm 95 x 95 x 25 mm 12V DC 0.28 A 3.36 W 900~2800 ± 10% RPM 17.34~49.37 CFM 0.01~0.1 InchH2O <12~31dBA Sleeve / One Ball & One Sleeve / Two Ball / Z-AXIS 25,000 / 35,000 / 50,000 / 60,000 Hours 130W 95 x 95 x 66 mm 95 x 95 x 25 mm 12V DC 0.28 A 3.36 W 900~2800 ± 10% RPM 17.34~49.37 CFM 0.01~0.1 InchH2O <12~31dBA Sleeve / One Ball & One Sleeve / Two Ball / Z-AXIS 25,000 / 35,000 / 50,000 / 60,000 Hours 130W |
