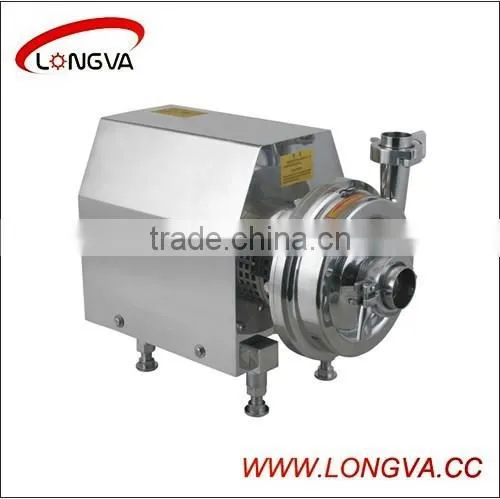

Name: clamp type ss centrifugal pump
1. Spec: 3T-180T, 0.55KW-75KW
2. Material: SUS304 SUS316L, the pump body, pump cover and impeller contact with medium made of SUS316L, SUS304.
3. Standards: DIN, SMS
4. Impeller: Open type impeller, there is no dead end.
5. Operate condition: Health centrifugal pump is a few horizontal transport of high and low level, is not the Self-priming type.
6. Surface treatment: The part contact with mdedium is polished, and other partisglass painted and sand Blasted
7. Max inlet pressure: 0.5MPa
8. Temperature range: -10 to Degree +140Degree (EPDM)
9. Flushed shaft mechanical sealing:
Water pressure: Max 0.1MPa
Water lift: 0.25-0.5L/min
10. Application:
Used in industries such as pharmacy,alcohol,foodstuff chemical and beverage to deliver liquild in small flow with high presure and high pressure filtering.
To choose perfect products, please confirm:
1. Inlet/outlet size.
2. Flow rate.
3. Lift.
4. Motor Power.
5. Voltage.
6. Connection End.
7. Medium.
