Pipe type HFC-227ea/FM200 automatic fire suppression system from factory direct sell

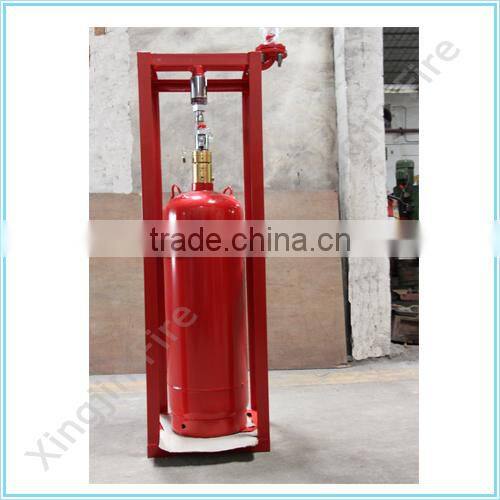

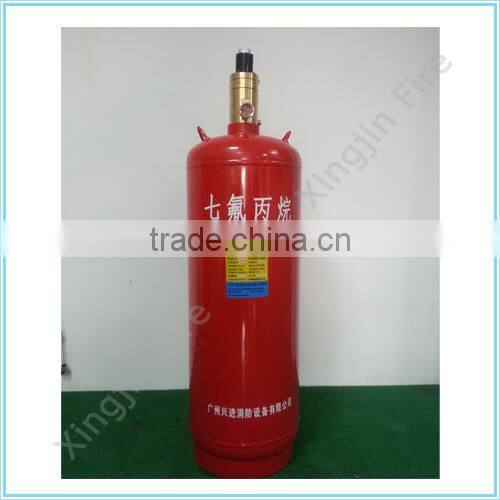

Product Show
----------------------------------------------------------------------------------
Product Introduction
----------------------------------------------------------------------------------
• Automatic HFC-227ea/FM200(Heptafluoropropane) fire extinguishing system is a set of fire extinguishing,
automatic control and fire detection in one system which is the modern intelligent automatic fire
extinguishing device.
• HFC-227ea/FM200 (Heptafluoropropane) is a kind of colourless, tasteless, not conduct electricity and no
secondary pollution gas.
• The ozone-depleting potential value is zero.
• Cleanness, low toxicity, good electrical insulation, higher fire extinguishing efficiency.
• It is currently an ideal substitute for the halon extinguishing agent.
Technical Parameter
-----------------------------------------------------------------------------------
No. |
Item |
4.2MPa System Parameter |
5.6MPa System Parameter |
1 |
Capacity |
40L,70L,100L,120L... |
70L,90L,120L... |
2 |
Filling Pressure |
4.2MPa |
5.6MPa |
3 |
Discharge Time |
≤10s |
≤10s |
4 |
Filling Density |
≤950KG/M3 |
≤1080KG/M3 |
5 |
Nitrogen Pressure of Driving Device |
6.0±1.0Mpa(20℃) |
6.0±1.0Mpa(20℃) |
6 |
Power |
DC24V/1.6A |
DC24V/1.6A |
7 |
Starting Mode |
Automatic,Electrical manual, Mechanical emergency manual |
Automatic,Electrical manual, Mechanical emergency manual |
8 |
Condition of Cylinder Room |
Temperature: -10℃—50℃ Relative Humidity:≤97% |
Temperature: -10℃—50℃ Relative Humidity:≤97% |
9 |
Max. Working Pressure |
5.3MPa |
8.0MPa |
10 |
Min. Working Pressure |
4.2MPa |
4.6MPa |
Application
-----------------------------------------------------------------------------------
• Computer room, communication room, power distribution room, library, archives, Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas source before
extinguishing occur, etc.

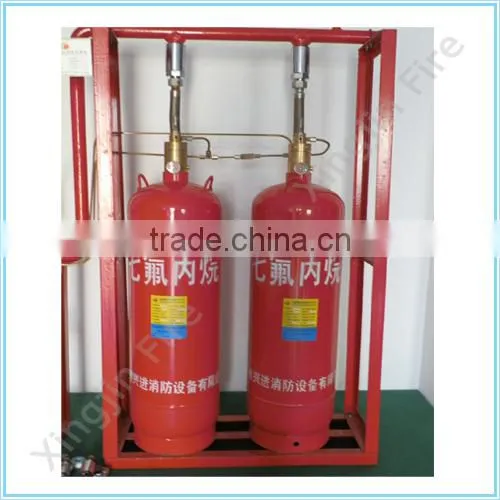

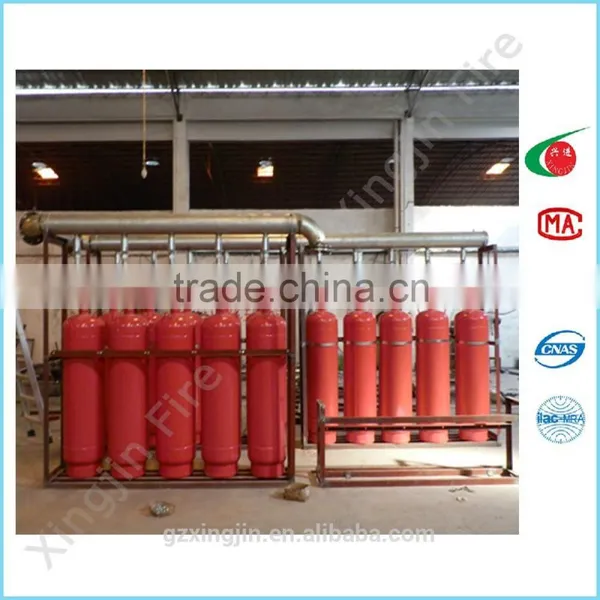

System Composition
-----------------------------------------------------------------------------------
• Storage cylinder, storage cylinder group frame, the container valve, solenoid valve,etc
Approved Standards
-----------------------------------------------------------------------------------
• DBJ 15-23-1999 "Heptafluoropropane (HFC-227ea/FM200) clean gas fire extinguishing system design
specification"
• ISO 14520-9 "Gas fire extinguishing system - physical performance and system design''
• GB/T 28001-2011 / OHSAS 18001:2007
• GB/T 19001-2008 / ISO 9001:2008
• CMA, CAL,ILAC-MRA,CNAS
Why Choose Us
-----------------------------------------------------------------------------------
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
-----------------------------------------------------------------------------------
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
-----------------------------------------------------------------------------------
• Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, Produce in accordance with per client's requirement.
• Q: Where is your factory located?how can i visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Very welcome you to come our factory.
