Gas fire extinguishing equipment wholesale be filled with FM200/HFC-227ea
Product Show
----------------------------------------------------------------------------------
Product Introduction
----------------------------------------------------------------------------------
• Automatic HFC-227ea/FM200(Heptafluoropropane) fire extinguishing system is a set of fire extinguishing,
automatic control and fire detection in one system which is the modern intelligent automatic fire
extinguishing device.
• HFC-227ea/FM200 (Heptafluoropropane) is a kind of colourless, tasteless, not
conduct electricity and no secondary pollution gas.
• The ozone-depleting potential value is zero.
• Cleanness, low toxicity, good electrical insulation, higher fire extinguishing efficiency.
• t is currently an ideal substitute for the halon extinguishing agent.
Technical Parameter
-----------------------------------------------------------------------------------
No. |
Item |
4.2MPa System Parameter |
5.6MPa System Parameter |
1 |
Capacity |
40L,70L,100L,120L,150L,180L,... |
70L,90L,120L... |
2 |
Filling Pressure |
4.2MPa |
5.6MPa |
3 |
Discharge Time |
≤10s |
≤10s |
4 |
Filling Density |
≤950KG/M3 |
≤1080KG/M3 |
5 |
Nitrogen Pressure of Driving Device |
6.0±1.0Mpa(20℃) |
6.0±1.0Mpa(20℃) |
6 |
Power |
DC24V/1.6A |
DC24V/1.6A |
7 |
Starting Mode |
Automatic,Electrical manual, Mechanical emergency manual |
Automatic,Electrical manual, Mechanical emergency manual |
8 |
Condition of Cylinder Room |
Temperature: -10℃—50℃ Relative Humidity:≤97% |
Temperature: -10℃—50℃ Relative Humidity:≤97% |
9 |
Max. Working Pressure |
5.3MPa |
8.0MPa |
10 |
Min. Working Pressure |
4.2MPa |
4.6MPa |
Application
-----------------------------------------------------------------------------------
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.

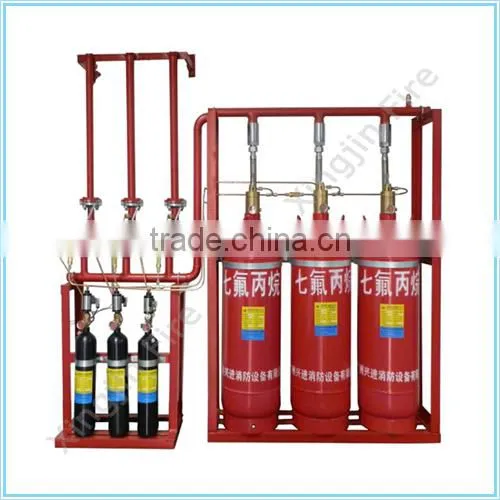

System Composition
-----------------------------------------------------------------------------------
• Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reduceing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.
Approved Standards
-----------------------------------------------------------------------------------
• DBJ 15-23-1999 "Heptafluoropropane (HFC-227ea/FM200) clean gas fire extinguishing system design
specification"
• ISO 14520-9 "Gas fire extinguishing system - physical performance and system design''
• GB/T 28001-2011 / OHSAS 18001:2007
• GB/T 19001-2008 / ISO 9001:2008
• CMA, CAL,ILAC-MRA,CNAS
Why Choose Us
-----------------------------------------------------------------------------------
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
-----------------------------------------------------------------------------------
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
-----------------------------------------------------------------------------------
• Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, Produce in accordance with per client's requirement.
• Q: Where is your factory located?how can i visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Very welcome you to come our factory.
