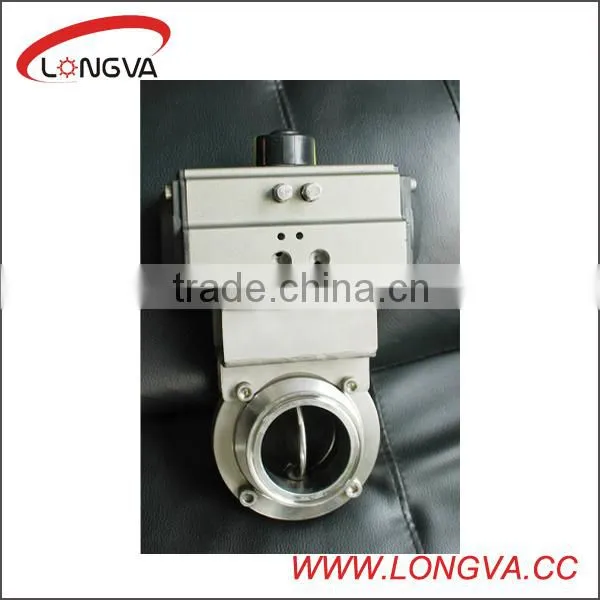

Double Acting Pneumatic Actuator Butterfly Valve
US$ 10 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Actuator
Place of Origin:
Zhejiang, China
Model Number:
Longva860
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Single Acting Pneumatic Rotary ActuatorUS$ 10 - 200MOQ: 1 Piece -
Rack and Pinion Double Acting Pneumatic Valve ActuatorUS$ 10 - 200MOQ: 1 Piece
-
Double Acting Ball Valve Rotary ActuatorUS$ 10 - 200MOQ: 1 Piece
-
Double Acting AT Pneumatic Valve ActuatorUS$ 10 - 200MOQ: 1 Piece
-
Rack and Pinion Quarter Turn ActuatorUS$ 10 - 200MOQ: 1 Piece
Type
Actuator
Place of Origin
Zhejiang, China
Model Number
Longva860
Brand Name
LONGVA
Name: double acting pneumatic actuator butterfly valve
1. The parameters of pneumatic actuator
| Material | aluminium alloy body |
| Size | Match with DN20 - DN350 butterfly valve, ball valve, and other valves. |
| Working pressure | 2.5 bar to 8 bar ,Max Pressure: 10bar |
| Torques | 9.7Nm up to 6421Nm |
| Temperature | -20°C to + 90°C |
| Rotation | 0º to 90º ± 4 ° |
2. Features:
- Dual piston rack & pinion design
- Double acting and spring return
- Die-casting cylinder and piston adopt the aluminium alloy hard anodized,providing optimum strength and corrosion resistance.
- Permanently lubricated units .
- Pre-loaded spring cartridges for safe efficient use of actuator.
- Valve mounting and drive dimensions according to the ISO 5211/DIN 3337.
- Mounting for solenoid valves and position signalers to the NAMUR standard(VDI/VDE3845).
To choose perfect products, please confirm:
1. Valve type.
2. Valve size.
3. Valve pressure.
4. Doble acting or sing acting?
5. Medium.
