Home > Consumer Electronics > Water Heater & Components > Solar Water Heater > Solar Collector:vacuum Glass Tubes for Solar Water Heater for Home Solar Systems

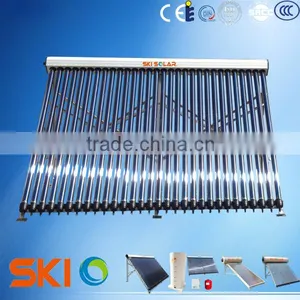

Solar Collector:vacuum Glass Tubes for Solar Water Heater for Home Solar Systems

US$ 100 - 300 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Evacuated Tube

Pressure:

Pressurized

Heating System:

Batch / ICS (Passive)

Contact Supplier Request Quote Chat Now

Changzhou SKI Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Evacuated Tube

Pressure Pressurized

Heating System Batch / ICS (Passive)

Connection Type Split

Installation Other, Freestanding, Freestanding

Housing Material Stainless Steel

Certification CE

Capacity 300, 110-300L

Place of Origin Jiangsu, China

Brand Name SKI

Model Number SKI-CA

Circulation Type Indirect / Closed Loop (Active)

Solar collector:vacuum glass tubes for solar water heater for home solar systems

Product Information

Specifications

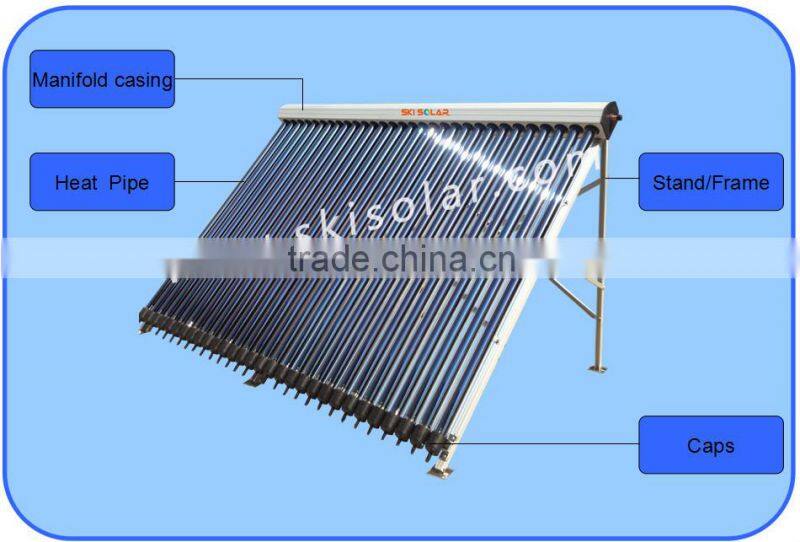

MODEL	Heat pipe solar collector

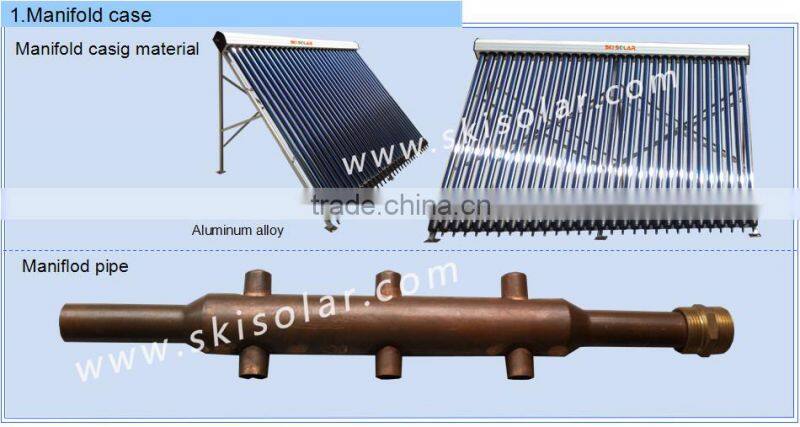

Manifold casing material	aiuminum alloy,thickness:2mm	Lowest working temperature	-40degree
Manifold pipe	copper.Diameter:35mm,thickness:1mm	Working pressure	7bar/0.7MPa

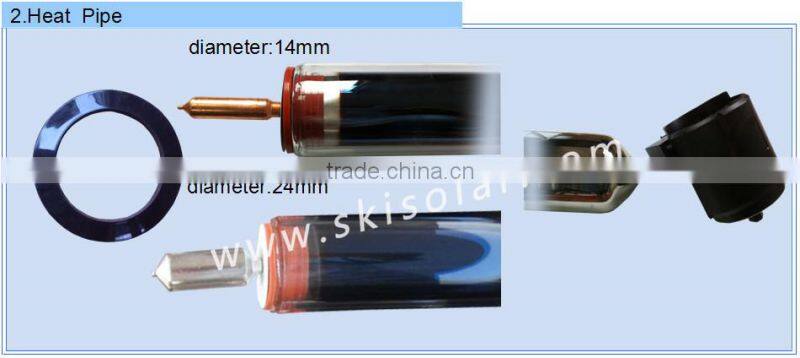

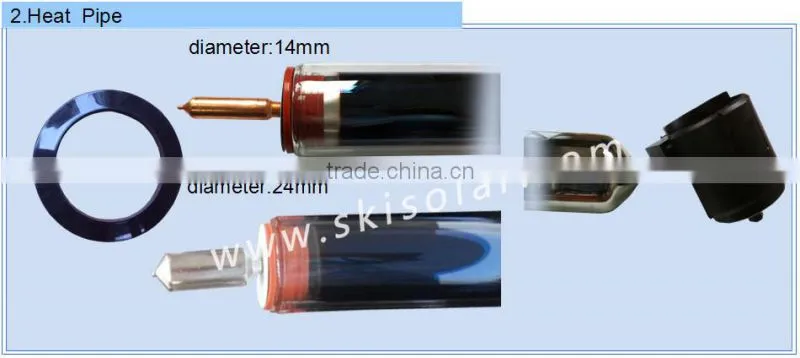

Heat pipe	ø47mm1500mm;ø58mm1800mm	Permissible wind	30m/s

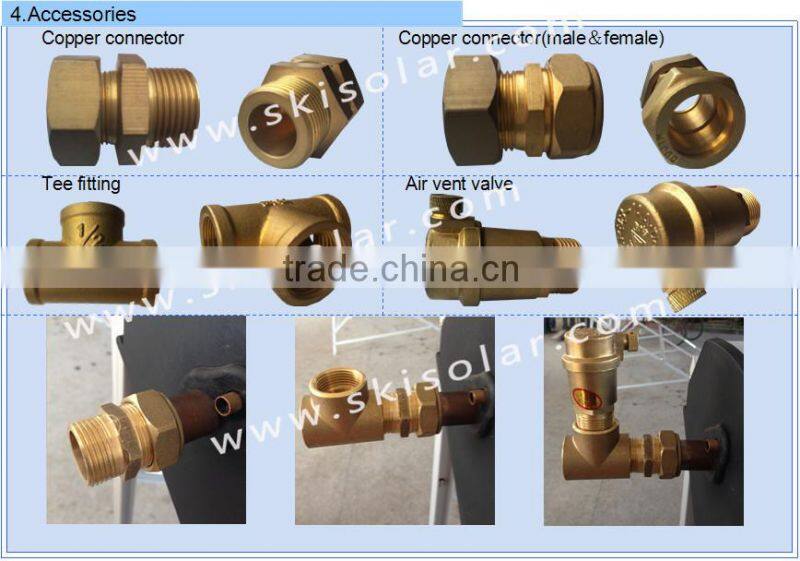

Header pipe material	copper	Needed accessories	copper connector,copper connector(male&female),tee fitting,air vent valve

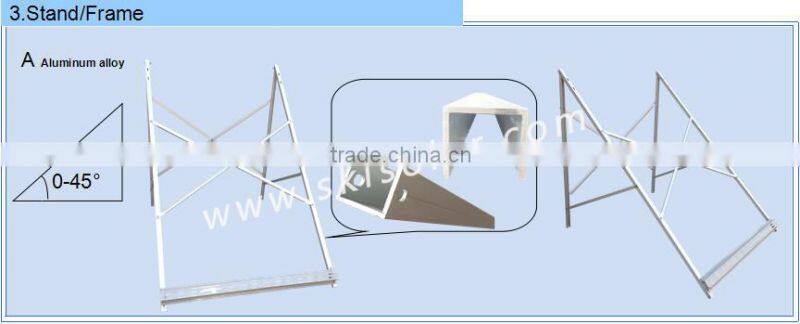

Frame and Frame angle	aluminum alloy,thickness:2.5mm, 0-45°	Hail resistance	20mm

Model	Absorbing area(m2)	Heat pipe			Total Capacity	Loading Quantity.(Sets)
Model	Absorbing area(m2)	Diameter	Length	Number	Total Capacity	20'GP	40'GP	40'HQ
SKI-CA 58/1800-12	1.99	ø58mm	1800mm	12	96L	135	315	330
SKI-CA 58/1800-15	2.48	ø58mm	1800mm	15	120L	115	268	288
SKI-CA 58/1800-18	2.66	ø58mm	1800mm	18	144L	96	223	235
SKI-CA 58/1800-20	2.98	ø58mm	1800mm	20	160L	86	198	215
SKI-CA 58/1800-24	3.56	ø58mm	1800mm	24	192L	73	170	185
SKI-CA 58/1800-30	4.43	ø58mm	1800mm	30	240L	56	135	146

Hot Sale Area

Company History

Changzhou SKI Solar Energy Co.,Ltd.located in Changzhou,jiangsu province,which is only 180KMs far away from the biggest city-Shanghai.Our company is an OEM/ODM manufacturer in the R&D,production and marketing of solar products. We are one of the largest solar manufacturers and exporters of solar water heaters in China. It is with rich technical force,well equipments and a number of high-precision mechanized production lines.It has a production capacity of 10000 sets solar water heaters annually,ranking the size of the domestry industry forefront.The products have been exported to over one hundred countries such as USA,Europe and so on.Our products won great acclain from our clients.

The main business scope of the company incudes heat pipes,glass vacuum tubes,integrated preesurized solar water heaters,separated pressurized solar water heaters and solar collectors and so on.In solar light and heat areas,the company successfully developed and launched the inner tank with porcelain enamel coating technology,which cooperates with the most advanced polyurethane foam technology,leading solar light and heat industry into a "new insulation age"and becoming the pioneer in the industry.

In December,2006,our new generation solar water heater with blue color-titanium gold tank has been published,raising a "new revolution" in solar industry. By applying the advanced German technology and abundant fund, our new products combine and upgrade the advantages of the same one in the markets after cooperating with famous university and modifying by experts and technical personnel, which made our products better quality and the pioneer in the same products.

Certificates

FAQ

1- What is your Delivery Time?

LCL order:7-10days. Full container order:15-20days.

2- What is your Guarantee Time?

3years; Provide you with some accessories,

3- Can you accept OEM and ODM ?

YES, printing your LOGO on the package.

4- What is your payment term?

We accept T/T or L/C.

5-What is your MOQ?

1 sets

6-How do you pack?

LCL order in plywood case Full container order in high quality export carton

7-What is your FOB port?

Shanghai port.

8-What is your monthly production capacity?

1000 sets

9-What is your shipping term?

By sea/Air/Rail/Truck

10-Do you any additional services?

YES!

We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders, dusting rings, silicon rings, screws etc. And we can offer logo design, Products Advertising Design etc services free.
