solar collector panel integrate pressurized solar water heater
What's the details of our solar panel water heater system?
1. Inner tank: made of enamel, two times enamel coating makes the product more durable
2. Outer tank: made of colored steel(colored can be chosen by the client)
3. Insulation: polyurethane, 50mm thickness. Heat preversation for 72 hours.
4. Stand: flat roof or slope roof. can be designed combined with the house, wind resistant.
5. flat panel: beautiful in design, high tempered glass.
What's pre-heated solar energy system?
| Model | SKI-2.0-80 |
| Collector Dimension(mm) | 2000 x 1000 x 80 |
| Overall area(m2) | 2.0 |
| Aperature area(m2) | 1.84 |
| Absorber area(m2) | 1.84 |
| Fluid capacity | 1.8L |
| Header dimension(mm) | Φ22 |
| Welding way | Laser welding |
| Max working pressure | 0.6mpa |
| Absorber material | Aluminium/Full plate |
| Absorber coating | Blue selective coating |
| Absorption | 95% |
| Emittance | 5% |
| Insulation material | Fibre glass |
| Insulation thickness(mm) | back:30 |
| Transmittance | 92% |
| Glazing material | low iron tempered textured glass 3.2mm |
Frame |
Aluminium alloy |
| Back plate | Aluzinc steel |
| Frame color | Silver/Black/Brown |
| Sealing | Seilicon glue |
| Net weight(kg) | 31 |
What's the advantages of enamel water tanks?
What's the specification of our flat panel water heater system?
| Model | PEF-100L | PEF-150L | PEF-200L | PEF-300L |
|
Flat Panel
1000 x 2000 x 80mm
|
One pcs
|
One pcs
|
Two pcs
|
Two pcs
|
| Absorbing Area | 2m2 | 2m2 | 4m2 | 4m2 |
| Inner tank dimension | 380mm | 440mm | 440mm | 440mm |
| Outer tank dimension | 480mm | 540mm | 540mm | 540mm |
| Tank length | 1060mm | 1200mm | 1550mm | 2200mm |
| Packing size (Tank) | 1160 x 480 x 480mm | 1300 x 590 x 560mm | 1650 x 590 x 560mm | 2300 x 590 x 560mm |
| 20ft container | 52 sets | 40 sets | 27 sets | 23 sets |
| 40HQ container | 126 sets | 97 sets | 66 sets | 55 sets |

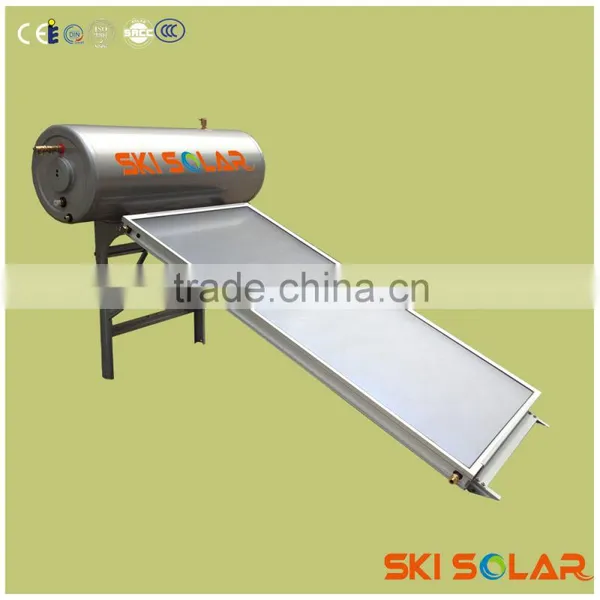

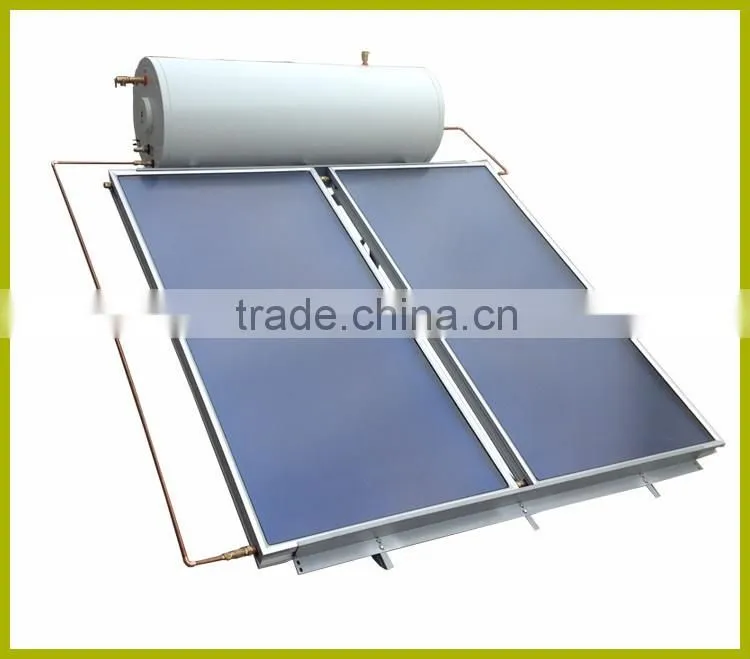

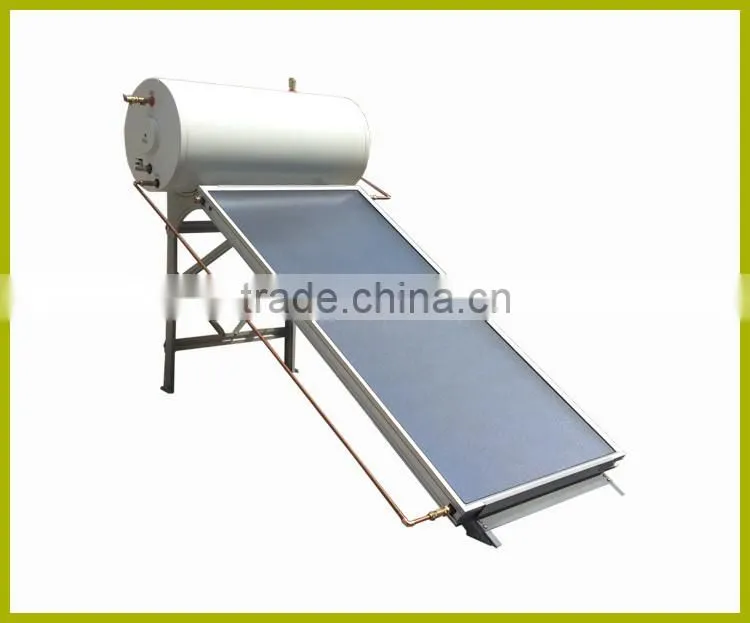

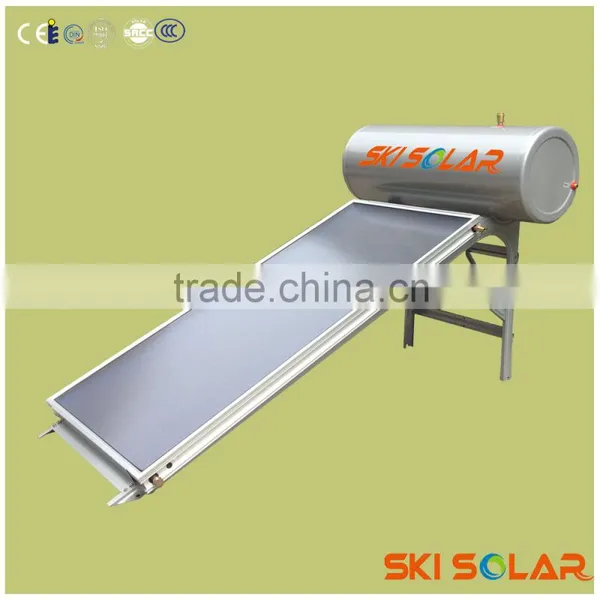

Product Photos
What's the application of our flat panel water heater system?
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)

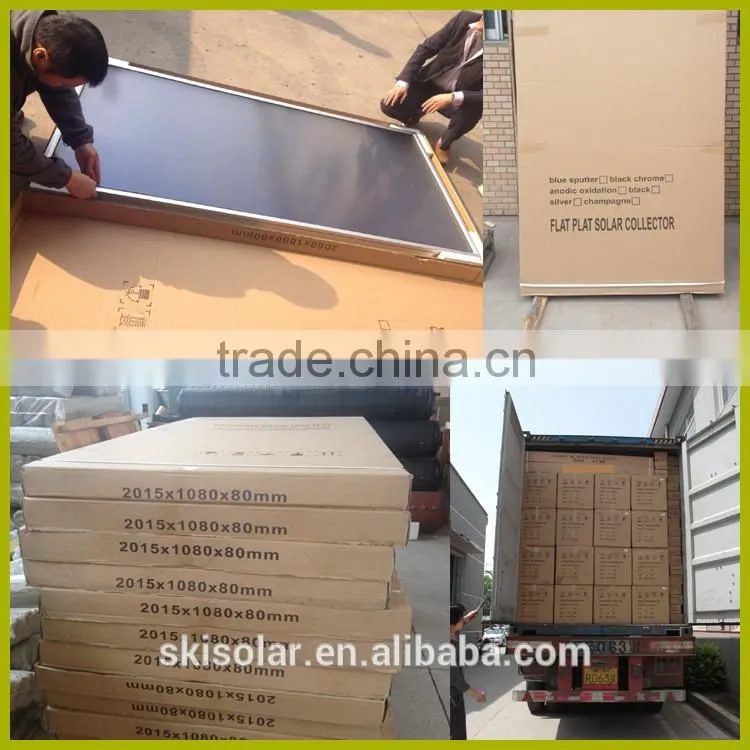

Shipping
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
1.We are Alibaba Assessed 9 years Gold Supplier.
2.We are a factory manufacturing solar water heaters,best production capability ,best quality control, Best Service .
3.Inspected by the Inspection Institution of TUV.
4.100% QC inspection Before Shippment.
5. CE/ISO/EN 12975 listed,competitve price.
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q3 :Do you have inspection procedures for solar water heaters?
A:100% self-inspection before packing.
A:Sure,welcome to visit our factory.
Here is our factory address:Niutang Industrial Park, Wujin District, Changzhou, Jiangsu, China.
Hotel booking service is available.
