Underground Electrofusion Tee PE Pipe Gas Fitting
- Ningbo Shanghai or as required
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Material | Other, PE100 or PE80 | Technics | Other, Injection Molding | |
| Type | Other, Elbow,Tee,Flange,Coupling,Saddle, etc., Elbow,Tee,Flange,Coupling,Saddle et | Place of Origin | China | |
| Model Number | DN20-630mm | Brand Name | CR | |
| Connection | Other, Electrofusion | Shape | Other, Coupler,Elbow,Tee,Cap,Saddle | |
| Head Code | Other, Round |
Product Description
Underground Electrofusion Tee PE Pipe Gas Fitting
Features:
1.Raw material:PE100 or PE80
2.Color:black,yellow or as required
3.Size:please see the following table
4:Connecting way:electrofusion welding
5.Advantage:ODM.OEM
6.Pressure:PN16 (SDR11),PN10 (SDR17.6)
7.Product feature:light weight,high strengh, low resistance,
corrosion resistance,easy installation, long lifespan,low cost

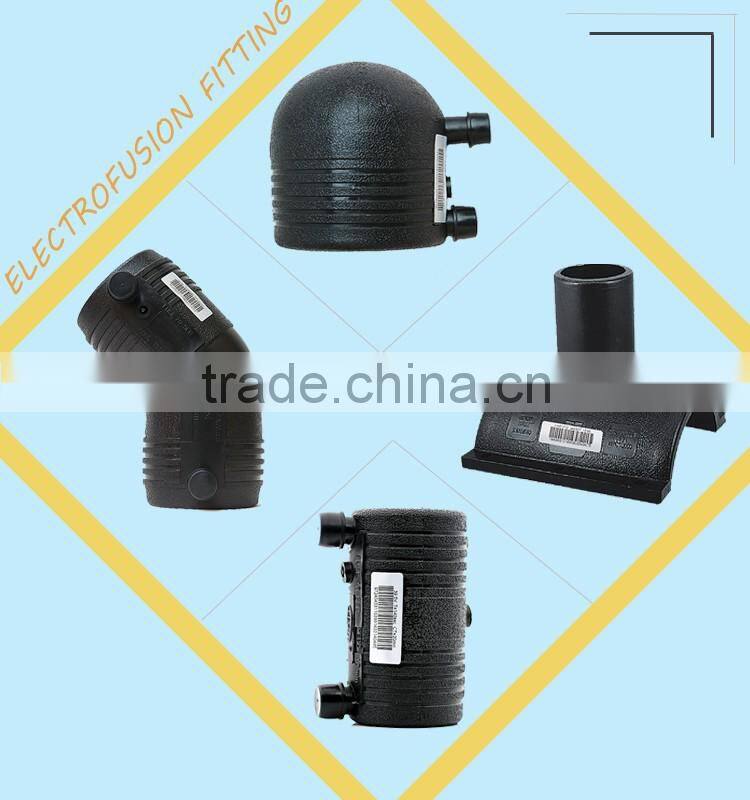

TYPE | SIZE(MM) |
EF COUPLER | 20~630 |
EF ELBOW 90° | 20~560 |
EF ELBOW 45° | 40~560 |
EF REDUCER | 25*20~500*450 |
EF REDUCING TEE | 25*20*25~400*315*400 |
EF EQUAL TEE | 20~560 |
EF END CAP | 32~500 |
EF BRANCH SADDLE | 90*63~315*160 |
EF REPAIR SADDLE | 90~315 |
EF TAPPING SADDLE | 90*63~315*110 |
EF STUB END | 50-500 |
Applications:
1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks
Inspection&Certification:
We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure tight blastingtest,
longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test,
so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
CHUANGRONG DN20-DN1200 PE Pipe Fittngs Properties:
1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
2.Longitudinal Reversion, % (110(C)): <=3
3.Oxidation Induciton Time, min (200(C)): >=20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.
Packing: 1.Wooden case 2.Carton 3.Plastic bag
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.We have exported our products more than 50 countries and area.
Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp. Our aim is to provide customer with the best solutions of plastic pipe connection.
Thank you for your looking through.
