Product Details
| Place of Origin: | Shanghai, China | Brand Name: | B&A | Model Number: | M3121 |
Product Description

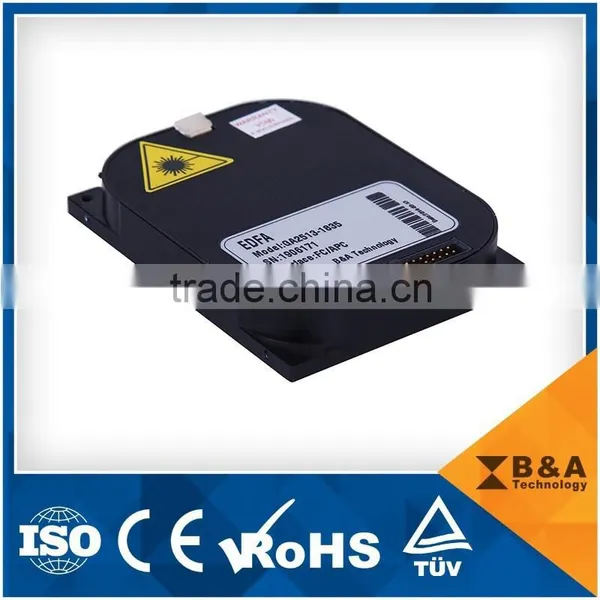

EDFA module compatible with MSA protocol
Optical Characteristics
Parameter | Symbol | Min | Typ | Max | Unit |
wavelength | λc | 1530 | 1550 | 1562 | nm |
Output power(1) | Po | 13 | ------ | 22 | dBm |
Input power | Pi | -3 | ------ | +10 | dBm |
Gain | G | ------ | 20 | ------ | dB |
Noise Figure(2) | NF | ------ | 4.5 | ----- | dB |
Output power stability | ΔPo | ----- | ±0.05 | ±0.1 | dB |
Return loss | RL | ------- | ------- | -45 | dB |
Polarization dependent gain | PDG | ------ | ------- | 0.3 | dB |
Polarization mode dispersion | PMD | ------ | ------- | 0.5 | ps |
(1): 2 output ports is available
(2): Test at 0dBm input
Electric Characteristics
Parameter | Symbol | Min | Typ | Max | Unit |
voltage | Vps | 3.0/4.5 | 3.2/5.0 | 3.5/5.5 | VAC |
consumption | P | ----- | ---- | 10 | W |
consumption is up to the output power and environment temperature
Environmental Characteristics
Parameter | Symbol | Min | Typ | Max | Unit |
Operating temperature | Tw | -5 | ----- | 60 | ℃ |
Storage temperature | Ts | -40 | ----- | 80 | ℃ |
Humidity | ------ | 10 | ------ | 85 | % |
(3):Non-condensing
Order information
Product | Mechanical | Application | Input power | Output power1 | Output Ports | Voltage | Interface |
M:module | 31:dimension 90×70×15mm | 2:fiber amplify | 1: -3~+10 dBm
9:other | 13:13dBm … 22:22dBm | 1.:1 port 2: 2 ports | 7:5VDC 8:3.3VDC | 1: SC/UPC 2: SC/APC 3: FC/UPC 4: FC/APC 5: LC/UPC 6: LC/APC |
M3121:90×70×15mm
