Specifications
Excellent experienced stamping mould and punching die1. Various forms
2. Quick Delivery Time
3. OEM,ODM Provided
Excellent stamping mould and punching die China mold manufacturer
Item |
Description |
Description |

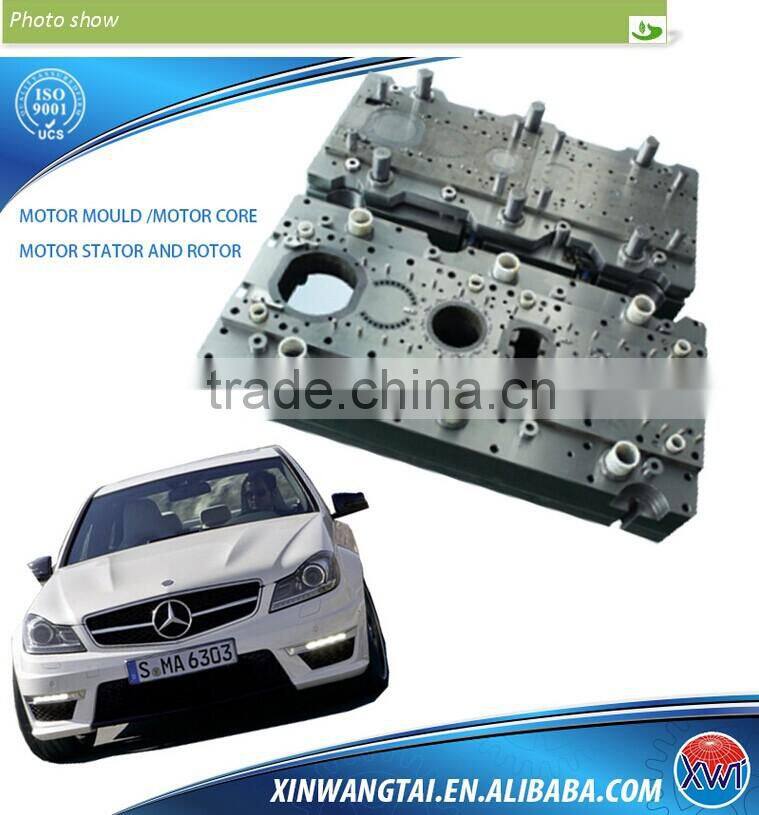

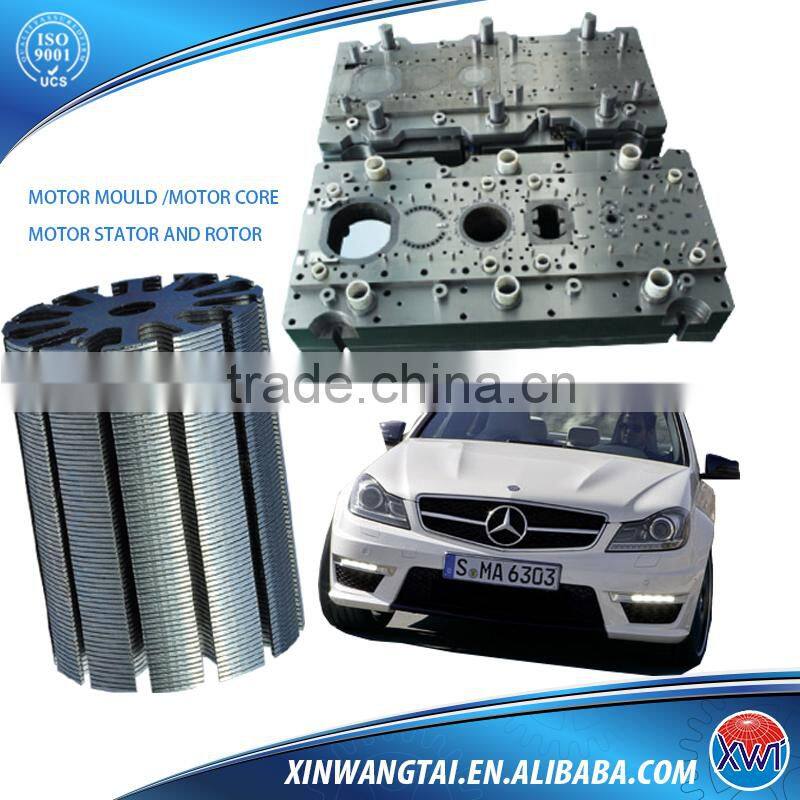

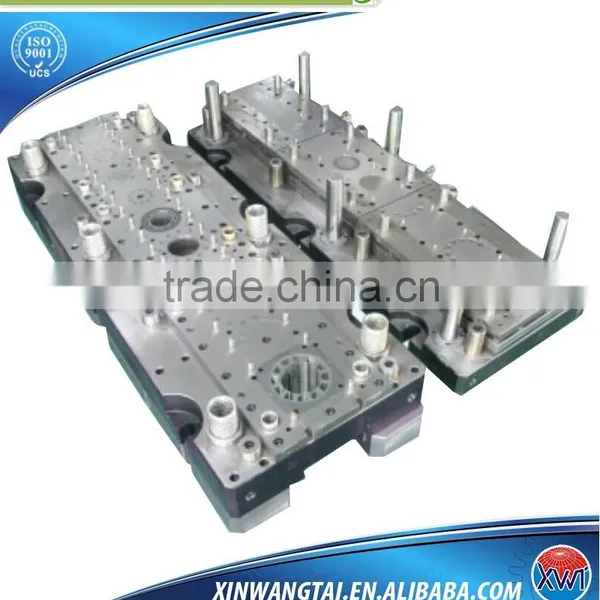

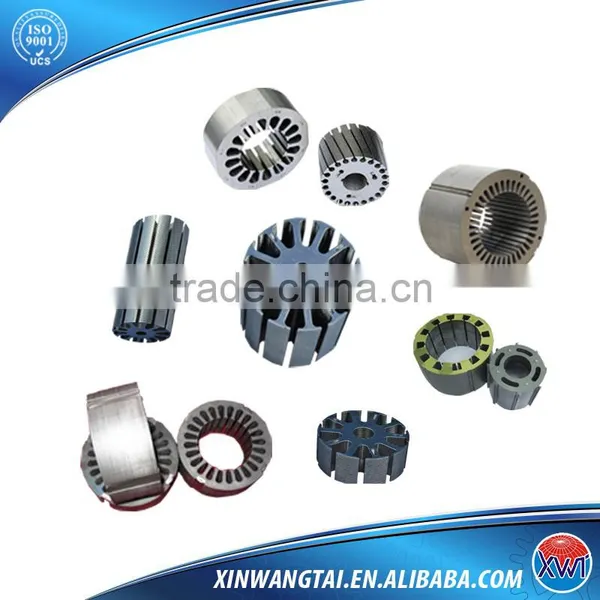

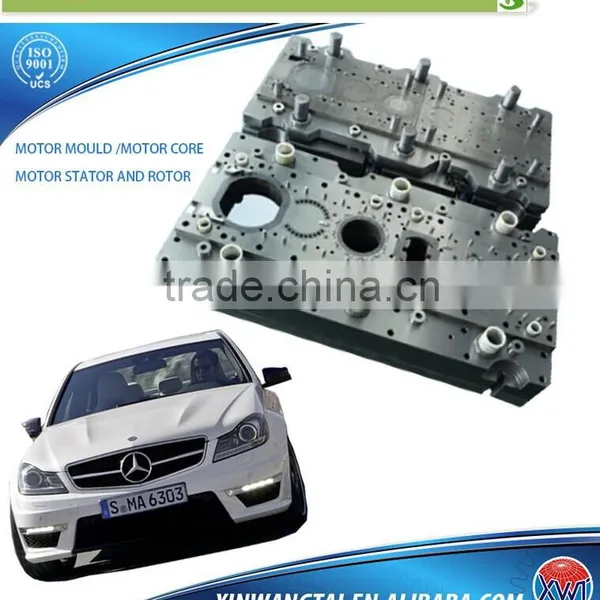

High speed stamping tool for motor core lamination |
Type |

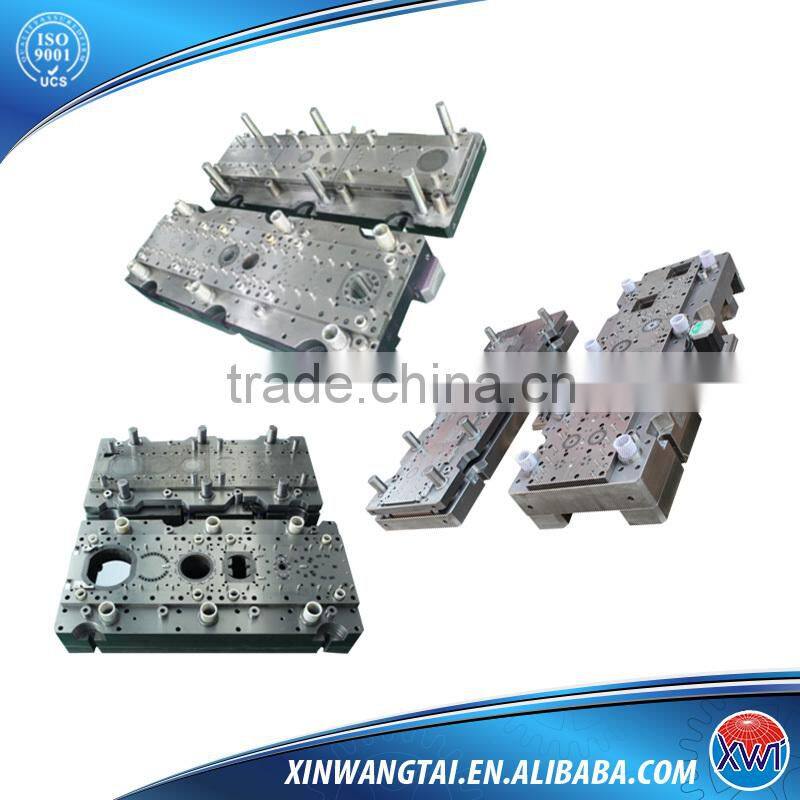

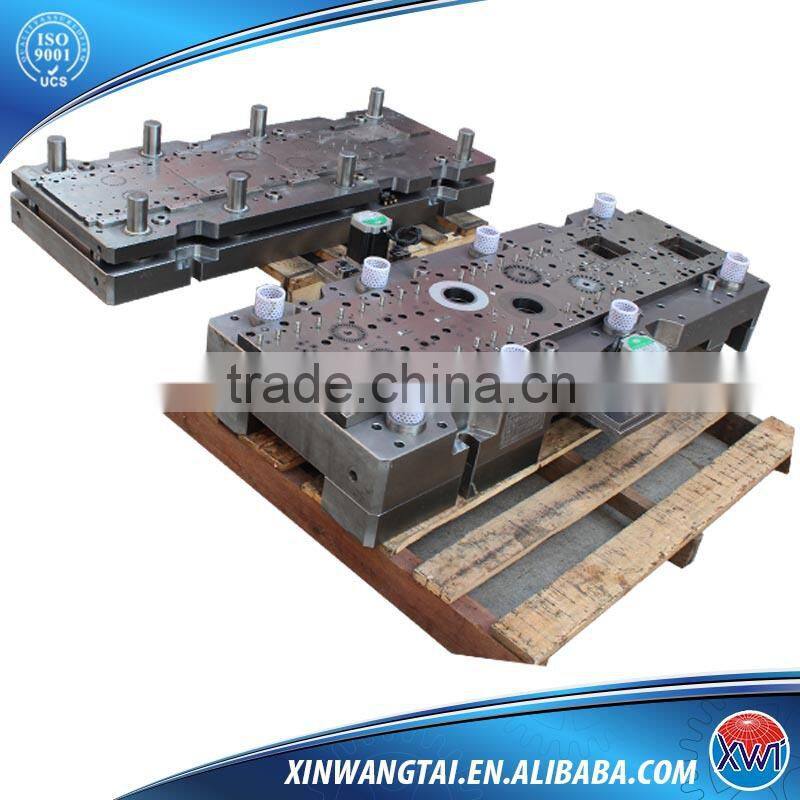

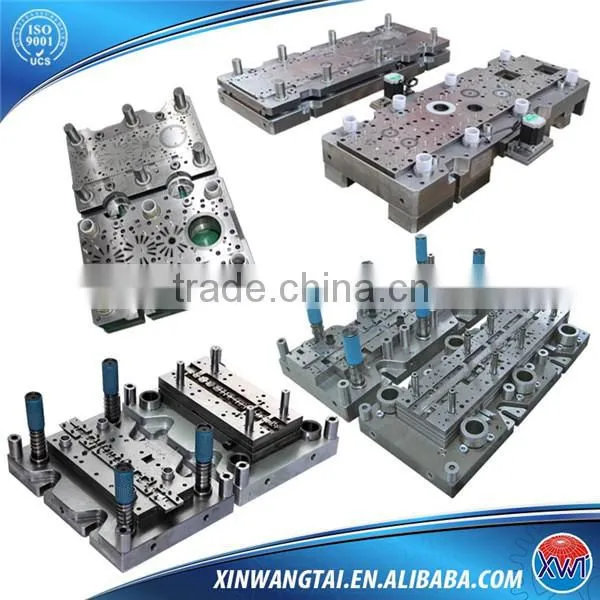

Progressive stamping die , compound die, single die,progressive die |
Material |
SKD11, D2, SKH51, SKD61, Cr12MoV ,etc |
Work piece Material |
Alloy steel: SKD11, SKD61, Cr12MOV, SLD, DC53 High speed steel:SKH51, SKH9, YXM1 |
Stations / Steps |
According to the auto parts designing |
Productions Cover |
Sheet metal auto parts, Auto stamping parts, Home Electrics stampingparts, Device stamping parts, etc |
Productivity |
Max 400 pcs/min, normally 40-60pcs/min |
Work piece Precision: |
0.005mm |
Mould Tolerance |
0.001-0.003 mm |
Life Time |
Max 1 million times, normally 0.3-0.5million times |
Design Software |
AutoCAD, PRO/E, Solid works, UG(NX), Cimatron, MasterCAM |
Drawing Format |
STP, PRT, ASM, PDF, DWG, DXF,JPG,TIFF,PNG |
Surface Treatment |
Powder coating, Hot galvanized, Painting, Polishing, Brushing ,Chrome/Zinc/Nickel plating |
Certification |
ISO9001:2008 |
Service |
OEM / ODM service |
|
Machinery Equipments |
Milling, Grinding, Boring, CNC, EDM, WEDM, Forming Machine,Precision flat milling, Saw machine, Punching machine |
Testing Machine |
100% Inspection, CMM, Projector, Microscope |
Supplying Report |
Material reports and Dimension test reports made from the originof the place |
Payment Terms |
T/T, L/C , West Union ,etc |
Advantage |
We are experienced in the mould design and process through ourcooperation with Japanese and USA companies in the past years.We had built our own factory in Shenzhen and established long-term,and stable business relationships with other factories. |
|
Business Scope & Service Details |
All products can be customized according to different Nationalstandards and customer needs. As a trading & manufacturingcompany, JR is also involving in OEM & ODM outsourcingand collaboration, bespoke manufacturing of blue drawing,sample, raw material and originality products. We can provide clients with product design, competitive pricing, qualityassurance that fulfill their needs and logistics services. |
Standard |
JIS AISI DIN etc. |
*Over 20 years working in this field with strict quality controlling system
*Sample testing report, CMM report, Raw material report can be provided
*Free for designing mould from professional engineer designer
*Slow-feeding machine, six sets punching machines
*Punctual delivery date, 400 hits per minute
*Direct manufacturer, cost and timing saving
*Salt spray testing
1.Q:Are you a factory or trading company?
A:We are a factory,There are 15,000 square meters of manufacturing plants and RD bases in our factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Baoan Shajing Shenzhen City, Guangdong Province, China,We warmly welcome all our clients, from home or abroad, to visit us!
3.Q:What is the material of your products?
A:The material are DC53,SKD11,D2,SKH-9,SKH-51
4.Q: The maximum press your fatory have available ?
A: There are 30T,60T,110T,160T, 200T, 800T punching machines in our factory.
5.Q:What about the hardware of your factory?

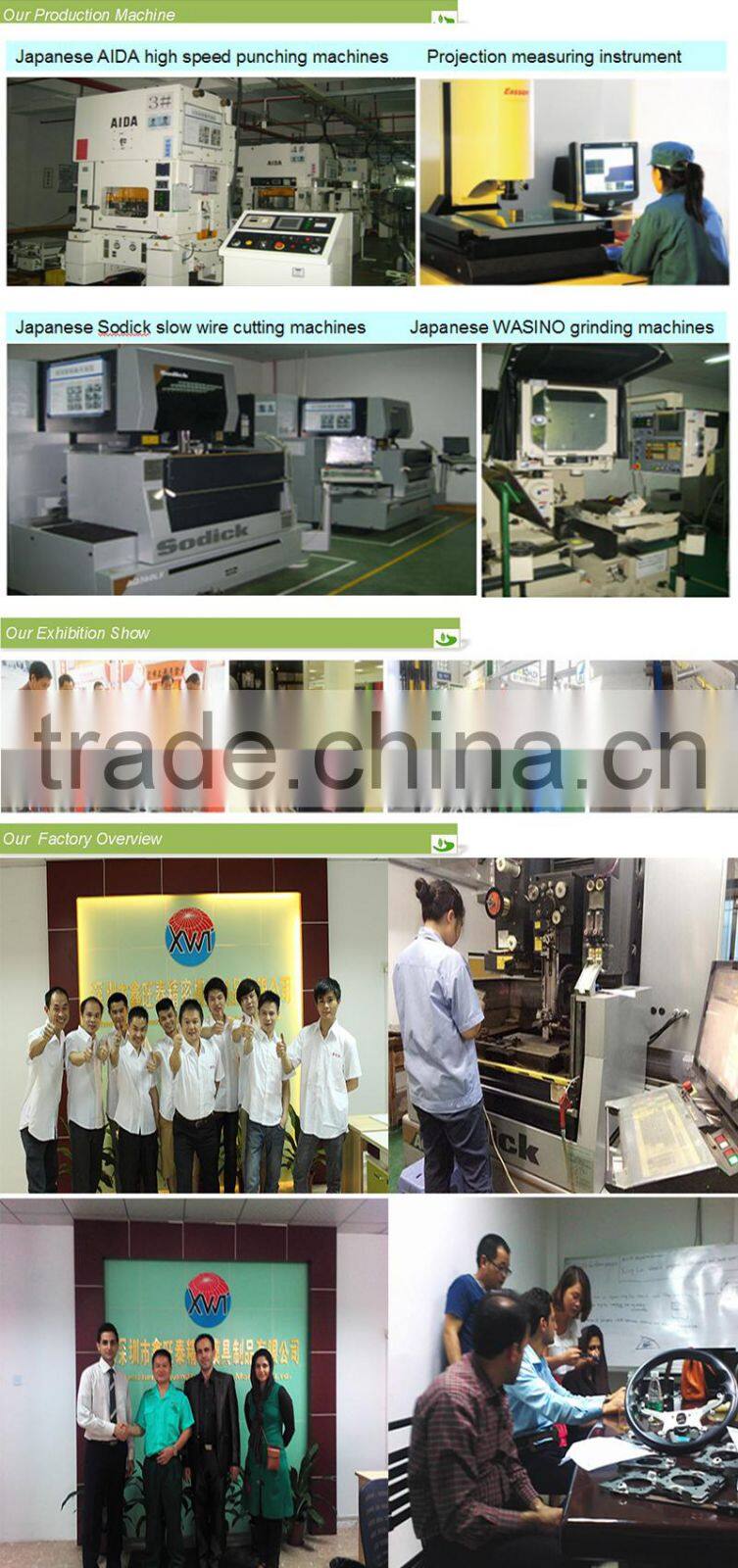

A: Our factory owns a full set of Machining equipment, include large CNC machning center,Sodic EDM machning,import EDM-HS,Radial drilling machines,Milling machines,Grinders,three-D inspection etc.
6.Q:How does your factory do regarding quality control?
A:Quality is priority. Guangtuo people always attach great importance to quality controlling from the very beginning to the very end. All the moulds,the QC measure with three-D measuring equipments regularly.
