DVB-T2 With H.264 MPEG4 7day EPG USB for PVR TIMESHIFT SOFTWARE UPDATE MEDIA PLAYBACK FREE TO SET TOP BOX
US$ 1 - 9.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ETISTAR
Model Number:
DVD-168A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Size Full Plastic Fully Comply With DVB T and H.264 MPEG4 MPEG2 DVB T2 Set Top BoxUS$ 1 - 8.7MOQ: 1000 Pieces -
High Definition Metal Cabinet Black DVB-T2 Tuner Receiver MPEG-4 Digital Saltellite Set Top BoxUS$ 8.8 - 9.3MOQ: 500 Pieces
-
New Hot Sale Dvb t2 HD Digital Video Broadcasting Terrestrial Digital tv Set Top Box Supplier's ChoiceUS$ 1 - 10MOQ: 1000 Pieces
-
Terrestrial Receiver Dvb t2 With hd Free to Air Cable the Set - Top BoxUS$ 1 - 10MOQ: 1000 Pieces
-
HD 1080P Terrestrial Receiver Full Plastic Dvb t2 Software Download Set Top Box Quality ChoiceUS$ 1 - 10MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
ETISTAR
Model Number
DVD-168A
| Hardware | ||||
| CPU | MSTAR-MSD7T01 or ALI (128 pin) MIPS 34Kf@600MHz | |||
| Memory | 32X16Mbit DDR2 Frequency1066 | |||
| Flash | 32M bytes | |||
| Demodulator Type | MSB1236C Chip Set | |||
| TUNER | Rafael R836 | |||
| Front Panel | USB 2.0 Embedded One Host, | |||
| 4-digit LED display on front panel | ||||
| red LED Standby,green LED Lock | ||||
| Panel KEY, POWER, CH+ ,CH- | ||||

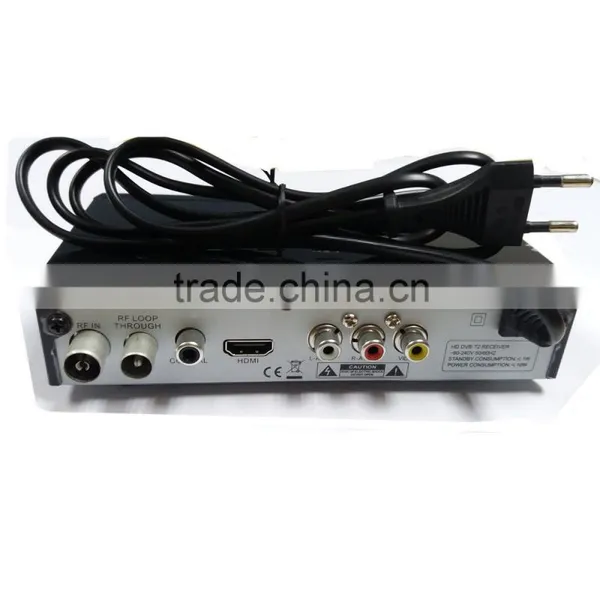

| Rear Panel | Tuner RF input connector | IEC-162-2( Female) | ||
| Tuner RF Loop through connector | IEC-162-2( Male) | |||
| HDMI V1.3/V1.4 | ||||
| SCARTx1 or audio output | ||||
| Coaxial x1 | ||||
| Power AC100~240V 50Hz/60Hz | ||||
| Demodulation | ||||
| Terrisal Receiver Standard | DVB-T2(EN_302755 V1.3.1/EN 300744) | |||
| Input RF Frequency | 48~866MHZ | |||
| Bandwidth | 6MHz,7MHz,8MHz | |||
| Constellation | QPSK 16-QAM 64-QAM and 256-QAM | |||
| FEC | 1/2, 3/5,2/3, 3/4,4/5,5/6 | |||
| Guard Interval | 1/128 1/32 1/16 19/256 1/8 19/128 1/4 | |||
| FFT Mode | 2K/ 8K/32K | |||
| Support | Support Single and multiple PLPS | |||
| Input level | -83 - -5dBm | |||
| Sortware Features | ||||
| •Fully comply with DVB-T and H.264, MPEG-4, MPEG-2 Standard | ||||
| •The maximum speed of the traffic flow of at least 50 Mbit / sec | ||||
| •Support 3D interface | ||||
| •Sleep Timer | ||||
| •Support teletext/subtitle/muti-language | ||||
| •Powerful and highly effective 7-day EPG function | ||||
| •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
| •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||
| •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
| Decoder | ||||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) |
|||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding |
|||
| Powerful Multimedia Features | ||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) |
|||
| Photo Codec | JPEG, BMP, PNG |
|||
| License | ||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | ||||

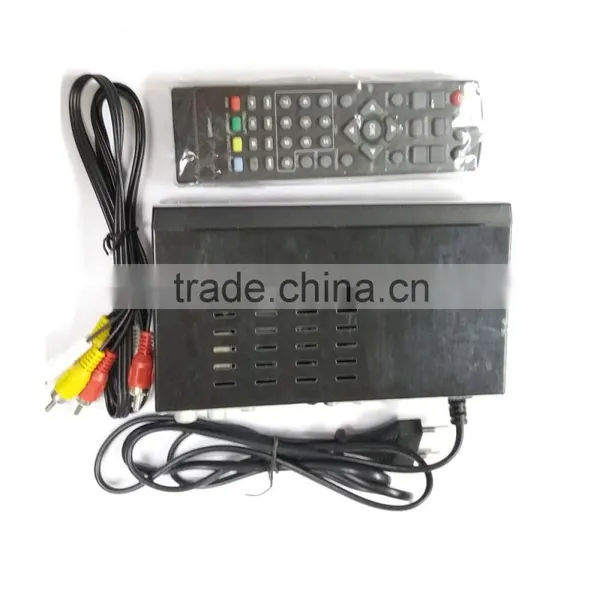

| Accessories | ||||
| Accessories | gift box | |||
| AV cable optional | ||||
| HDMI cable optional | ||||
| IR remote control | ||||
| User Manual | ||||
