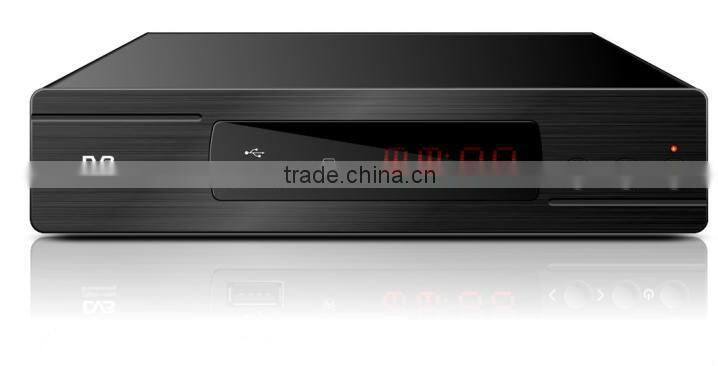

2016 High Definition Digital Plastic Front Panel Matal Cabinet 168mm Black DVB-T2 Receiver Set Top tv Box

2016 High Definition Digital Plastic Front Panel Matal Cabinet 168mm Black DVB-T2 Receiver Set Top tv Box thumbnail-1
2016 High Definition Digital Plastic Front Panel Matal Cabinet 168mm Black DVB-T2 Receiver Set Top tv Box photo-1
US$ 8.8 - 8.9 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ETISTAR
Model Number:
DVB-168W
Contact Supplier Request Quote Chat Now
Shenzhen Etistar Control System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ETISTAR
Model Number DVB-168W
Hardware
CPU MSTAR-MSD7T01 or ALI (128 pin) MIPS 34Kf@600MHz
Memory 32X16Mbit  DDR2 Frequency1066
Flash 32M bytes
Demodulator Type MSB1236C Chip Set
TUNER Rafael R836
Front Panel USB 2.0 Embedded One Host,
4-digit LED display on front panel
red LED Standby,green  LED Lock
 Panel KEY, POWER, CH+ ,CH-
Rear Panel Tuner RF input connector   IEC-162-2( Female)
Tuner RF Loop through connector   IEC-162-2( Male)
HDMI V1.3/V1.4
SCARTx1 or audio output
Coaxial x1
Power  AC100~240V  50Hz/60Hz
Demodulation
Terrisal Receiver Standard DVB-T2(EN_302755 V1.3.1/EN 300744)
Input RF Frequency 48~866MHZ
Bandwidth 6MHz,7MHz,8MHz
Constellation QPSK 16-QAM 64-QAM and 256-QAM
FEC 1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Interval  1/128  1/32  1/16  19/256  1/8  19/128  1/4
FFT Mode 2K/ 8K/32K
Support Support  Single and multiple PLPS
Input level  -83 - -5dBm
Sortware Features
•Fully comply with DVB-T and H.264, MPEG-4, MPEG-2 Standard
•The maximum speed of the traffic flow of at least 50 Mbit / sec
•Support 3D interface
•Sleep Timer
•Support teletext/subtitle/muti-language

•Powerful and highly effective 7-day EPG function
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
 Decoder
Video Decoder Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding  HE-AAC 5.1 multi-chhannel decoding
Powerful Multimedia Features
MediaCodec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec  WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec JPEG, BMP, PNG
  License
Optional  DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx  License.
Accessories
Accessories gift box
AV cable optional
HDMI cable optional
IR remote control
User Manual.







2016 High definition Digital plastic front panel matal cabinet 168mm Black DVB-T2 receiver set top tv box
