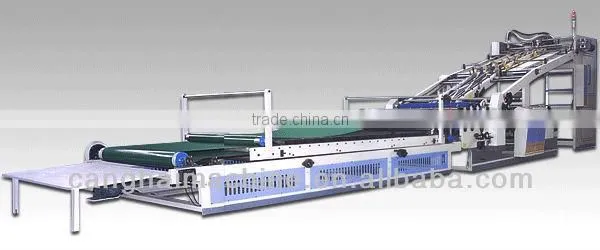

High Speed Automatic 1300 Laminating Machine & automatic laminator/paper Board laminated Machine

Specifications

Laminating Machine
>Cardboard width adjustment equipment
>Easy to adjust
>Imported pressure and transport strap
>High speed



Laminating machine:



Major feature:



1.The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.



2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.



3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead.



4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.



5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.



6. Roller design scientifically, avoid glue fly out when the speed is high.



7. Pressure rollers adopt one side adjustment, convenient and fast.



8. Rocker controls wash roller's fluctuation, easy cleaning.



9. Counter designs scientifically, easy recording the amount you have been worked.







Technological parameter:







Model	TMJ-1300A	TMJ-1500A	TMJ-1600A
Max size of cover face	1300mmX1100mm	1500mmX1100mm	1600mmX1100mm
Mix size of cover face	400mmX400mm	400mmX400mm	400mmX400mm
Economic speed	0-100 piece/min	0-100 piece/min	0-100 piece/min
Precision	±1.5	±1.5	±1.5
Power	10kw	12kw	12kw
Size	10m x 2m x 2.4m	10m x 2.15m x 2.4m	10m x 2.15m x 2.4m
Weight	About 6T	About 6T	About 6T







 1.The whole machine:





2. vacuum suctoon-type feeding system, feeding paper accurately,cycle stackingplanes

,so more efficient



4. Semi-auto bottom feeding unit:

feeding corrugated paper adopt suction automatic feed,feeding speed is automatic synchronous with surface paper



5. front guide position:

adopt elastic face set position,positioning precision. the corrugated paper never pull head.



5. Automatic corrugated board feeding unit



6.Surface board feeding unit.

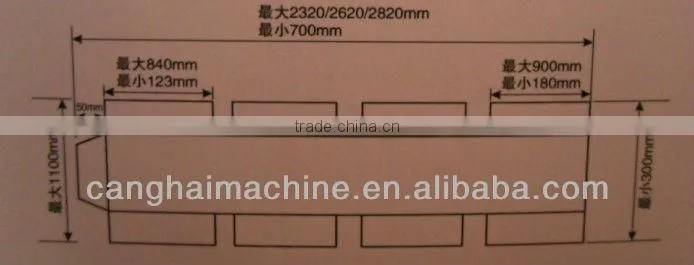

7.board size:
