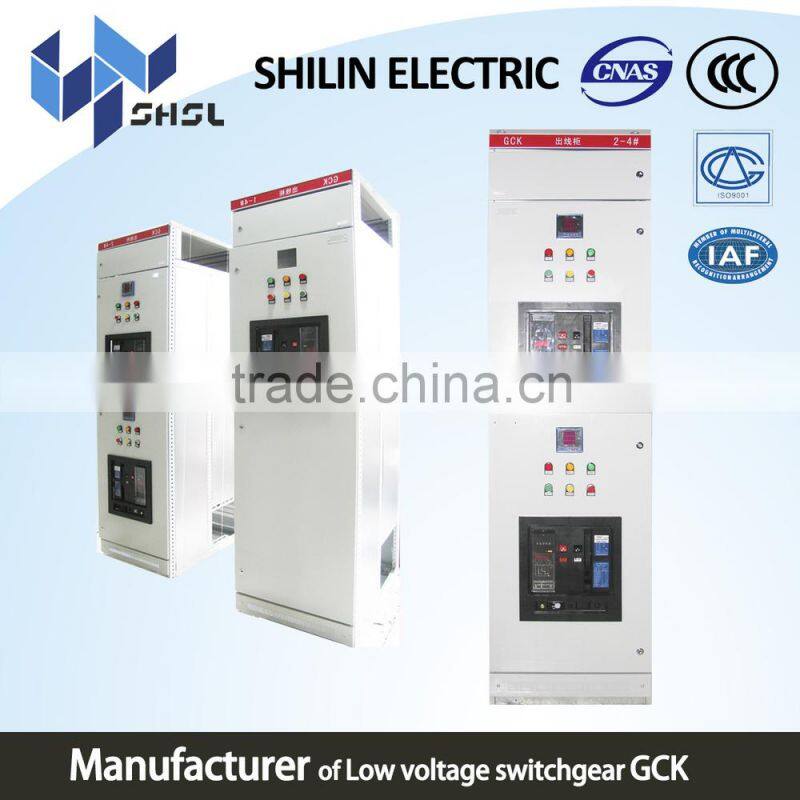

Help CenterGCK Indoor Low Voltage Electrical Switch Cabinet Manufacturer
Related Products
-
GCK Low Voltage Drawout Switchgear With Custom Mccb & RccbUS$ 800 - 2,000MOQ: 1 Piece -
HXGN-12ZFQ(R) High Medium Voltage Electrical Switch Cabinet ManufacturerUS$ 800 - 2,000MOQ: 1 Piece
-
Low Voltage Switchgear GGD With Custom Mccb & RccbUS$ 800 - 2,000MOQ: 1 Piece
-
Low Voltage Switchgear MNS With Custom Mccb & RccbUS$ 800 - 2,000MOQ: 1 Piece
-
Telephone Distribution Box of China SupplierUS$ 12 - 30MOQ: 1 Piece
Specification:
1,ISO9001 certificated
2, Full type tested
3, 1 years quality guaranty
General:
GCK series Low voltage switchgear(hereinafter short as switchgear)is a complete power distribution device for 3.6~24kV,3-phase AC 50Hz,single-bus and single-bus sectionalized system. It is mainly used for power transmission of middle/small generators in power plants; power receiving, transmission for substations in power distribution and power system of factories, mines and enterprises, and starting of large high-voltage motor, etc.,so as to control, protect and monitor the system. The switchgear meets IEC298,GB3906-91.In addition to be used with domestic VS1 vacuum circuit breaker, it can also be used with3AH5 from Siemens domestic ZN65A,and VB2 from GE, etc.,it is truly a power distribution device with good performance. In order to meet the requirement for wall mounting and front-end maintenance, the switchgear is equipped with a special current transformer, so that the operator can maintain and inspect it in front of the cubicle.
Service environment:
a) Air temperature: Maximum temperature: +40°C; Minimum temperature:-15°C
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 1000M.
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
Main technical parameters:
| Protection grade | 1P40 |
| Rated working voltage | AC, 380(V) |
| Frequency | 50Hz |
| Rated insulation voltage | 660V |
| Working conditions | |
| Environment | Indoors |
| Altitude | ≤2000m |
| Ambient temperature | -5℃~+ 40℃ |
| The min temperature under store and transportation | -30℃ |
| Relative hunidity | ≤90% |
| Capacity of control motor(kW) | 0.4~155 |
SHILIN advantages:
1.20 years manufacturing experience of all kinds of low voltage switchgear such as GGD MNS KYN28A.
More than 800pcs switchgear has run well for one year.
2.Our products manufacturing process are in accordance with GB/T19001-2008 quality management system requirements and technical standards are in accordance with GB11022 / DL404 IEC60694 which could guarantee delivering time & excellent quality for the clients.
3.The price advantage: our company has established complete supplier evaluation & supervision system, strict control of production cost and strive to provide the optimized cost-effective products for clients
4.Professional and timely after-sales service: Based on all products standardized design, we can provide users with the most convenient and fast service, our 24 hours service telephone: 4008017969.
5.Team trust, cooperation, commitment, loyal customers, strict compliance and deliver on time.
