Full Power Output Self-Test Inspection 3 Hours Emergency Led Emergency Kit
Product Description

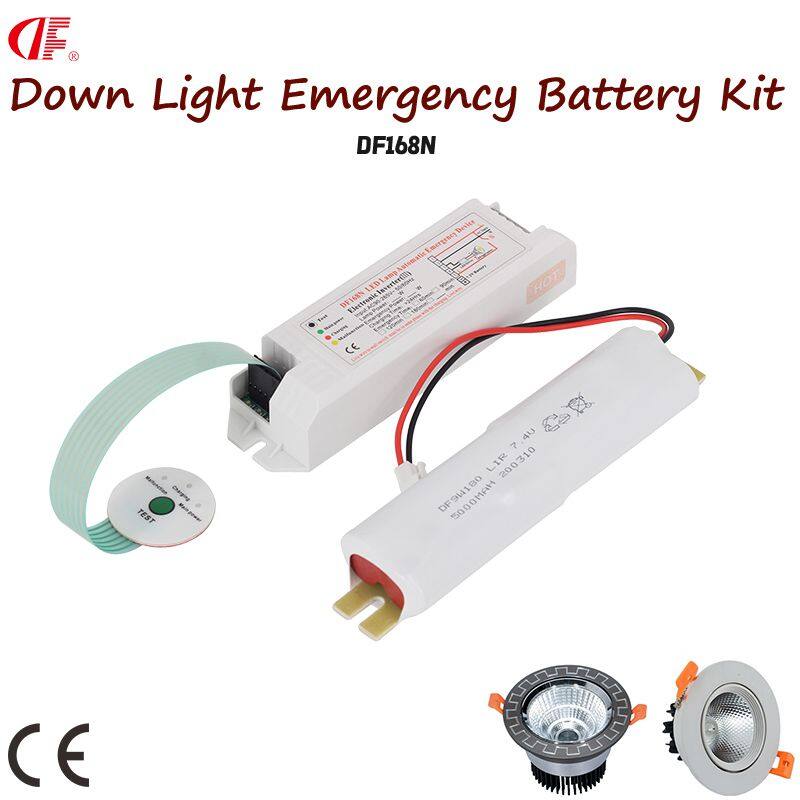

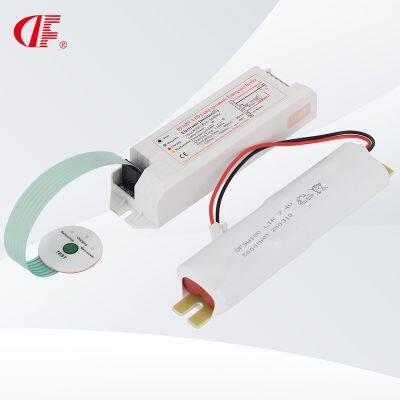

-This DF168N kit is compatible with all LED modules with maximum 9w and has ideally stable performance.
-This kit uses highly grade smart IC to control circuit, and offer self test.
-Monthly test and annual test function.

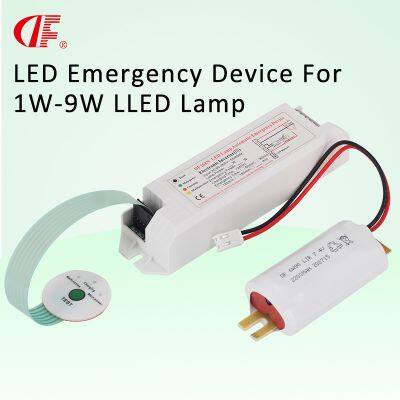

- DF168N emergency lighting module is designed to convert a wide range of LED types(1w~9w) which offers a 100% emergency power output sulotion.
- This model can match the input voltage from 90V to 280V, and the output current go through Led driver, making your LED light full power emergency lighting when power is failure.
- DF168N uses IC control circuit, has stable operation, isolation circuit, no-load protection features.
- The DF168N module is fitting with a microprocessor Self-Test circuit which performs an installation commissioning test, a monthly functional test and an annual full three hour duration test in accordance with BS 5266.
| Model | DF168N |
| Support LED power rangement | 1-9W |
| Emergency Output Power | 9W |
| Input Voltage | AC90-280V |
| Battery | Li-ion Battery 7.4V 5000mAh 37wh |
| Emergency Time | 180min |
| Charge Time | ≥24 Hours |
| Inverter Size | 150*40*30MM |

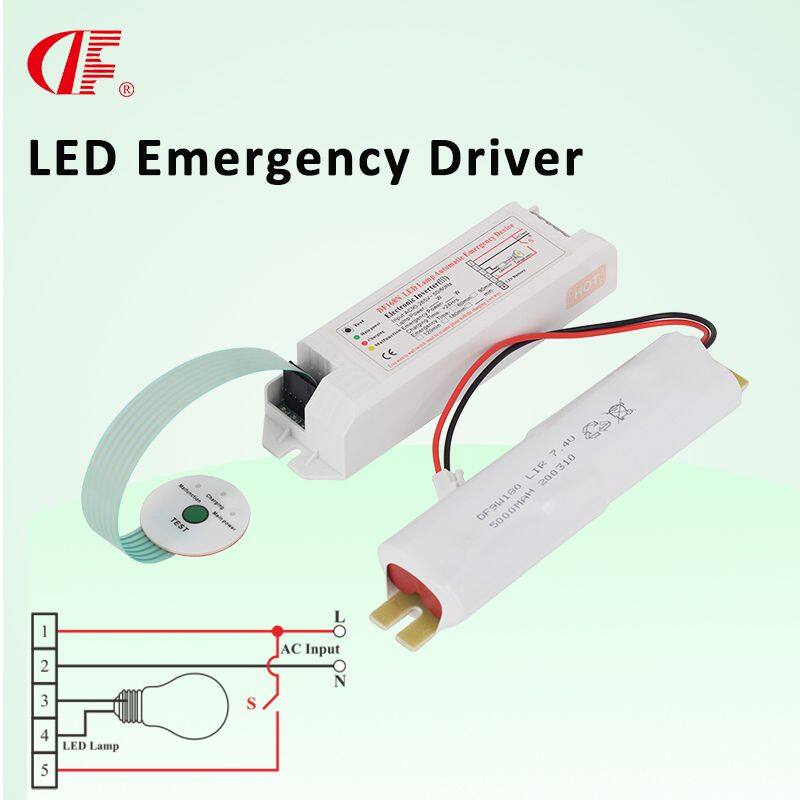

Installation Instructions
1--connect Fire Wire L+ Connect switch line S
2-- Connect the null line N
3&4--Connect LED driver, and connect light source (suit for LED light source with outside drive)
5--Connect switch line. The other side of switch line, Enter the Live Line port 1.
