corrugated board thin blade machine

Specifications

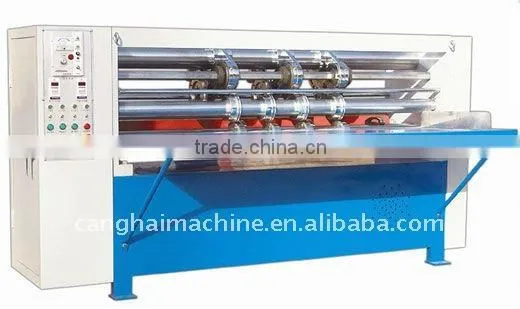

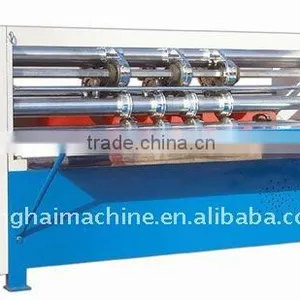

Corrugated slitter scorer machine ,which is used in cutting and rolling corrugated board,ISO9001:2000 certificated.

1. Thin knife, thickness less than 1mm, the edge of the corrugated paper after cutting is smooth, with high quality of the cardboard and little Crushed phenomenon.
2. A fair of knife grinder for each thin knife.
3. 2 kinds of sharpening device---manual and pneumatic, sharpening times and intervals are decided by customers. By manual operation, sharpness and longer life of the knife and the wheel is available.
4. Chain wheel drives steady, long service life.

5. Wyaze name	unit	model
   Width of passing paper board	mm	1900
   Speed of passing paper board	piece/min	80~180
   Number of knives	piece	4(increase or decrease is available )
   Number of track-pressing wheel	pair	6(increase or decrease is available )
   Min dividing width	mm	130
   Min track-pressing width	mm	60
   Diameter of thin knife	mm	d=260
   Thickness of knife	mm	≤ 4
   Motor power	kw	4
   Size	mm	2600*1120*1400
   Weight	kg	1550
