Help CenterSingle Facer Corrugation Machine (Steam Heating System)
Related Products
-
Packaging Machinery-2500 Corrugated Cardboard Production LineUS$ 159,600 - 558,600MOQ: 1 Set -
Full Production Line for Corrugated Paper Board 5 LayersUS$ 300,000 - 500,000MOQ: 1 Set
-
[RD-3-180-2000]Automatic High Speed 3 Ply Corrugated Cardboard Production LineUS$ 159,600 - 558,600MOQ: 1 Set
-
Single Facer Corrugated Cardboard Making MachineUS$ 8,000 - 30,000MOQ: 1 Set
-
Single Facer 2 Layer Corrugated Paperboard Production Line,single Facer Carton Box Packaging MachineUS$ 300,000 - 500,000MOQ: 1 Set
Specifications
1 Single Facer Corrugation Machine2. width: 1600mm,1800mm,2000mm,2200mm
3.low, medium,high options
4.ISO 9001

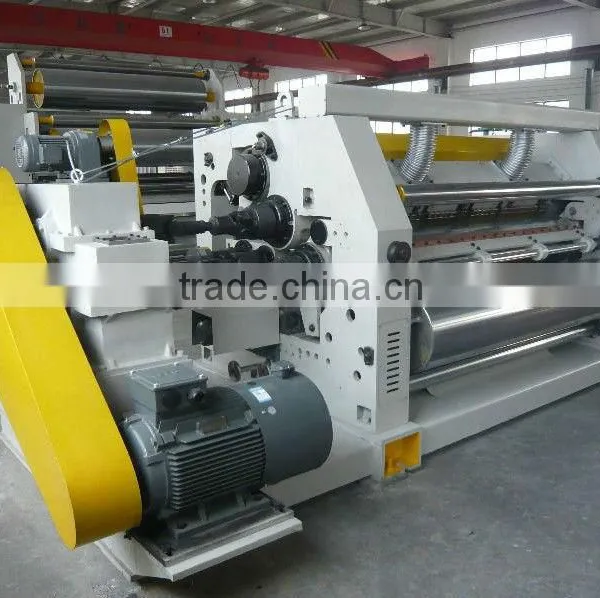

single facer corrugator machine
Use and Characteristics
1,320S Design Speed: 150m/min
2,Effective width: 1400mm-2500mm
3,Corrugated roller:φ320mm
4,Drive reducer box with oil immersed type lubricating to reduce noise keep running stable. adopt gimbal transmission. separate power.(optional)
5,Corrugating roller, pressure roller and glue roller by pneumatic adjustment.
6,Cardboard transmit adopt vacuum suction method, with wind control system. keep flute profiles stable of the lower-roller in the condition of running up.
7,Bearing of corrugated and pressure roller adopt high temperature lubricate grease.
8,Glue parts auto supply glue circularly.
9,,The upperlower corrugating roller are made of 48CrMo high quality alloy steel, after heat-treatment.
10,The hardness HRC58°-60°,the surface be grinded.
11,The glue part surface are treated by special mesh snicked and chromeplated.
12,Motorized or manual glue width dividing to match the paper width.
13,Glue part can be running independently or non-independently while stopped.
Technological Parameters |
MJF-80-1800 Standard |
MJF-120-1800 Middle-speed |
MJF-180-1800 High-speed |
|
Line size L*W*H(m) |
56×4.5×4.2 |
67×4.5×4.2 |
82×4.5×4.5 |
|
Factory size L*W*H(m) |
60×11×5 |
72×11×5 |
88×11×6 |
Total Power (about) |
100kw |
180kw |
250 kw |
Steam Cost |
0.8~1.2Mpa (Advise 2t/h boiler) |
0.8~1.2Mpa (Advise 4t/h boiler) |
0.8~1.2Mpa (Advise 4t/h boiler) |
Starch Cost (g/m2) |
20-26 |
20-26 |
20-26 |
Raw paper width (mm) |
1800 |
1800 |
1800 |
Mechanical Speed |
80m/min |
120 m/min |
180m/min |
Economical speed |
60m/min |
90m/min |
150 m/min |
Shift capacity (*104m/8h) |
3 |
4.5 |
9 |
Transversely cutting precision |
±1 |
±1 |
±1 |
Transversely cutting scope (mm) |
500-9999 |
500-9999 |
500-9999 |
Slitting scope (mm) |
145-1800 |
160-1800 |
160-1800 |
Slitting precision (mm) |
±1 |
±1 |
±1 |
Workers |
8-11 |
8-11 |
8-11 |
