Specifications
1.3/5/7 ply corrugated board production line2. width: 1600mm,1800mm,2000mm,2200mm
3.low, medium,high options
4.ISO 9001
We can produce the 3 layer, 5 layer and 7 layer corrugated paperboard production line

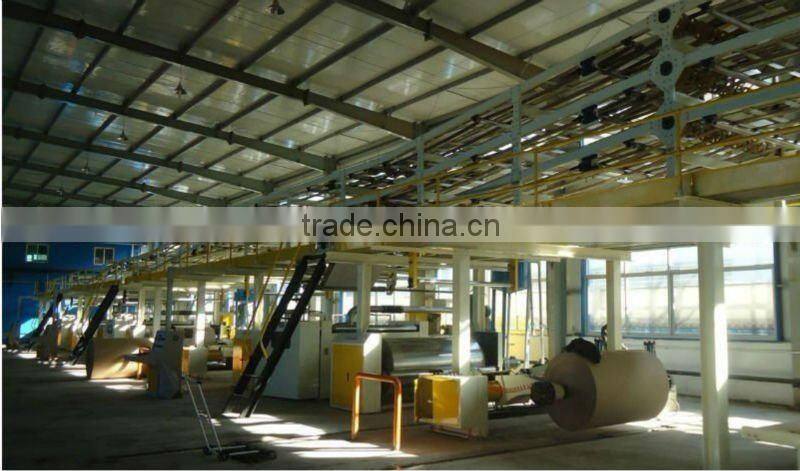

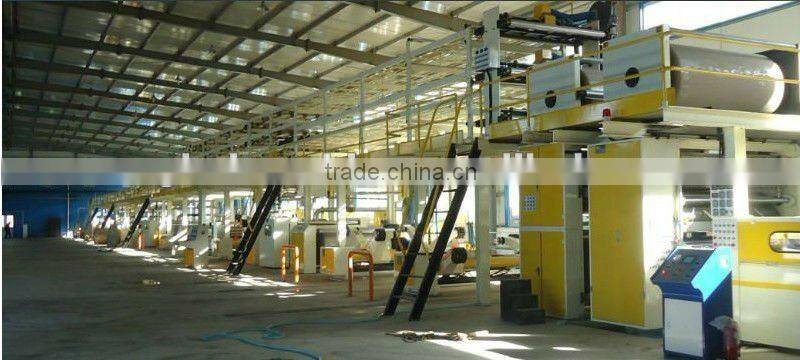

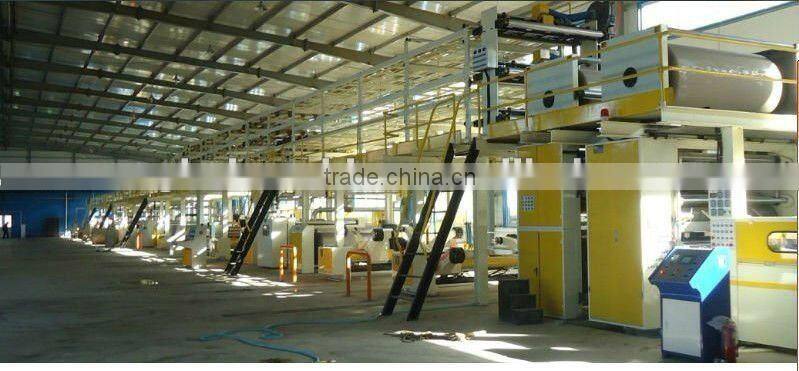

corrugated paperboard production line
Introduction
Corrugated cardboard production line is the professional equipment for producing corrugated cardboard . The 3ply,5ply,7ply and multifunction corrugated cardboard production line mainly consists of the following equipment:mill roll stand , surface papercorepaperpreheater . single facer, the overhead convey bridge . glue pasting machine , double facers . slitter scorer , cutoff , stacker . Heating system , air compression system and glue making system , etc . The 3ply,5ply,7ply and multifunction corrugated cardboard productiong line has high middle and low grade with different specification and different quality equipment . On the base of understanding the requirements of the customers and the advanced skills at home and abroad , our company has developed and designed these corrugated paperboard production lines with the speed 150/220m/min , the paper width 1400/2200mm and four fluting UV type A , C , B , E for all the customers to choose from.
Technological Parameters
1.Working speed:60~200m/min
2.Heating methord:steam heating, electric heating, oil heating
3.Width:1400mm~2500mm
Technological Parameters
Technological Parameters |
MJF-80-1800 Standard |
MJF-120-1800 Middle-speed |
MJF-180-1800 High-speed |
|
Line size L*W*H(m) |
56×4.5×4.2 |
67×4.5×4.2 |
82×4.5×4.5 |
|
Factory size L*W*H(m) |
60×11×5 |
72×11×5 |
88×11×6 |
Total Power (about) |
100kw |
180kw |
250 kw |
Steam Cost |
0.8~1.2Mpa (Advise 2t/h boiler) |
0.8~1.2Mpa (Advise 4t/h boiler) |
0.8~1.2Mpa (Advise 4t/h boiler) |
Starch Cost (g/m2) |
20-26 |
20-26 |
20-26 |
Raw paper width (mm) |
1800 |
1800 |
1800 |
Mechanical Speed |
80m/min |
120 m/min |
180m/min |
Economical speed |
60m/min |
90m/min |
150 m/min |
Shift capacity (*104m/8h) |
3 |
4.5 |
9 |
Transversely cutting precision |
±1 |
±1 |
±1 |
Transversely cutting scope (mm) |
500-9999 |
500-9999 |
500-9999 |
Slitting scope (mm) |
145-1800 |
160-1800 |
160-1800 |
Slitting precision (mm) |
±1 |
±1 |
±1 |
Workers |
8-11 |
8-11 |
8-11 |
