Specifications
1)Length as your requirement2)Width5-10m
3)single floor 3m, two floors 6m and three floors 9 m
4)Slope or flat roof
5)Safe

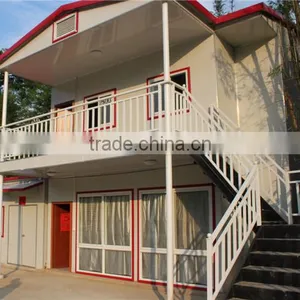

Buy House Online Prefabricated Luxury Homes
*Low cost---Low labor and material costs
*Long life---Durable about 10-15 years
*Easy assembly---One worker one day install 15-25 SQM
*Disassembly & Recycling use---Reused for more than 5 times
*Flexible layout---Layout adjusted according to your requirement
*Environment protection---Environment-friendly materials
*Safe & Stable frame---Light and flexible frames provide safe and fulfill requirements.
*Water-proof , Fire-proof , Wind-proof, Earthquake-proof
* Sound insulation and heat insulation

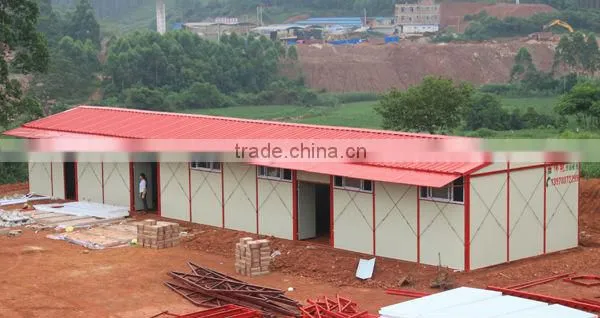

Modular House Extensive application
It is widely used in road, railway, and other wild temporary house, also in government project,business and others, such as office, headquarters, shop, dormitory, park, school, hospital, exhibition, and gas station.
Material of Prefabricated building as below:
| Steel frame/structure | Column | 1 floor columns:140x70mm H-beam 2 floor columns: 80x80x2.0mm square steel |
| A beam | 140x70mm H beam | |
| Herringbone beam(for double slope roof) | C80x40x1.9 | |
| Main beam( for single slope roof) | flat steel 80×40×2.0 or 100x50x2.0 or 120x60x2.0 as per house size | |
| Ring beam | 60x40x2.0mm flat steel | |
| Roof purlin | 60x40x2.0mm flat steel | |
| Floor purline | 100×40×2.0 C# steel | |
| Horizontal support | L50×3.0 mm | |
| Roof panel | Roof tile | 50mm EPS color steel sandwich panel/rock wool/glass wool |
| Wall panel | External/internal wall | 50mm EPS color steel sandwich panel/rock wool/glass wool |
| Accessory | Door | 40mm EPS sandwich panel/rock wool/glass wool |
| Window | PVC steel sliding window(115cmx100cm) ,the thickness of glass is 0.4cm | |
| Floor | plywood floor,15mm thickness(second floor use) | |
| nails, bolts, screws, glass cements | ||
Simple Installation Step:
Normally 4 workers for one installation team, only need simple tools for Portable building installation.One team can finish 60 sqm house in one days.
Technology date of accommodation house :
1)Wind against: 10-level wind
2)Earthquake against: 8 grades
3)Static load: 0.20 KN /m2; Live load: 0.3 KN/m2
4)Basic wind pressure: 0.35 KN /m2
5)Earthquake intensity, Fortification intensity: 8 degrees for single story
6)Damp proof,flame proof
7) Easy assemble,2-3 persons can install about 100 square meter per day.

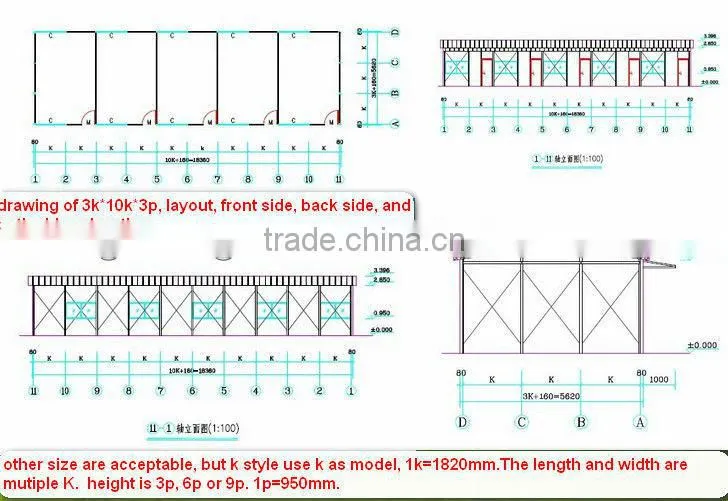

Design Drawing:
Different design for Prefabricated homes is acceptable.

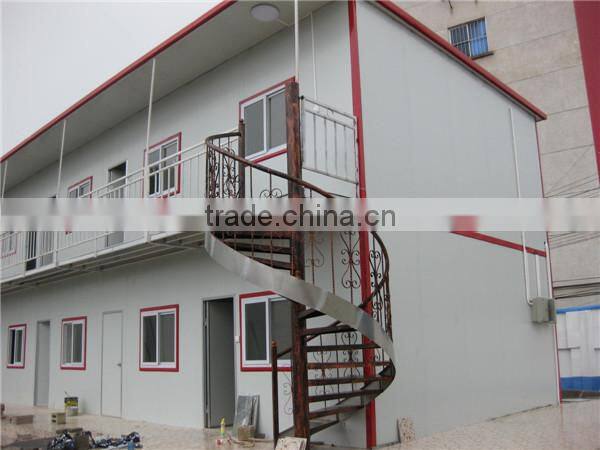

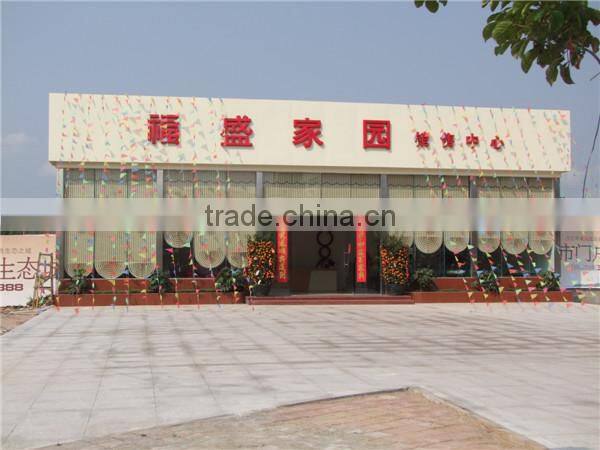

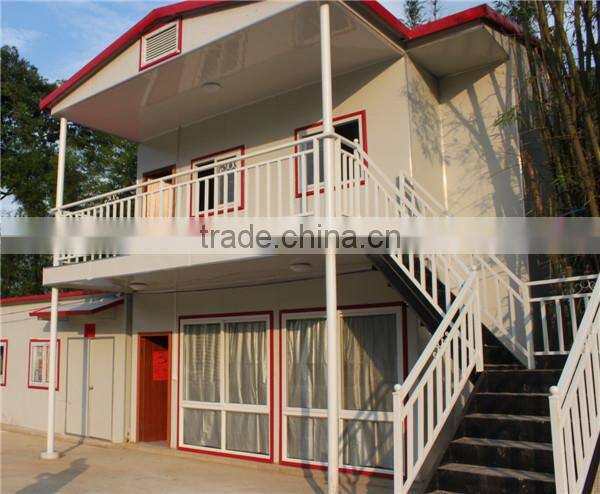

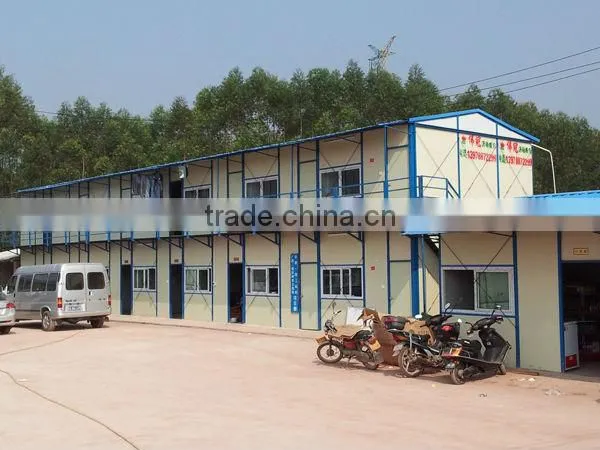

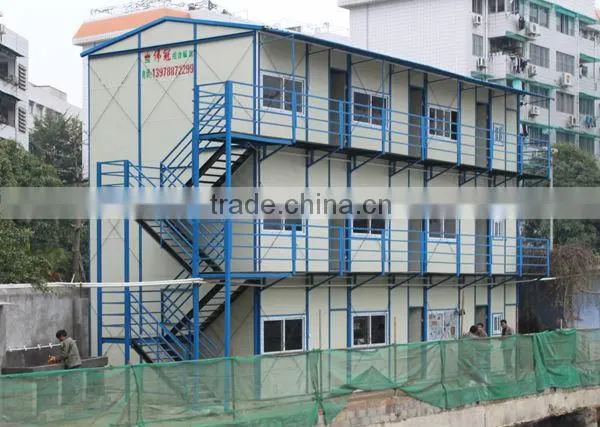

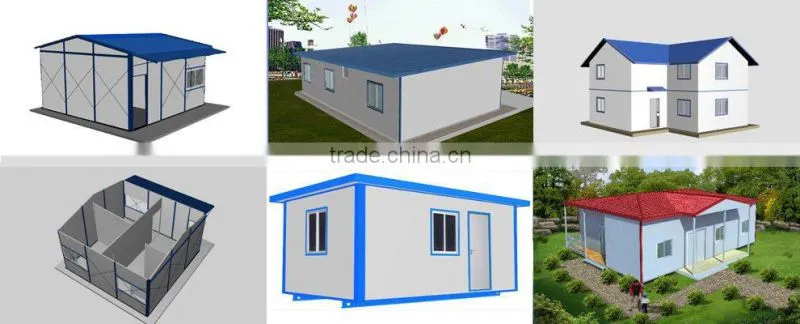

Related modular houses as follows:

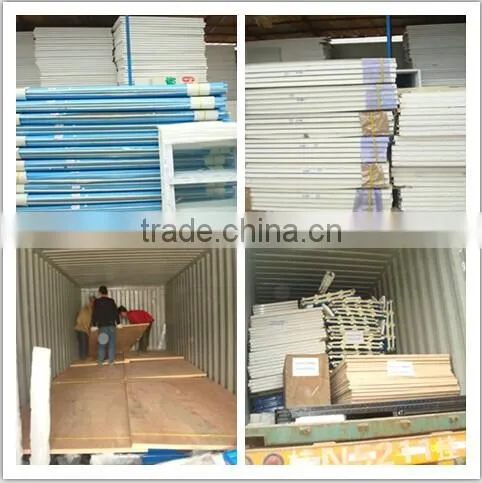

Packaging & Shipping
Who we are?
1)Located in Nanning Area, covered 8000 Meters. Welcomes visit our Factory.
2)Owned own Brand "Wei Guan".
3)6 office in different city of China.
4)500 employees and 45 management 6 profession senior technicians.
5)Over 10 Exporter modular houses consultants, 2 After Service Staffs.
6)Certificates Obtained :SGS
Your Success, Our Glory:
Our aim is to help customers to make more profits and realize their goals.
Through a lot of hard work, we establish a long-term business relationship with so many customers all around the world, and achieve win-win success. We will continue to do our best effort to service and satisfy you! Sincerely welcome you to join us!

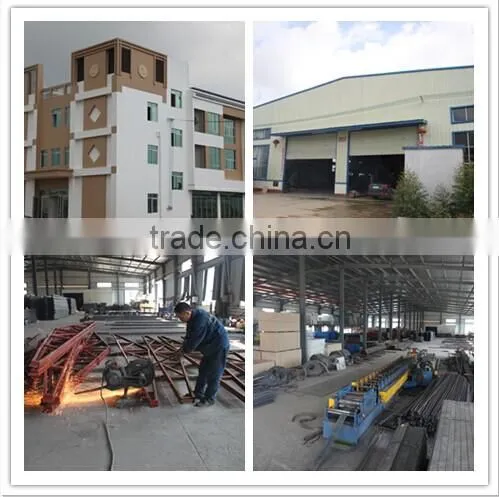

Our Factory
Why choose us?
1)Annual production capacity has exceeded 0.5 million square meters.
2)Quick Delivery: 7-15days.
3)Steady product quality ,Strict quality control.
4)OEM / ODM available.
5)6Designers with 10 years' experience for modular homes .
6)As our agent: charge Free for drawing design ,catalogue and gift, etc.
7)Having cooperated with some brands.
Certificate

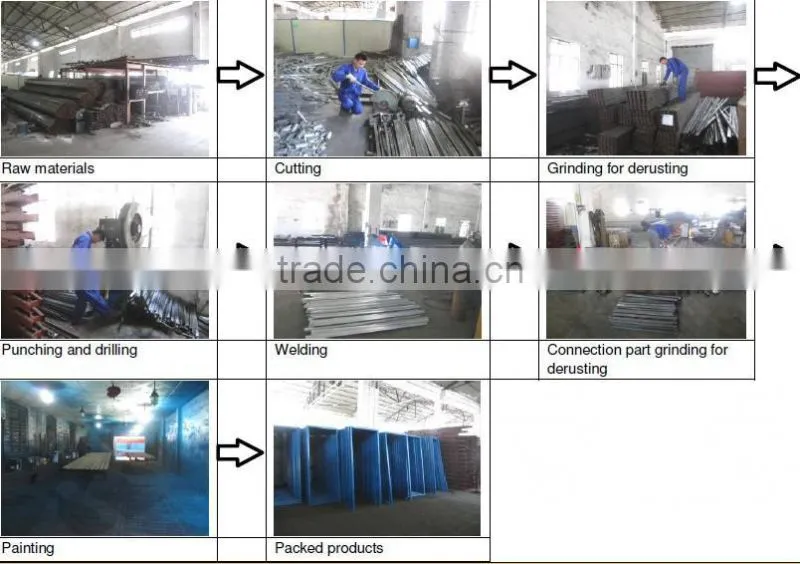

Manufactured Houses Production Process
Our Services
1) Design & Engineering
Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project.
Simple design service is free of charge to all clients to ensure customer satisfaction and compliance with local standards.
We look forward to delivering exceptional designs and advice for your project.
2) Installation supervision and after-sales service
our professional workers conduct assembling guide or technical support for you on video. We're at your service!
3) Arrange Shipping and good package without wood material
can be transported and shipped through worldwide. We can arrange the shipping with competitive sea freight to your port.
