Pre engineered steel building villa
Precast home/Modular home/Prefabricated house design/prefab accommodation/precast dormitory/modular home/ modular house building/prefabricated office/ modular office/ modular classroom/Prefabricated restaurant.
Advantage: Safe, Utility and Firm, Easy to assemble and disassemble, Easy to transport, Economy, Comfortable, Environmental.
Main material: 50/75MM EPS sandwich panels (rock wool, glass wool can be choose, panel thickness can be choice.) + light steel frame. (buyer need make concrete foundation).
Design: Design on your request.
Application:
1. Widely used in building site, such as road project, railway, real estate, bridge project, dam project, power station, and mining site and so on..
2. Widely used for factory.
3. Widely used for family house for low income house, dormitory, accommodation, apartment, kitchen and so on .
4. Widely used for temporary house, such as temporary hospital, temporary classroom, wild temporary houses etc.
5. Widely used for gas station.
6. Widely used for villa.
Technology date:
- 1. Wind against: 10-level wind
- 2. Static load: 0.20 KN /m2; Live load: 0.3 KN/m2
- 3. Basic wind pressure: 0.35 KN/m2
- 4. Earthquake intensity, Fortification intensity: 8 degrees for singly story
- 5. Damp proof & flame proof
- 6. Easy assemble, 2-3 persons can install about 100 square meter per day.
Assembly Period:
5 people in one team. The workers must accept training first.
100-150m2 can be finished installation per sunny day.
Material list as below:
Steel structure frame |
Column |
#C steel 80×40×1.9 mm |
A beam |
C80×40×1.9,(C80×40×1.9),L40×3.0 |
|
Herringbone beam |
C80×40×1.9,(C80×40×1.9),L40×3.0 |
|
Ground beam |
C80×40×1.5 mm |
|
Ring beam |
C80×40×1.5 mm |
|
Roof purlin |
L40×3.0 mm |
|
Horizontal beam |
L40×3.0 mm |
|
Control rod |
φ8 |
|
Steel stairway |
steel structure stair,3mm steel board |
|
Railing |
60×40 flat steel,L40×3.0,28 square steel,35 square steel |
|
Floor |
Second floor |
15mm polywood floor |
Roof panel |
Roof tile |
20mm PU tile/50mm EPS/ 50mm rock wool/ 50mm glass wool |
Wall panel |
wall |
50mm EPS sandwich panel/50mm rock wool/ 50mm glass wool |
Accessory |
Door |
4cm EPS sandwich panel |
Window |
plastic steel sliding window(1740cmx925mm) ,the thickness of glass is 4mm |
|
nails, screws, bolts, glass cement | ||

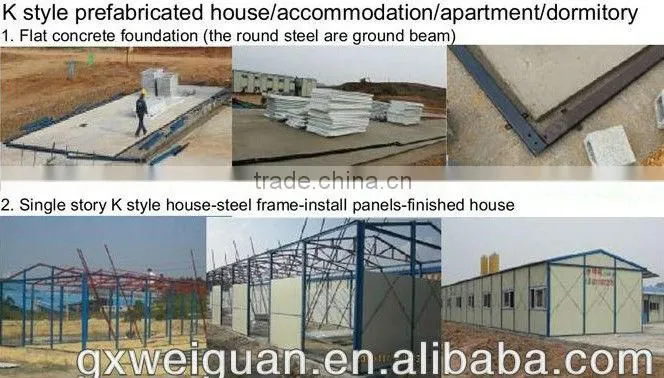

Install step as below:
