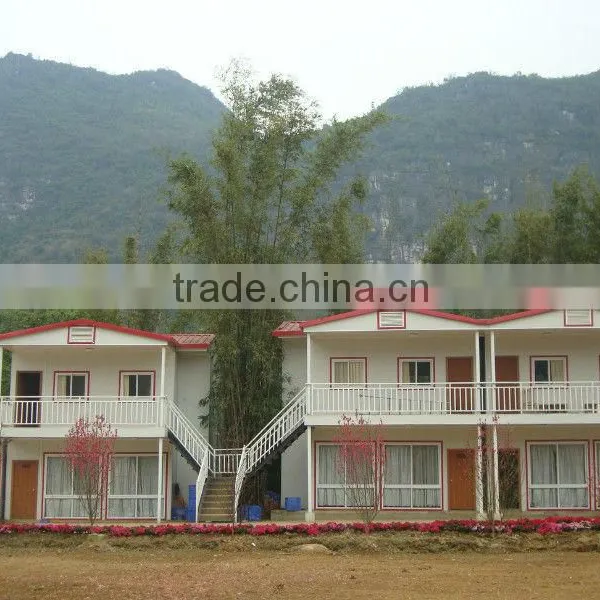

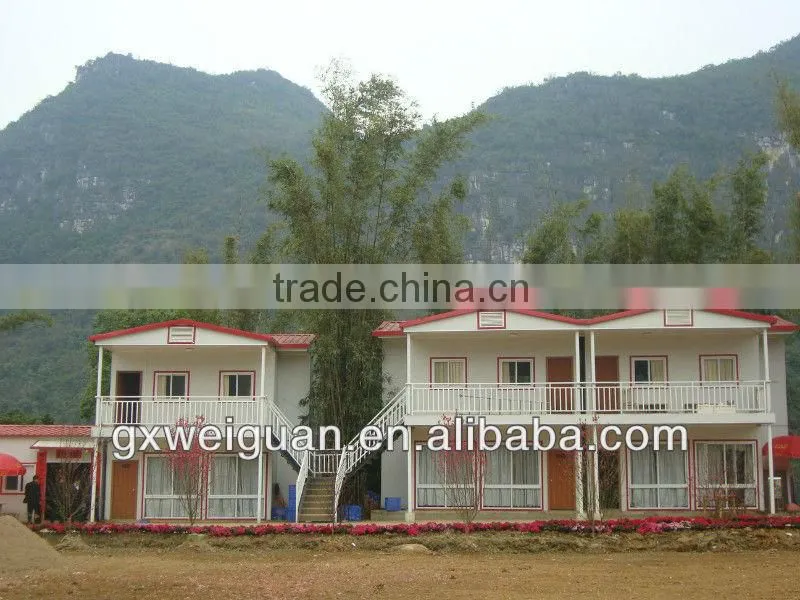

Modern precast cheap villa
Advantage: Safe, utility and firm, easy to assemble disassemble, easy to transport, attractive price and comfortable rooms.
Main material: EPS sandwich panels (rock wool, glass wool can be choose)+ light steel frame. (Buyer need make concrete foundation)
Design: Different design is acceptable.
Application: It is widely used in building site, such as road project, railway, real estate, bridge project, dam project, power station, and mining site and so on. Also the house can be used for family house for low income house, dormitory, accommodation, apartment, kitchen, classroom and temporary house, temporary hospital, gas station, wild temporary houses etc.
Technology index:
Wind against: 10-level wind
Earthquake against: 8 grades
Static load: 0.20 KN /m2; Live load: 0.3 KN/m2
Basic wind pressure: 0.35 KN /m2
Earthquake intensity, Fortification intensity: 8 degrees for single story
Material list of Modern precast cheap villa
| Steel frame/structure | Column |
1 floor columns:140x70mm H-beam 2 floor columns: 80x80x2.0mm square steel |
| A beam | 140x70mm H beam | |
| Herringbone beam(for double slope roof) | C80x40x1.9 | |
| Main beam( for single slope roof) | flat steel 80×40×2.0 or 100x50x2.0 or 120x60x2.0 as per house size | |
| Ring beam | 60x40x2.0mm flat steel | |
| Roof purlin | 60x40x2.0mm flat steel | |
| Floor purline | 100×40×2.0 C# steel | |
| Horizontal support | L50×3.0 mm | |
| Roof panel | Roof tile | 50mm EPS color steel sandwich panel/rock wool/glass wool |
| Wall panel | External/internal wall | 50mm EPS color steel sandwich panel/rock wool/glass wool |
| Accessory | Door | 40mm EPS sandwich panel/rock wool/glass wool |
| Window | PVC steel sliding window(115cmx100cm) ,the thickness of glass is 0.4cm | |
| Floor | plywood floor,15mm thickness(second floor use) | |
| nails, bolts, screws, glass cements | ||
| Service life: 10years-15years | ||
| Static load: 0.20 KN /m2 ; Live load : 0.3 KN/m2 | ||
| Basic wind pressure: 0.35 KN /m2 | ||
|
Earthquake intensity, Fortification intensity: 8 degrees for single story | ||
