Product Details
Place of Origin: | Shanghai, China | Brand Name: | SHILIN | Model Number: | SBTP1-824R |
Product Description
china wholesale two row distribution with high quality
Function of Distribution box: leakage of electricity, overload, short-circuit.
Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings,ect.
Features:

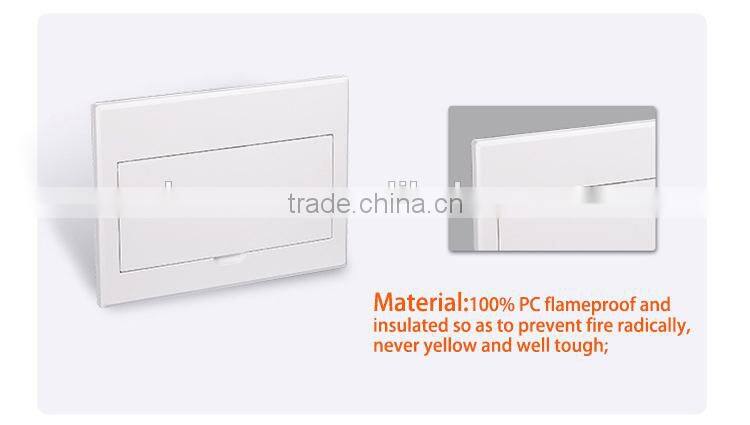

1.High impact resistance material:thick iron base , PC cover, which is flameproof and
insulated so as to prevent fire radically,never yellow and well tough.

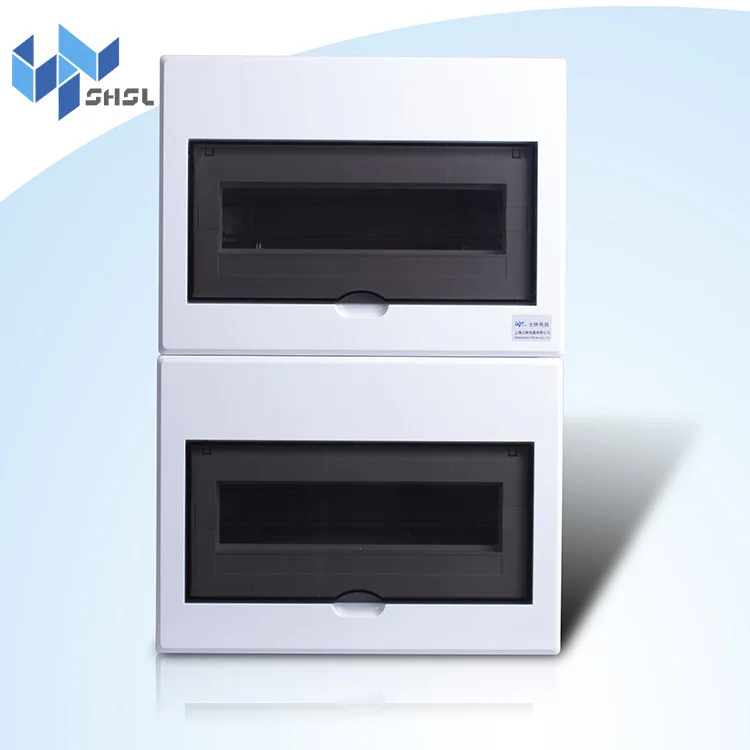

2.white opaque and transparent black cover are free for choice

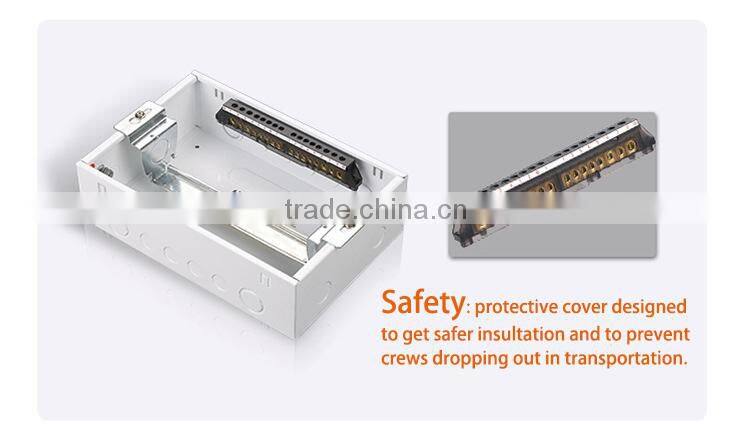

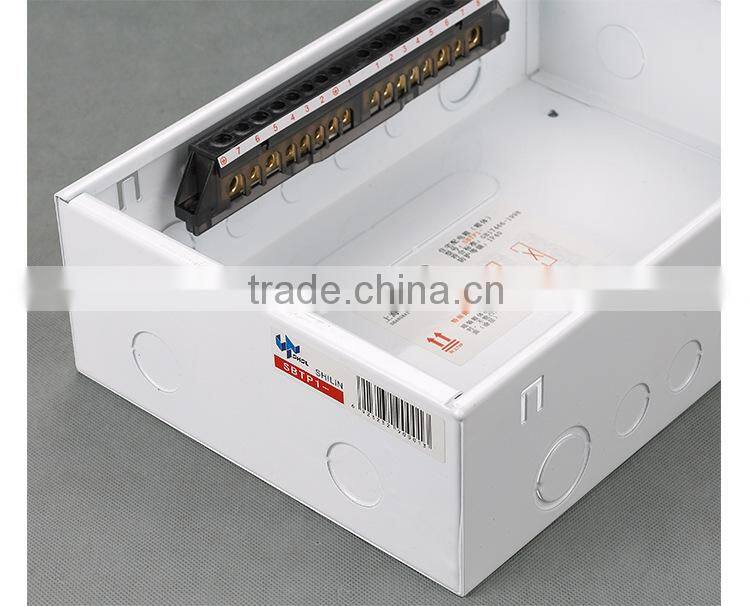

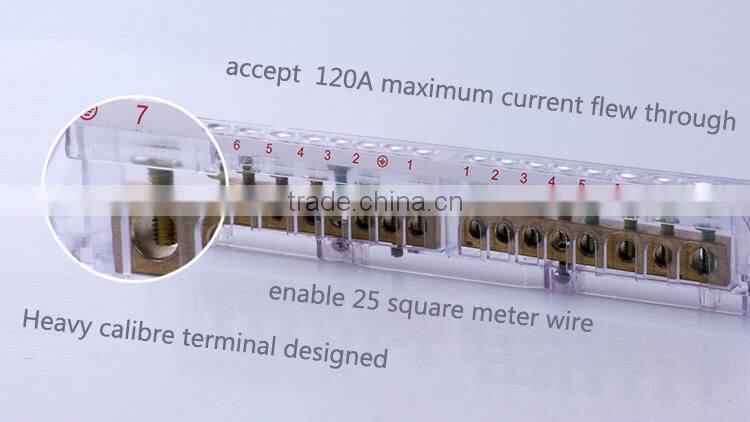

3.Safe and full material copper terminal with the safe cover disigned helps prevent
electric shock when installation also prevent the crews dropping out in transpotation.
(exclusive patent)

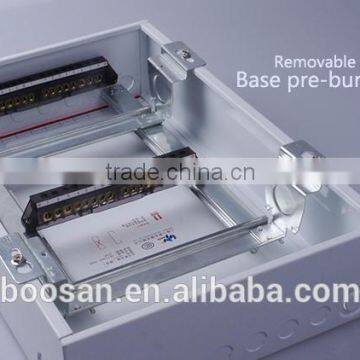

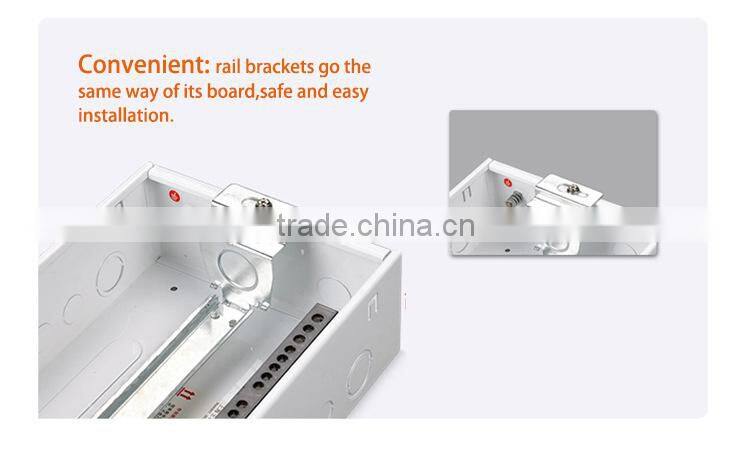

4.Adjustable din-rail goes the same way with the board so as to solve the problem of the
base buried too deep.
5.Ultra-large space box for moving and easy wiring
6.Flush mounting and surface mounting available

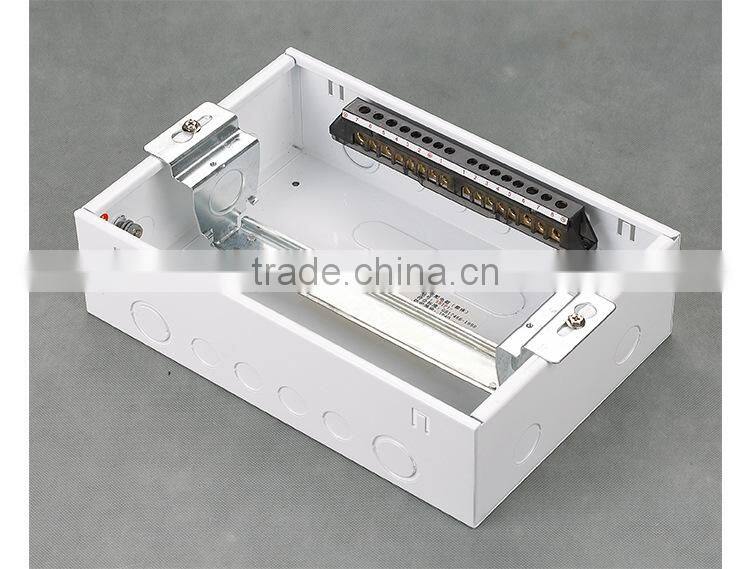

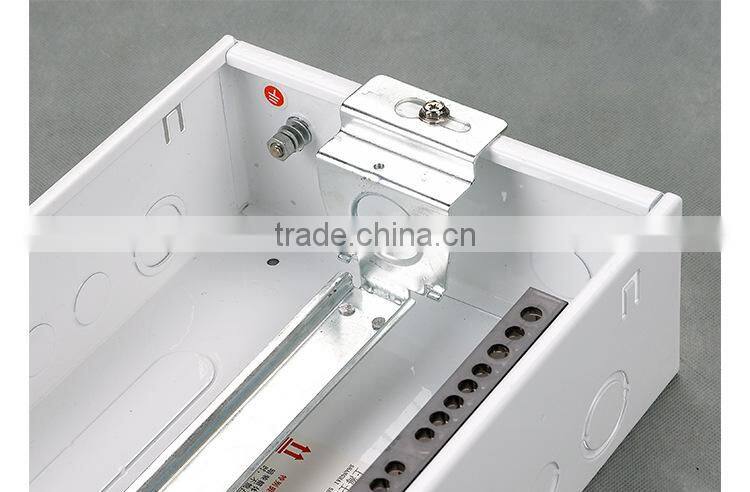

7.The metal base with grounding crew
8.Most full range:from 12 way to 60 way utmost,single row to 3 rows.
Advantages:
1)Easy identification
2)Easy opening
3)Easy wiring
4)Easy adjustment
5)Long life for using
OEM/ODM order is welcome.Availabe to make customer’s logo under authorization.
Regarding OEM/ODM:
1. Make the box thicker:Stardard box 1mm thick iron,we can make 1.2mm,1.5mm.
2. Make the box deeper:standard box 85mm deep,we can make 120mm,150mm,200mm...etc.
3. Change the color of the cover:standard is transparent black and opaque white.
Light yellow,dark yellow, and other color is available,MOQ is 1000pcs for each item
4. Knockable holes:reduce or increase the quantity of knockable holes,change the size and location of the knockouts.
5. Produce according to customer’s drawing.
Regarding Brand/Logo:
1. silk-print customer's brand free of charge,first must get customer’s authorization.
2. Make colorful package with customer's logo,MOQ is 3000pcs for each item.

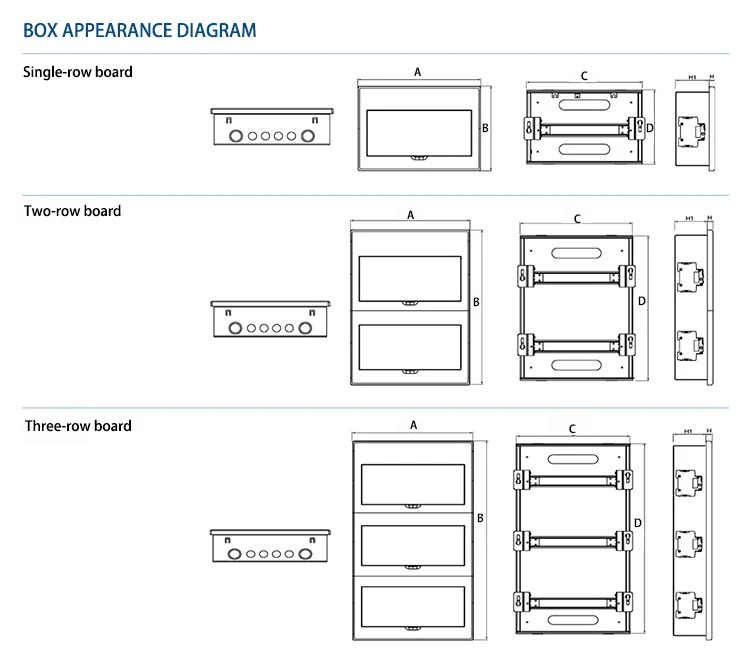

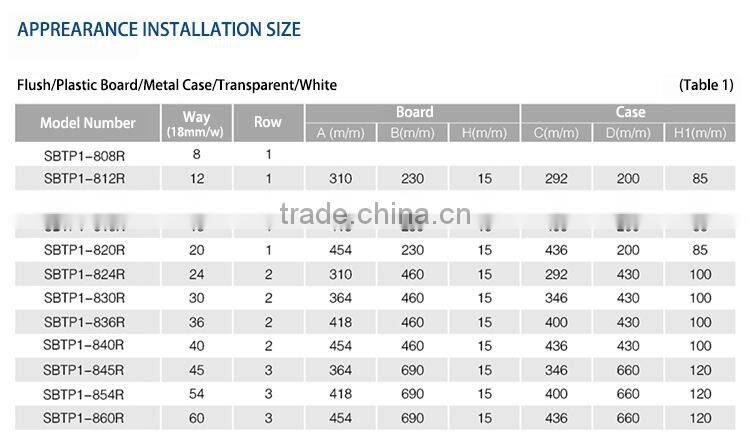

MCB distritbution box size | Single row:12,15,18,20ways;two rows:24,30,36,40ways;three rows:45,54,60 ways; | |
Rated voltage | AC400V(+-20%)50~60HZ | |
Rated current | 8~20way :63A ; 24~60way :125A; | |
Open direction | The door opened up 90 angle; | |
Base | Insulation | PC excellent flame retardant fire extinguishing material; |
Cover level | Transparent/white; | |
Standard | IEC 60439.3 GB17466.1-2008 GB17466.22-2008; | |
Protective level | IEC 60529,IP40; Second level of protection indirect touch(insulation cover installed on fixed crew); | |
Fire resistant and heat capacity anomaly | IEC 695-2-1 standard, 650 ℃/30 second; | |
Base | Mounting | Flush or surface mounting; |

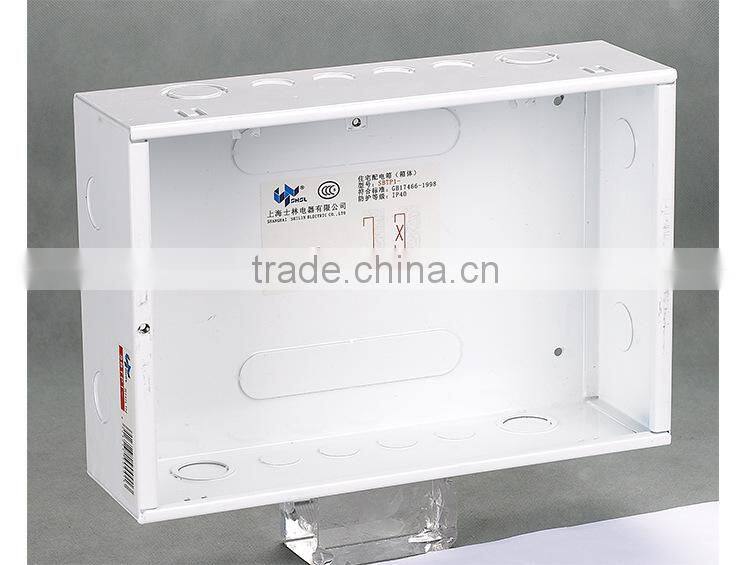

Base material | Excellent cold-rolled steel sheet and electrostatic spraying; | |
Unique structure | Crashworthiness,easy installation, large adjustment range and able to mounting in thin wall;
Case can be inverted;
Safety netual and earth copper terminal designed get the exclusive patent;
Perfect solution of horizontally tilting and base buried too deep in the wall;
Use TH32 standard din rail;
The integration of the bracket enalbles installing circuit breaker outside the box;put the assembly into the base.
Large-area A-B-C- phase connection terminal; | |
Accessories | Stickers on front cover:to mark the control loop; Case include copper N&E terminal;
2 circuit baffle to fullfil the rest space; |
Product name and specification | Ways | Quantity |
One row MCB distribution box | 12,15,18,20 | 200 pcs |
Two row MCB distribution box | 24,30,36,40 | 50 pcs |
Three row MCB distribution box | 45,54,60 | 20 pcs |
Offer quick and professional response !
