Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > LCD Display Solar Charge Controller LPF-2450D

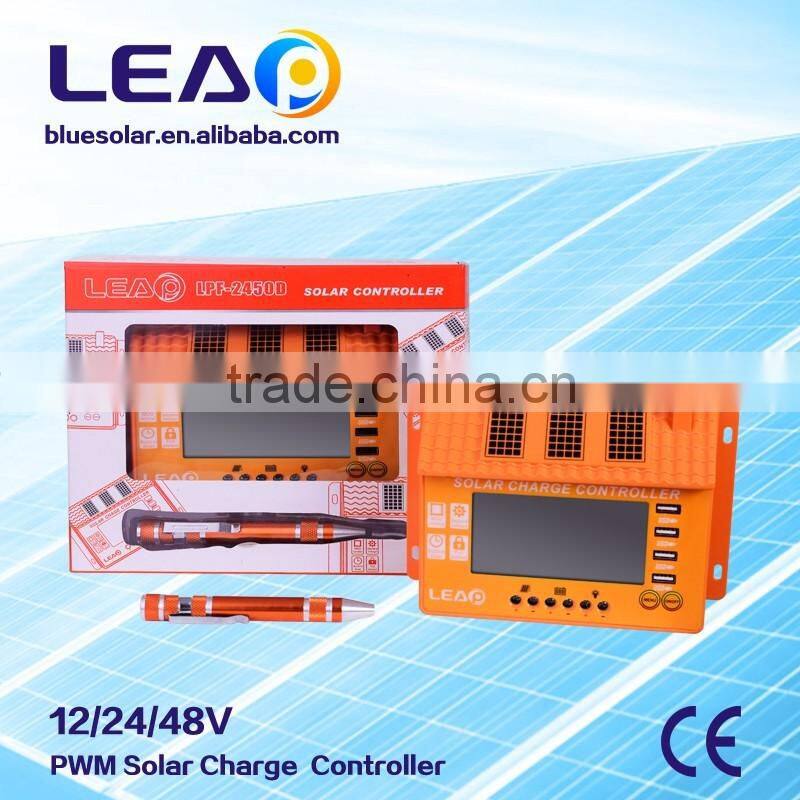

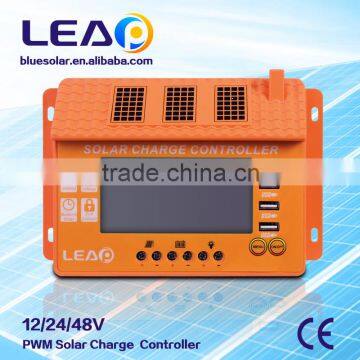

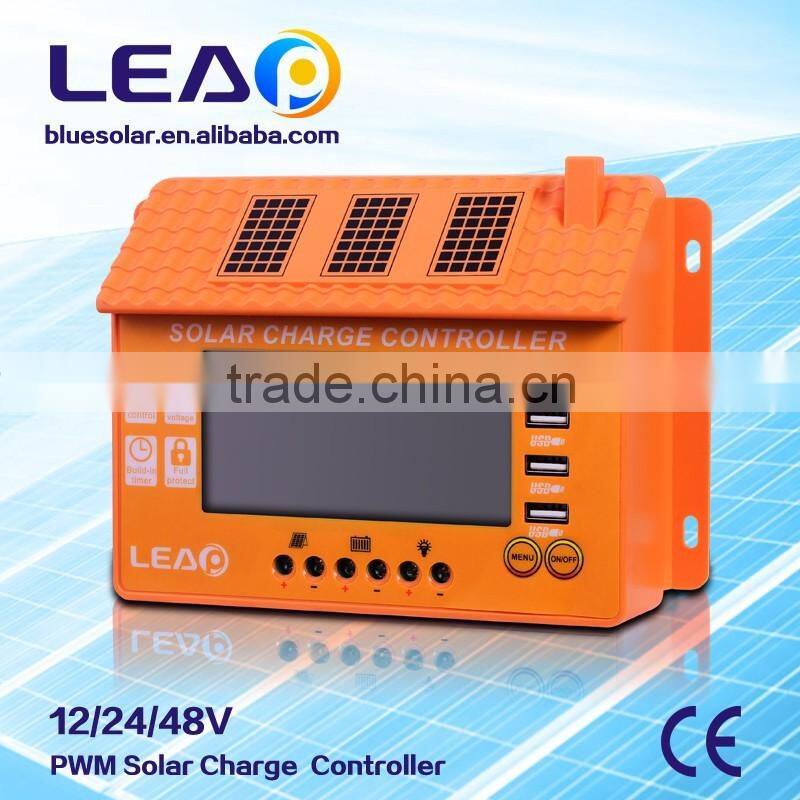

LCD Display Solar Charge Controller LPF-2450D

Name: LCD Display Solar Charge Controller LPF-2450D
Brand: LEAP
SKU: 105968801
Availability: InStock

LCD Display Solar Charge Controller LPF-2450D thumbnail-1

LCD Display Solar Charge Controller LPF-2450D thumbnail-2

LCD Display Solar Charge Controller LPF-2450D thumbnail-3

LCD Display Solar Charge Controller LPF-2450D photo-1

LCD Display Solar Charge Controller LPF-2450D photo-2

LCD Display Solar Charge Controller LPF-2450D photo-3

US$ 31.5 - 32 MOQ: 1000 Sets

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

LEAP

Model Number:

LPF-2450D

Contact Supplier Request Quote Chat Now

Zhejiang Photovoltaic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name LEAP

Model Number LPF-2450D

Application Charger Controller

Rated Voltage Other, 12/24V

Maximum Current 50A

Model	LPF-2450D
Nominal System Voltage	12/24V auto
Rated current	50A
Max.PV open circuit voltage	≤ 50V
Float charging voltage	13.8V/27.6V
Low voltage reconnect voltage	12.5V/25V
Low voltage disconnect voltage	10.7V/21.4V
USB output port	5V/3A
NO load loss	≤20mA
Loop voltage drop	≤170mA
Charge mode	PWM
Temp. compensation	–4mV/Cell/℃
Working temperature	–35℃~+60℃
Storage temperature	–35℃~+70℃
Humidity temperature	≤95% N.C.
Display	N/A
Dimension	19513555mm
Color carton dimension	24020060mm
Outer carton dimension	495420320mm
Net weight	510g
With color box weight	692g
Carton weight	14.76kg

1.Molded case USES high-grade ABS plastic products, high strength, impact resistance high ignition point, anti-aging, improve the safety level.

2. A new thermal design, efficient heat dissipation, prolong service life.

3.Has the overcharge protection, discharge protection, electronic short circuit protection, overload protection, reverse connection protection battery, solar battery reverse connect protection.

4.Using the battery discharge rate characteristics modified discharge control.

5.Main circuit adopted tandem PWM charging, the charging circuit is using diode charging circuit, the voltage is reduced nearly half, charging efficiency is 3% ~ 6% of PWM high, increase the time, electricity charge discharge restore ascension, normal straight charger, floating mode of automatic control system has a longer service life.

6.Intuitive LCD screen displays the current state of battery, let users understand the usage.

7.Automatic identification of 12 v / 24 v controller.
