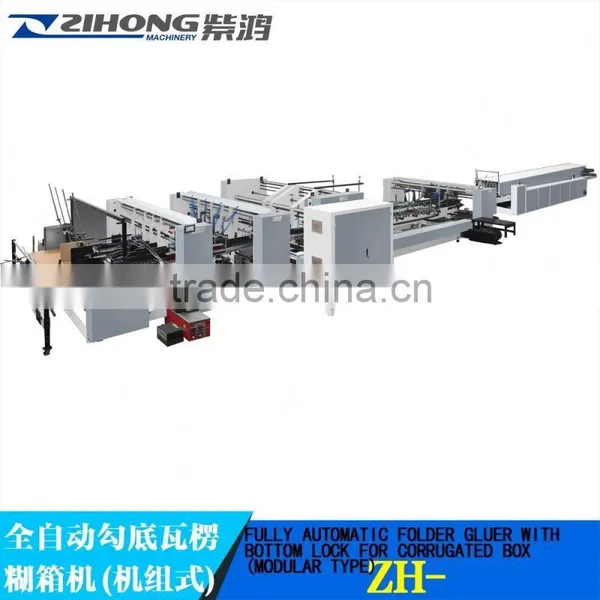

Help CenterZH-1450PC High Speed Paper Box Folder Gluer Sale On Modular Type for 4 6 Box
Related Products
-
ZH-1450PC Crash Lock Bottom Folding Gluing Sweet Box Making Modular Type for 4 6 BoxUS$ 1,000,000 - 1,000,000MOQ: 1 Set -
ZH-1450PC High Speed Cardboard Gluer Folder On Modular Type for 4 6 BoxUS$ 1,000,000 - 1,000,000MOQ: 1 Set
-
ZH-1450AC Good Price Carton Box Folder Gluer Machine Group Type 4 6 Corner BoxUS$ 45,693 - 45,693MOQ: 1 Set
-
ZH-1450AC Cheapest Paper Box Folding Machine Group Type 4 6 Corner BoxUS$ 45,693 - 45,693MOQ: 1 Set
-
ZH-1050PC Corrugated Paper Folding Gluing MPChine for Making Fruit Carton Case for 4 6 Corner BoxUS$ 45,693 - 45,693MOQ: 1 Set
Machine Characters
1.Driving by synchronous belt,ensure smooth and accurate running
2.Inverter driving,stable and power saving
3.Use tooth bar adjust(for higher configuration use electric adjust),easy operate
4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled
suction belt),to keep the feeding stable.
5.Special three plate prefolding as optional
6.Two upper glue device and two lower glue device ,for different kind gluing.
7.Automatic counting and kicking ,quantity can preset.
8.Conveyer pressure adjustable according to the box to ensure best quality
Machine Configuration
1)Main motor:TECO Taiwan
2)Inverter:Siemens
3)Timing belt and pulley:Optibelt German
4)Bearing:NSK
5)Main axis:Taiwan chorme plated steel bar
6)Wall thickness:20mm tempered
7)Feeding belt:Habasit Switcherland
8)Transfer belt:NITTA Japan
9)Plain belt:NITTA Japan
10)Low voltage apparatus:Omron/Fuji
11)Fasten bolts:Level 12.9 Taiwan
Optional Configuration
12)High frequency Plasma
13)Yaskawa servo system(for 4/6 corner box)
14)HHS glue sprary system (for 4/6 corner box)

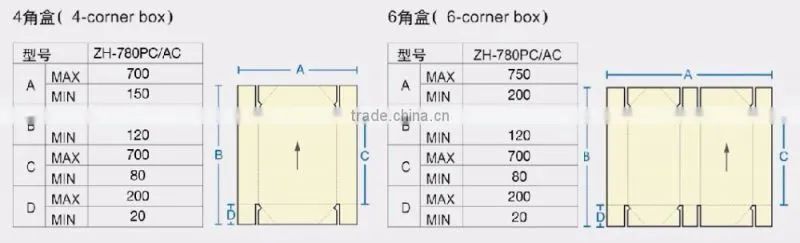

For 4-corner,6-corner box
Model |
ZH-1450PC |
Suitable material |
Card board,EB flute corrugated board |
Feeding method |
Automatic continuous feeding |
Max mechanical speed |
260m/min |
Overall dimension |
17000*2350*1650mm |
Weight |
12T |
Power consumption |
20.5KW |
Warranty Service:
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During
this period, the seller will offer free maintenance and free spare parts that caused by the machine’s quality,
but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not
covered by any warranty.
